Innovative Packaging Automation Machinery

EndLine designs and implements post-handling and packaging automation systems. We have chosen the most well-recognized packaging machine brands in Europe, so we can offer you the right solutions, machines and lines.

Become a sales partner

Our machines

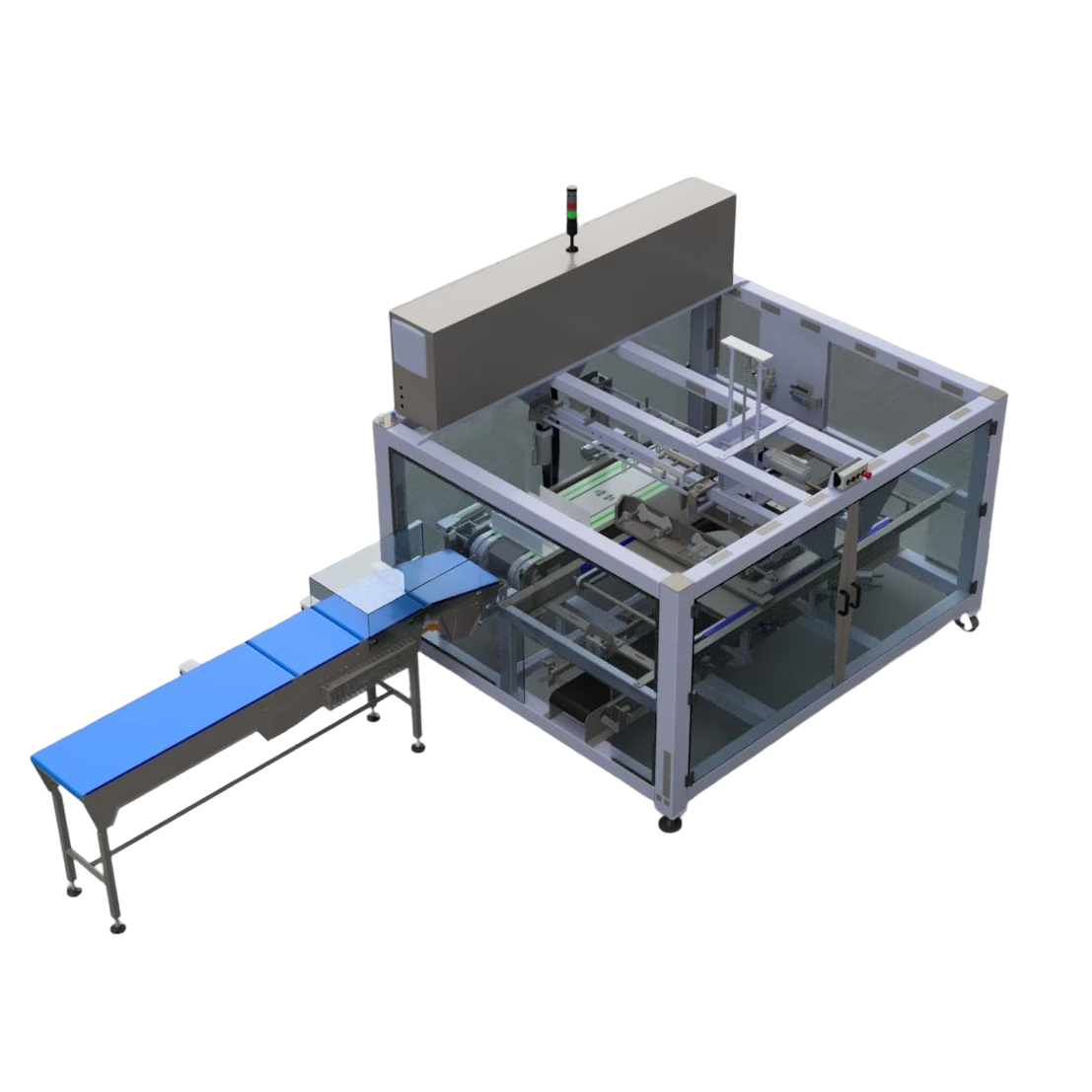

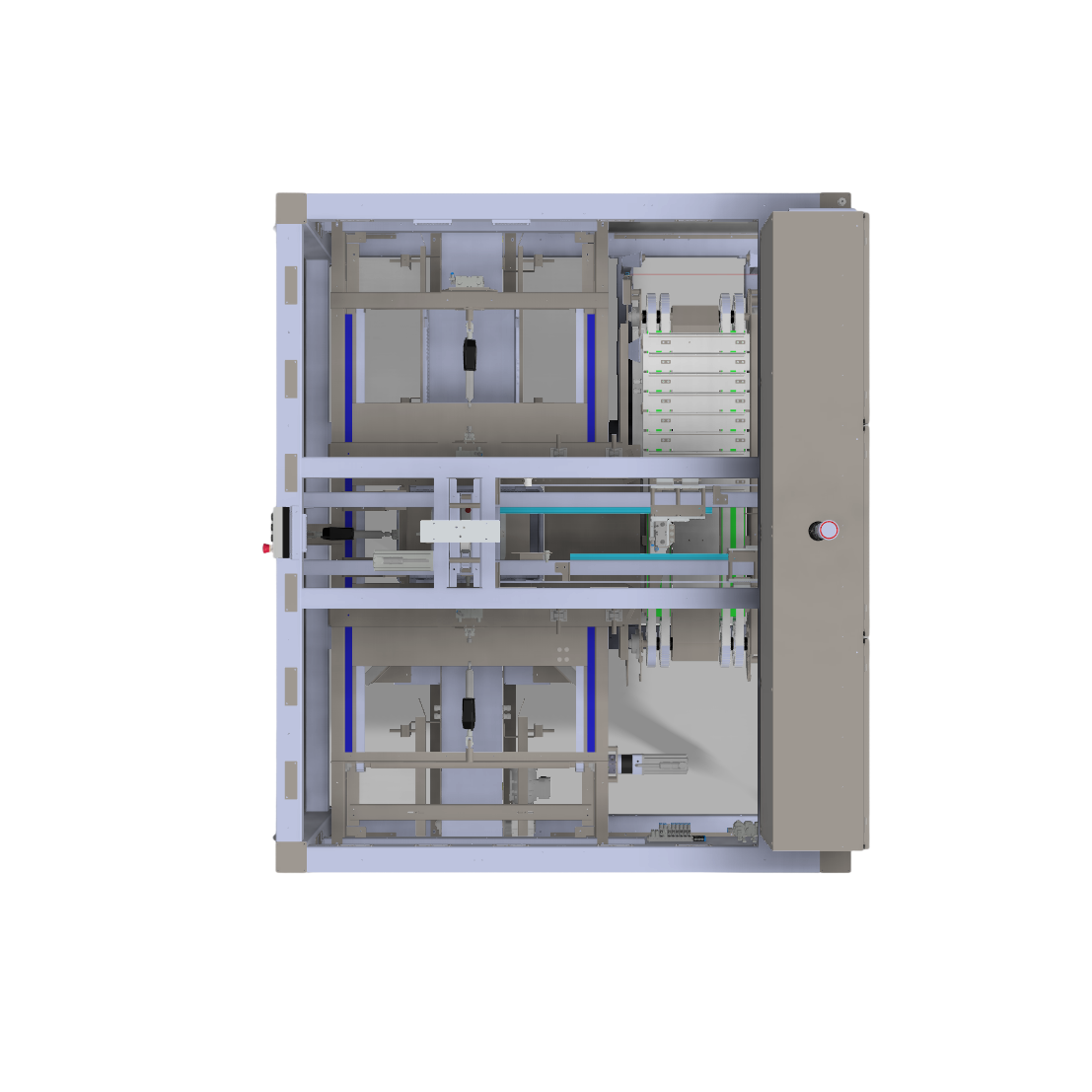

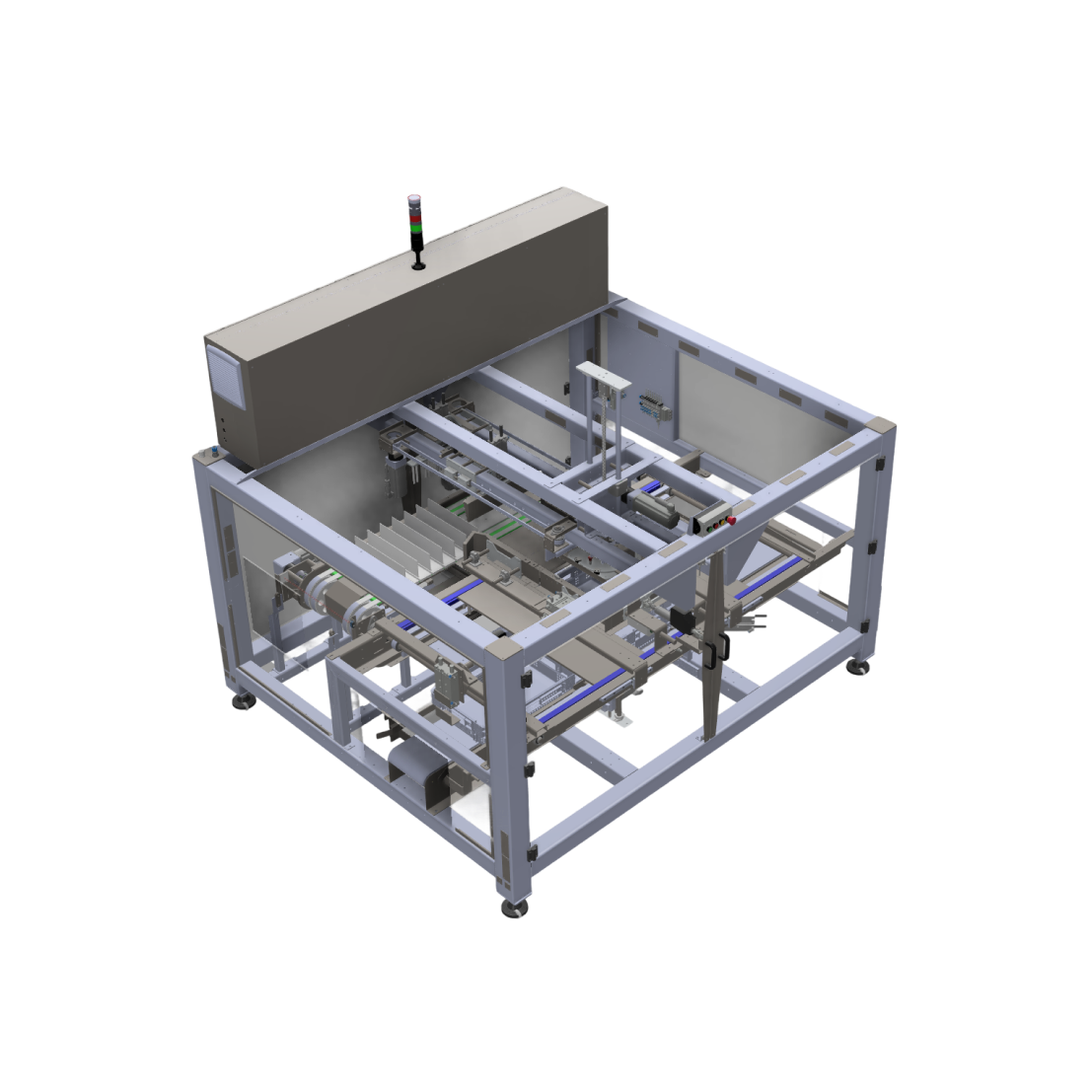

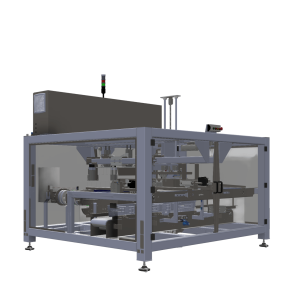

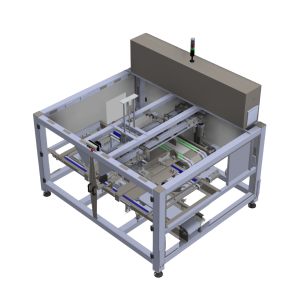

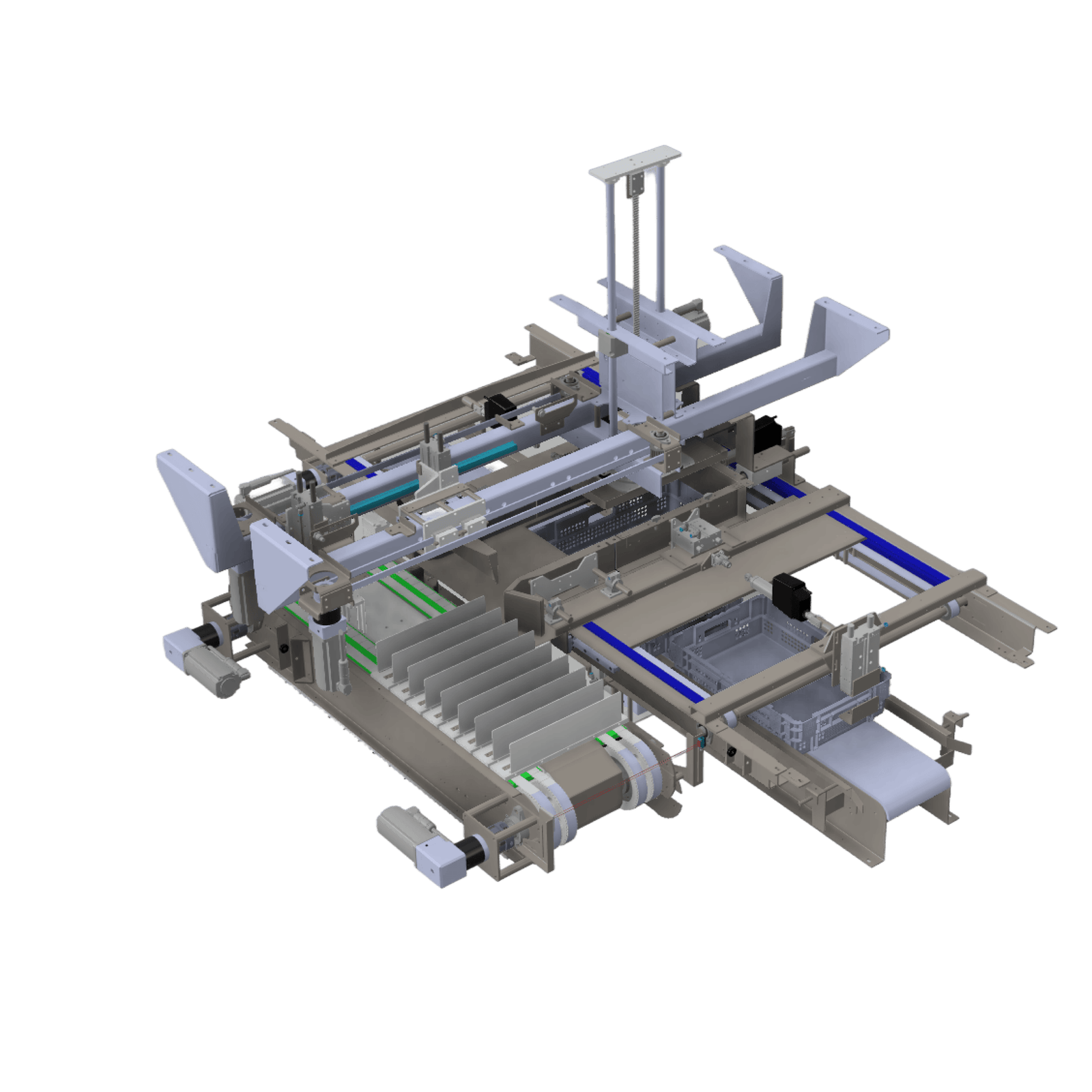

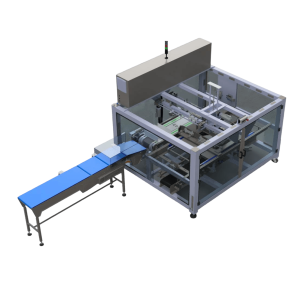

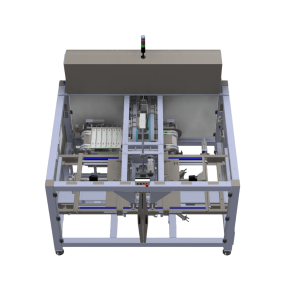

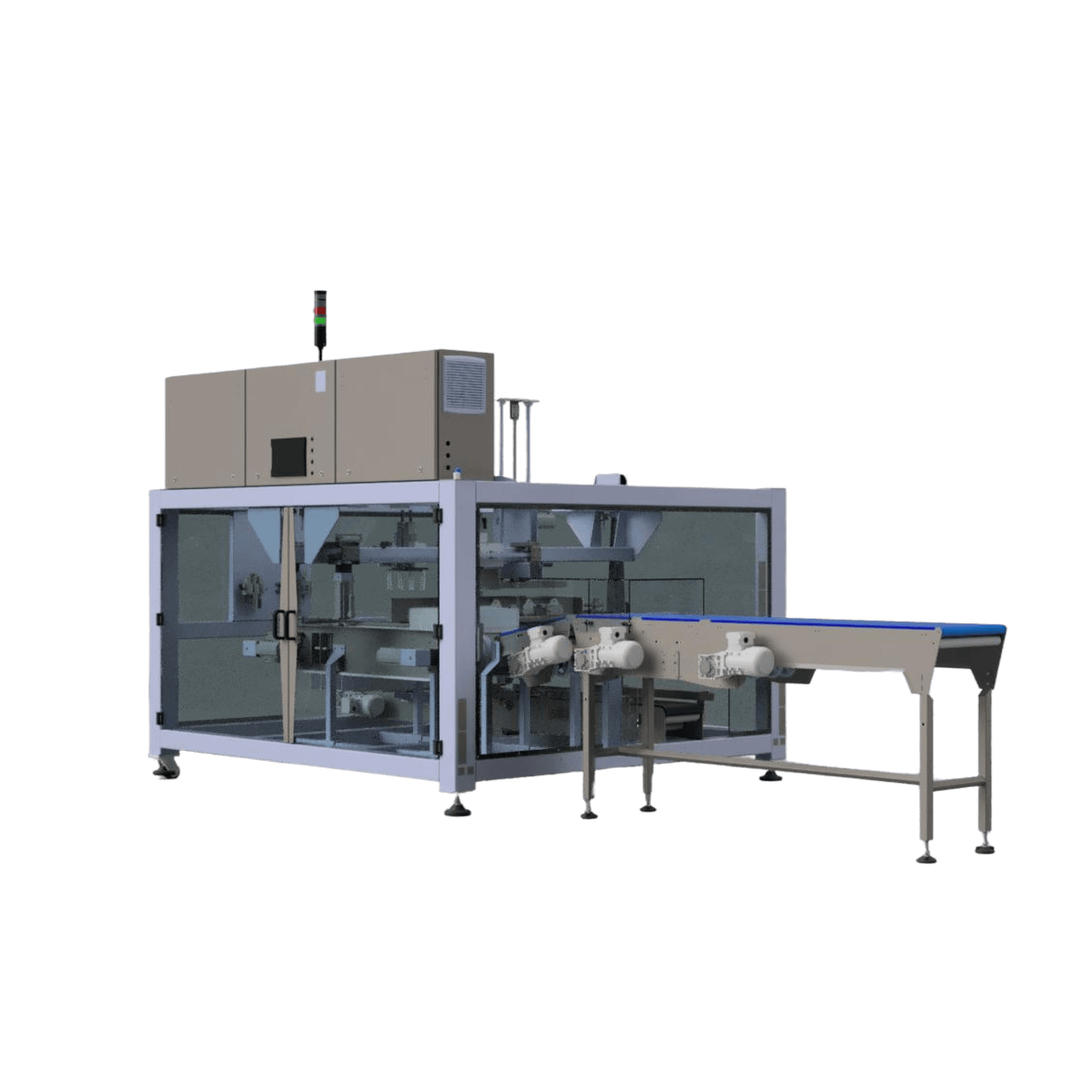

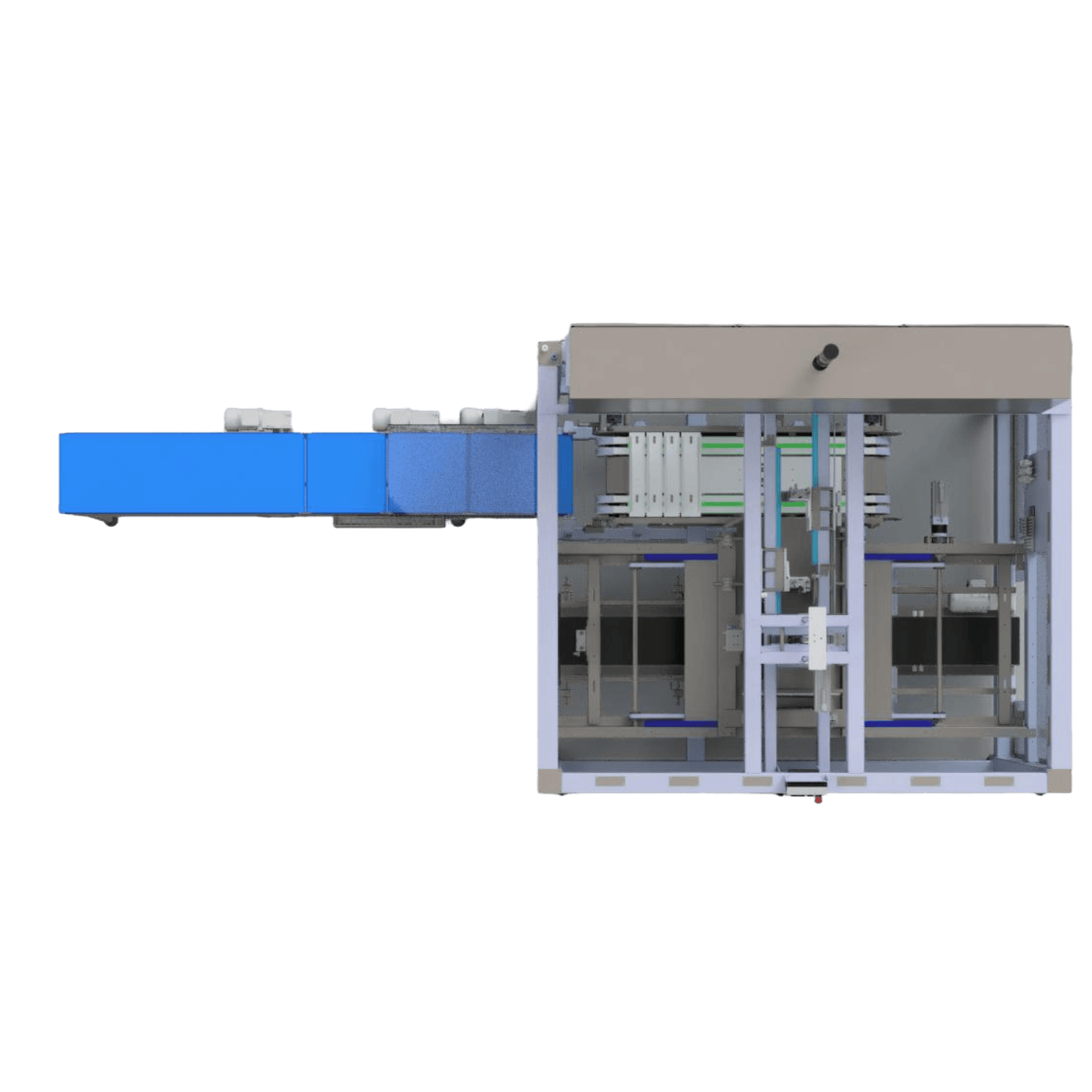

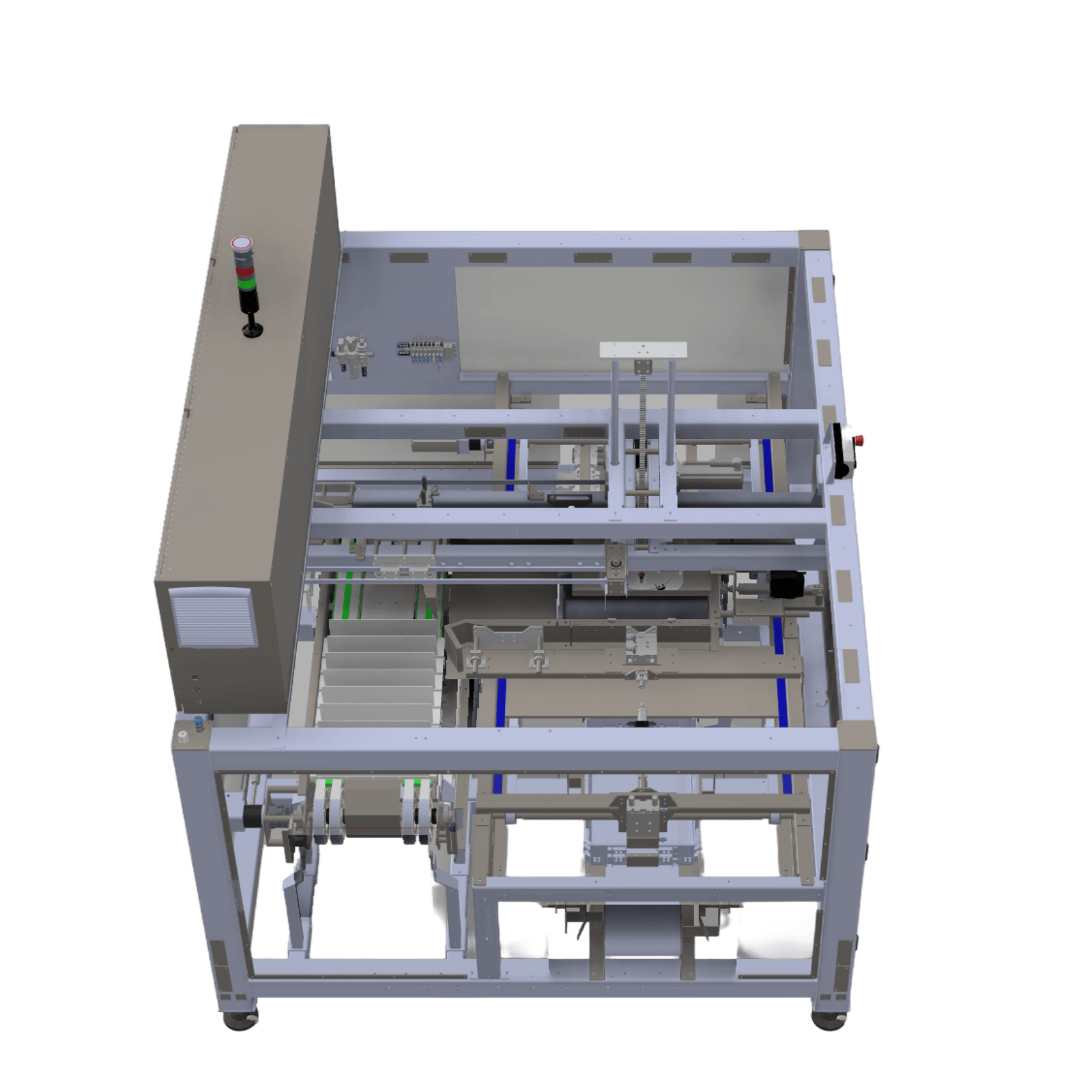

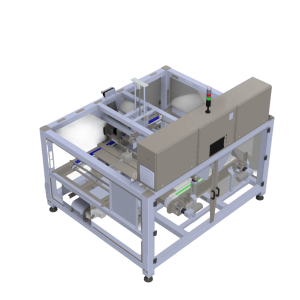

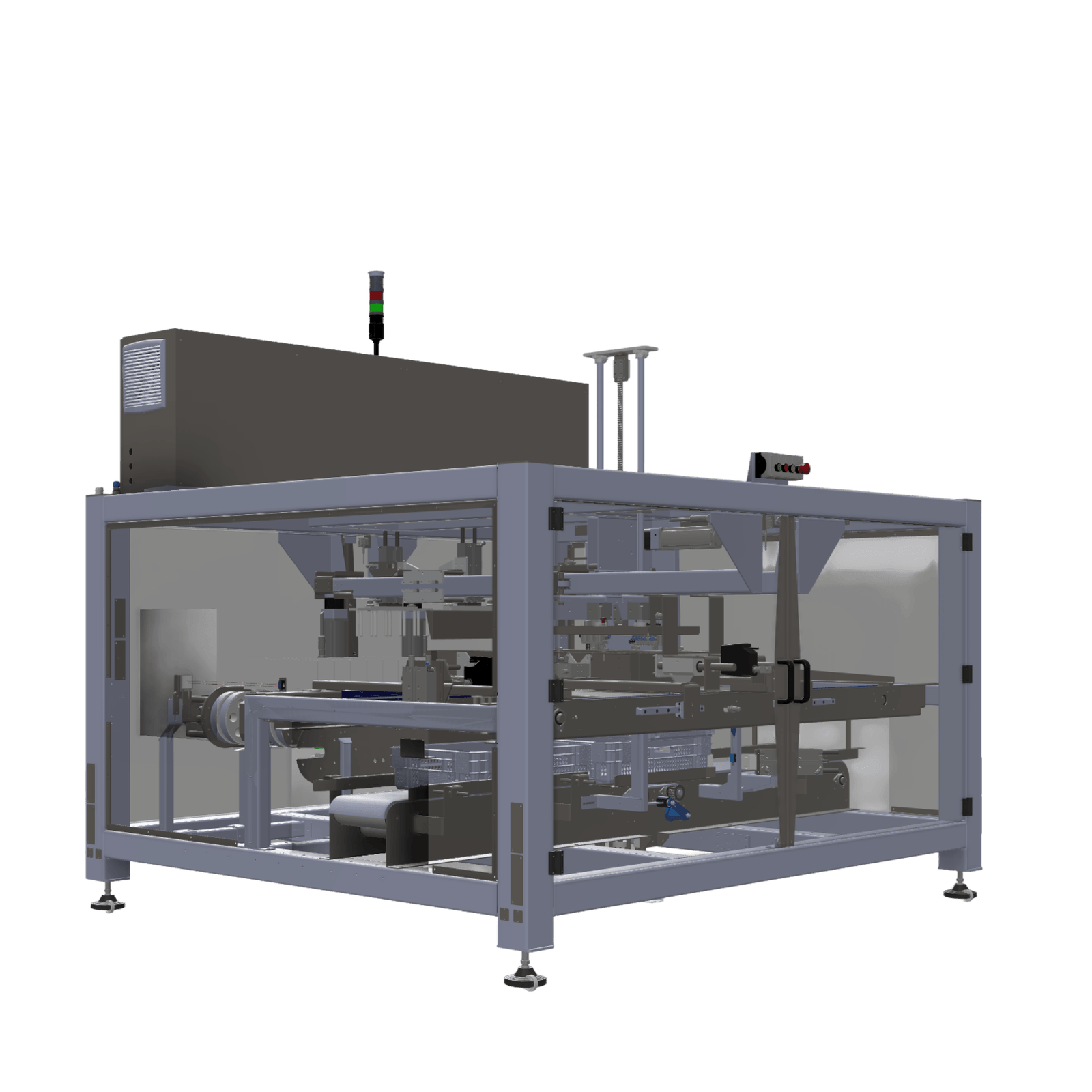

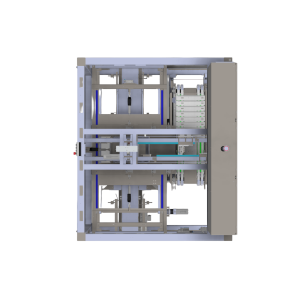

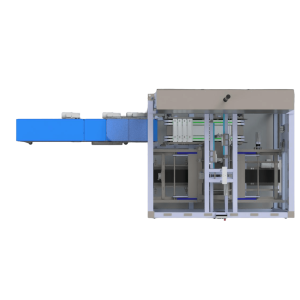

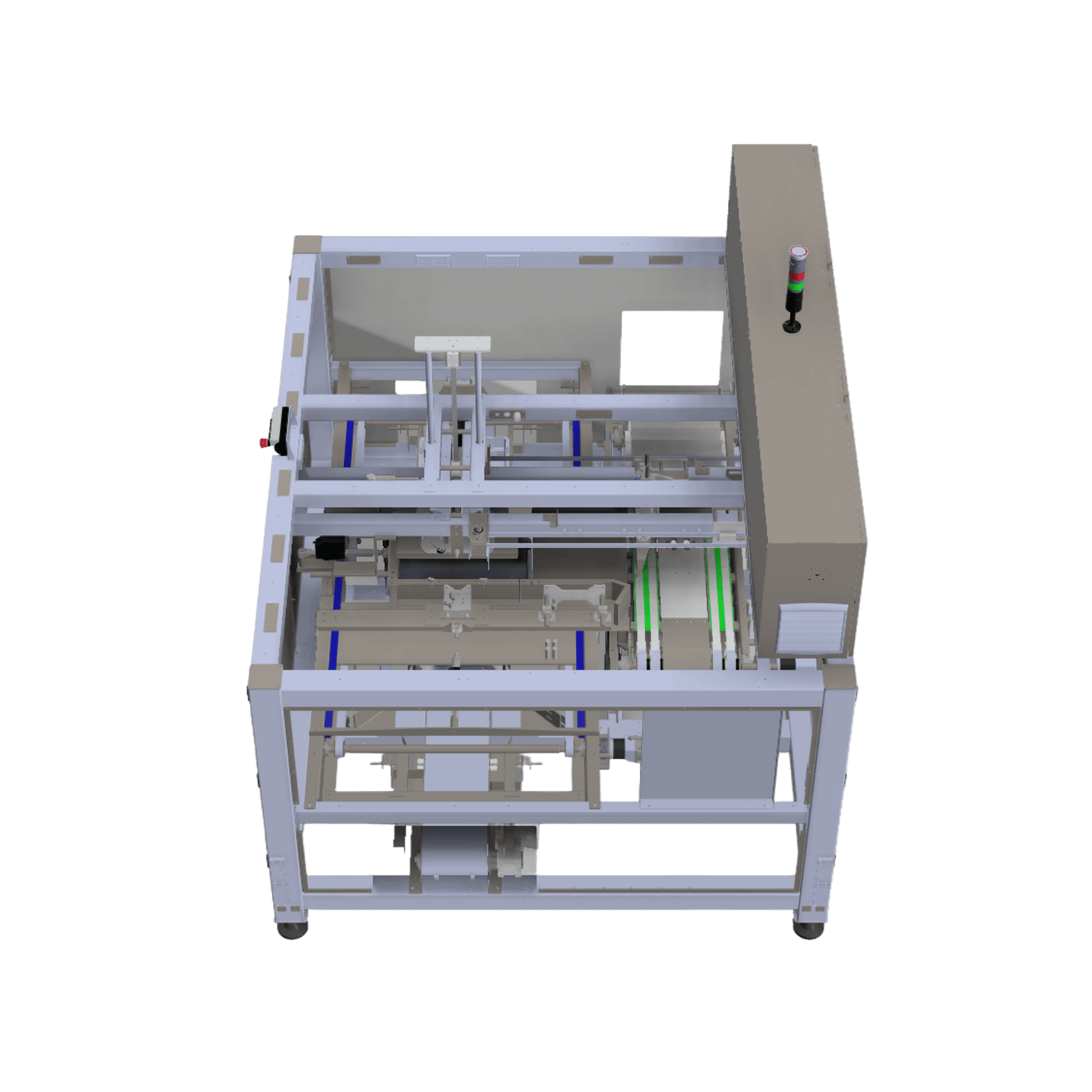

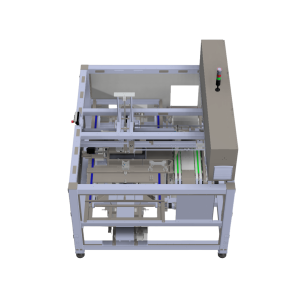

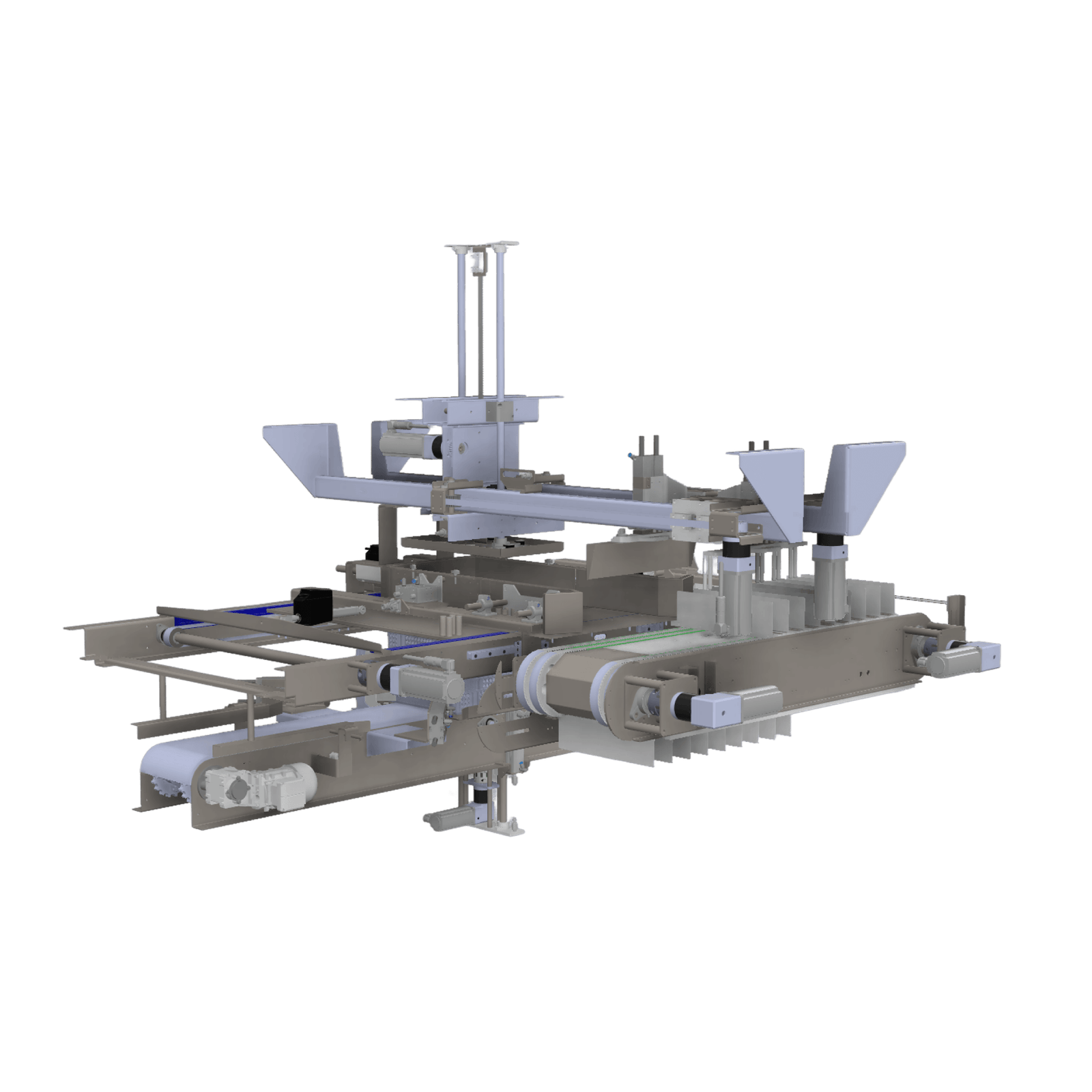

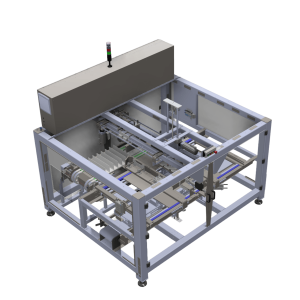

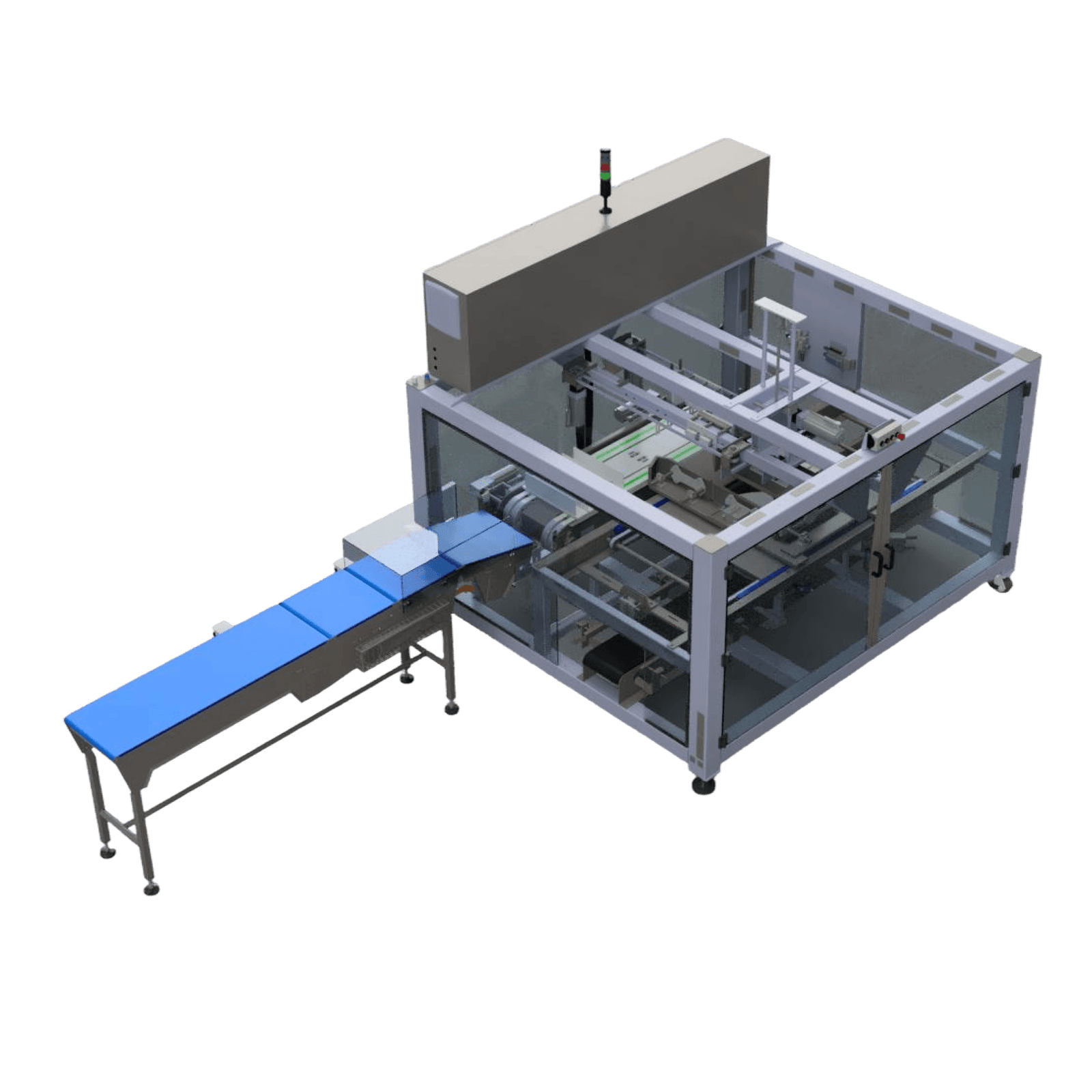

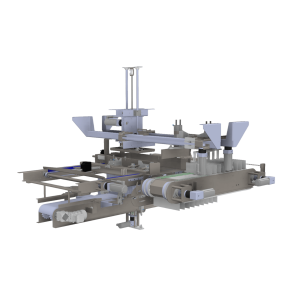

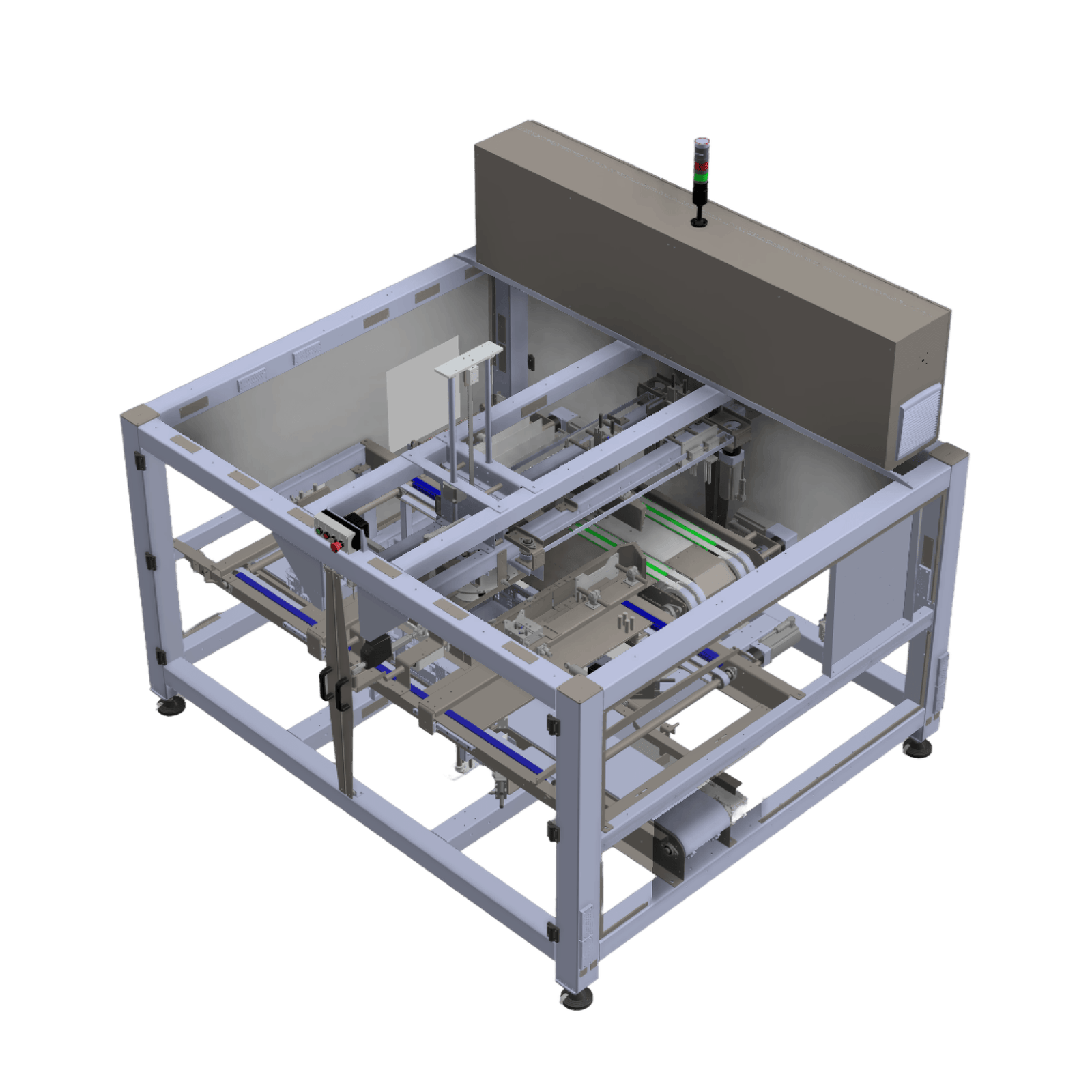

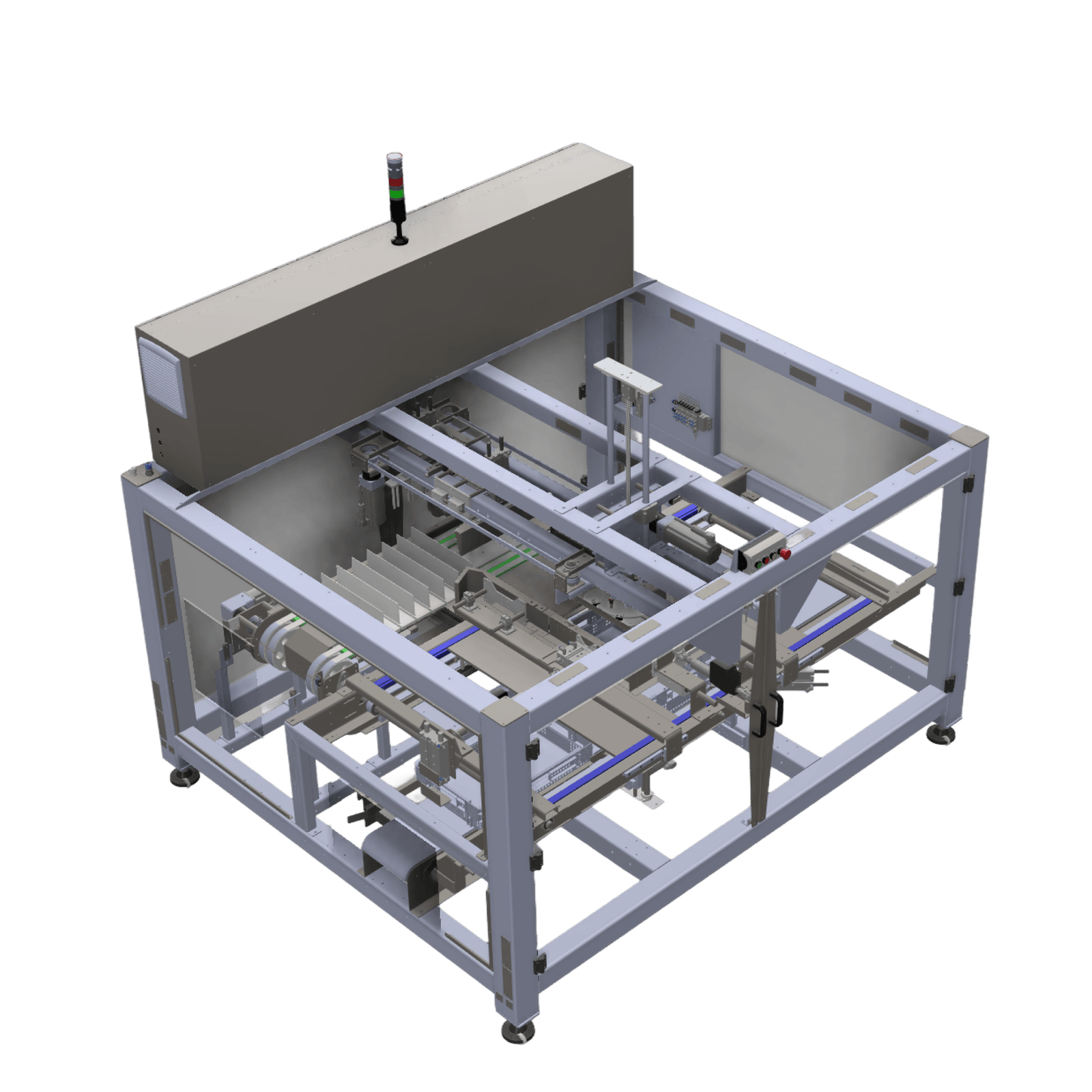

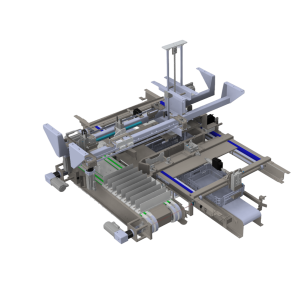

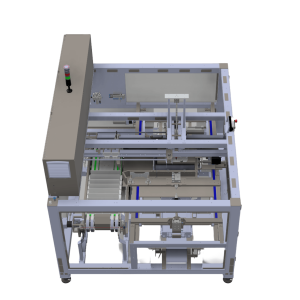

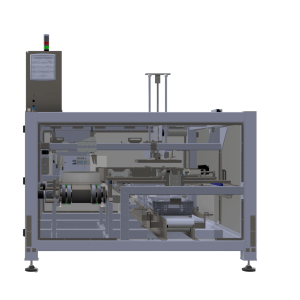

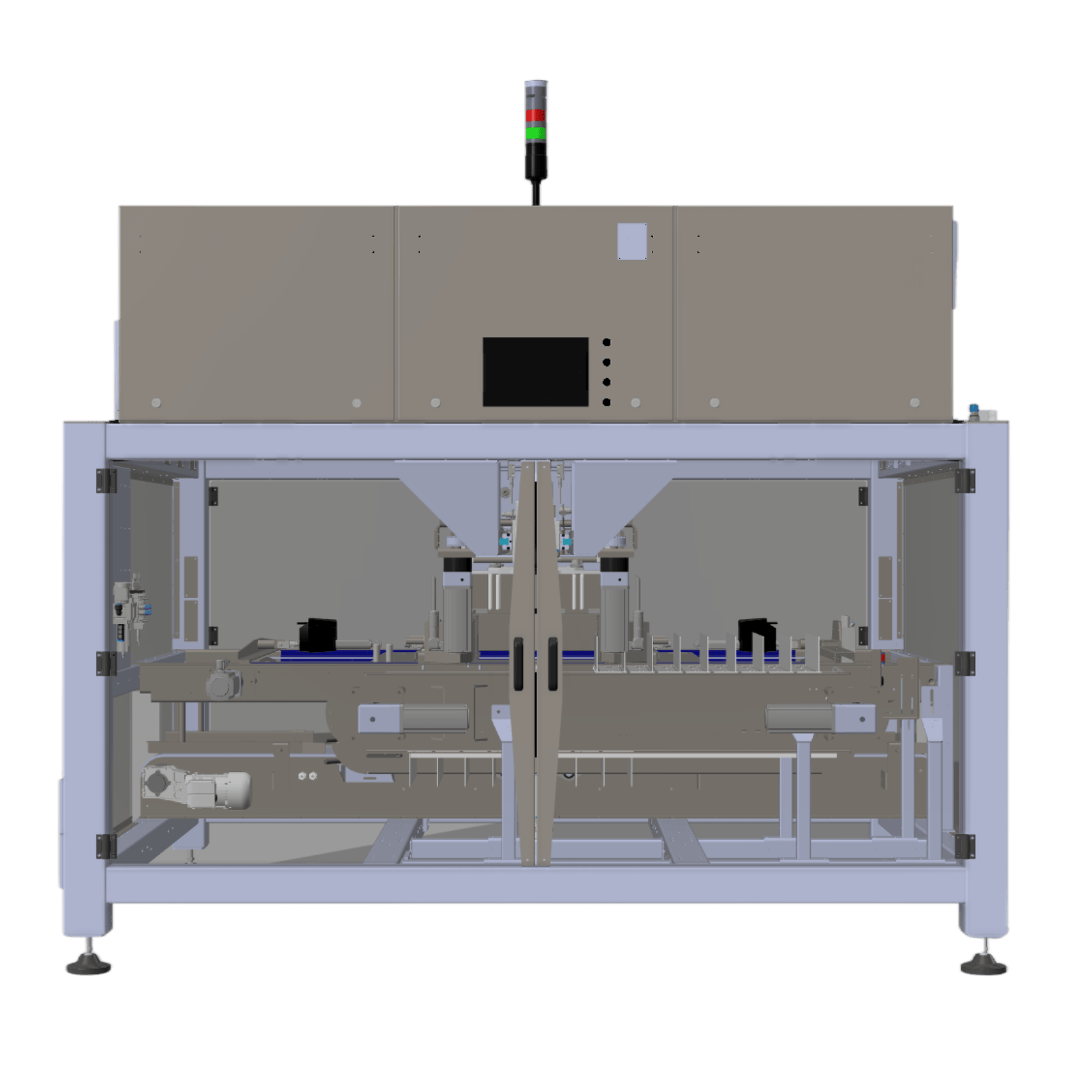

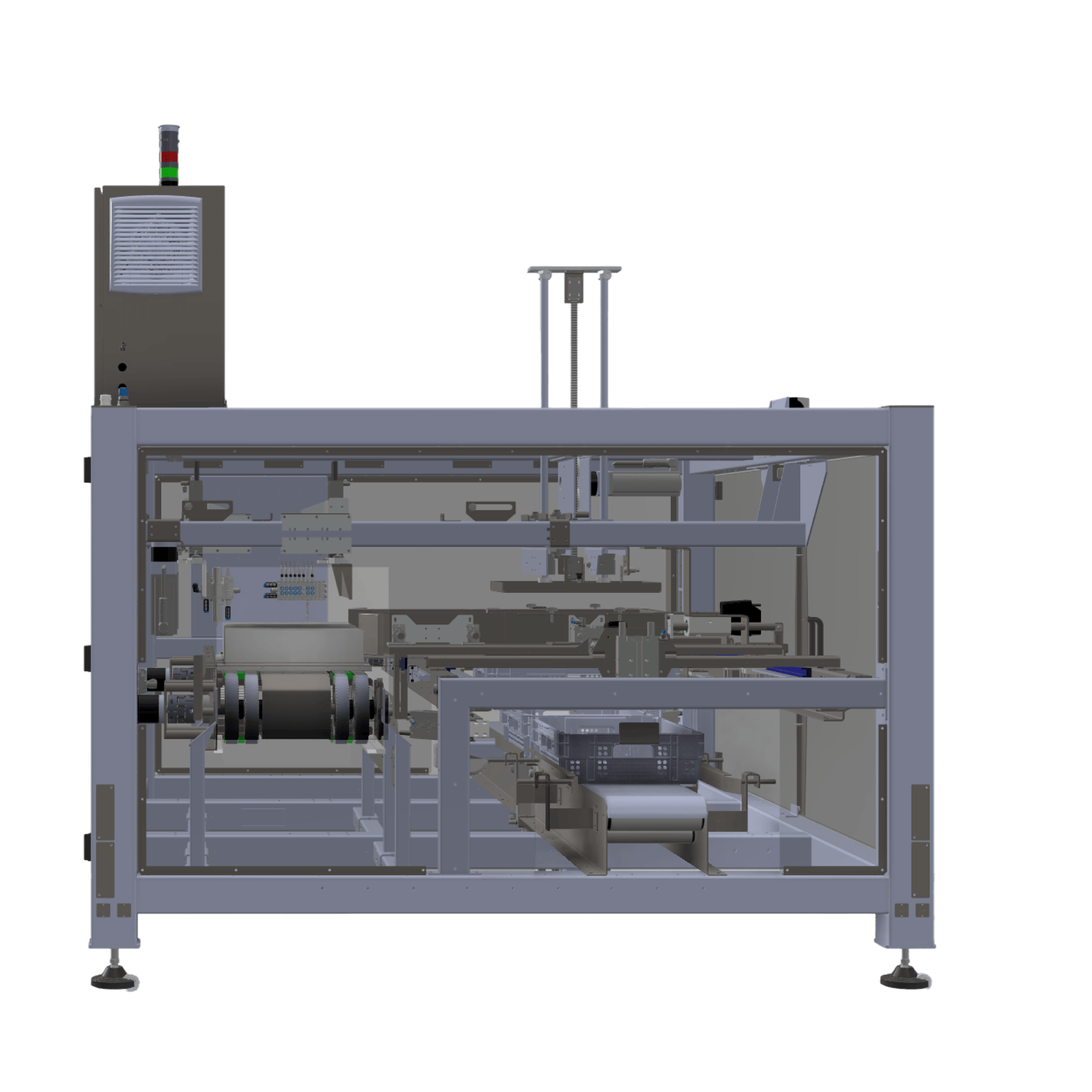

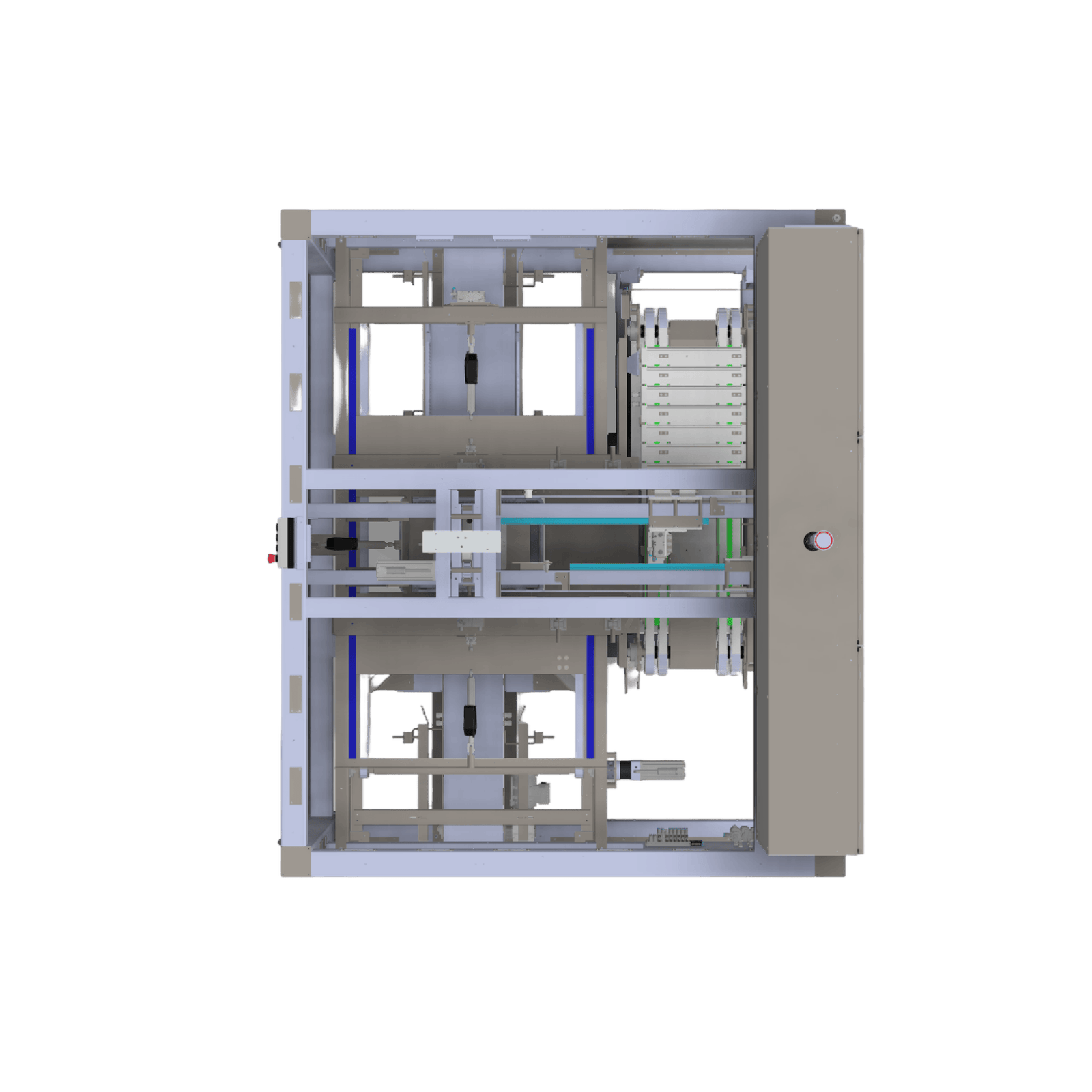

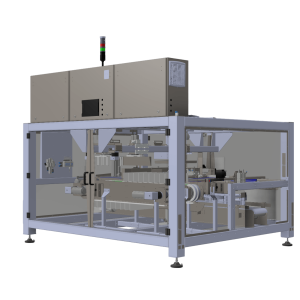

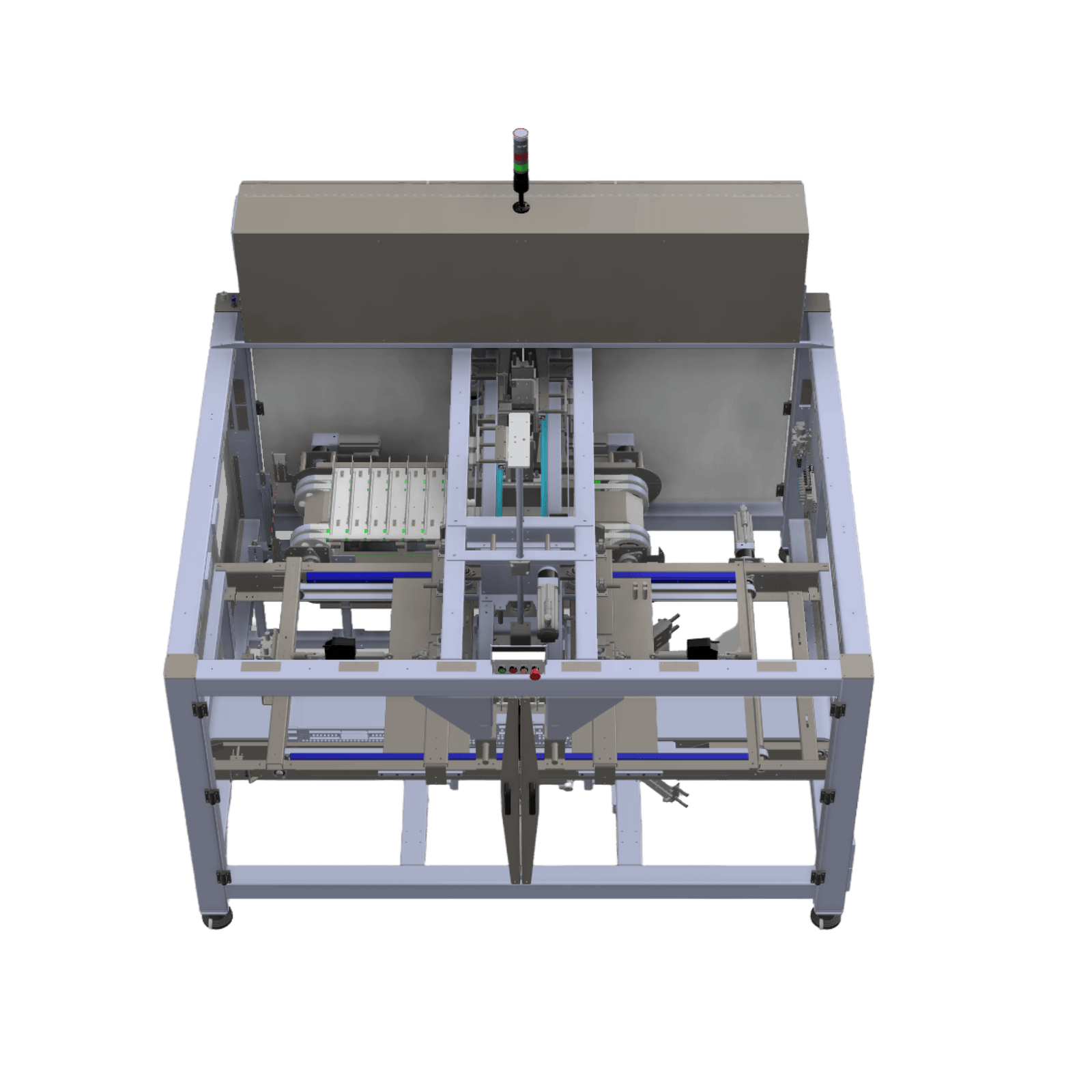

CF-1

The Crate Filler CF-1 is engineered for high-capacity operations that require simple, repetitive loading patterns. Products are oriented on edge, precisely positioned by the Flow Pocket system, and discharged into the crate in a smooth, controlled motion for consistently gentle handling.

High-capacity performance of up to 120 products per minute in a 2600 × 2400 mm footprint

Flow Pocket system for precise on-edge product orientation and positioning at the drop point

Premium component base: Siemens/Omron controls, Festo servo drives, SICK sensors, and Pilz safety systems

Patterns:

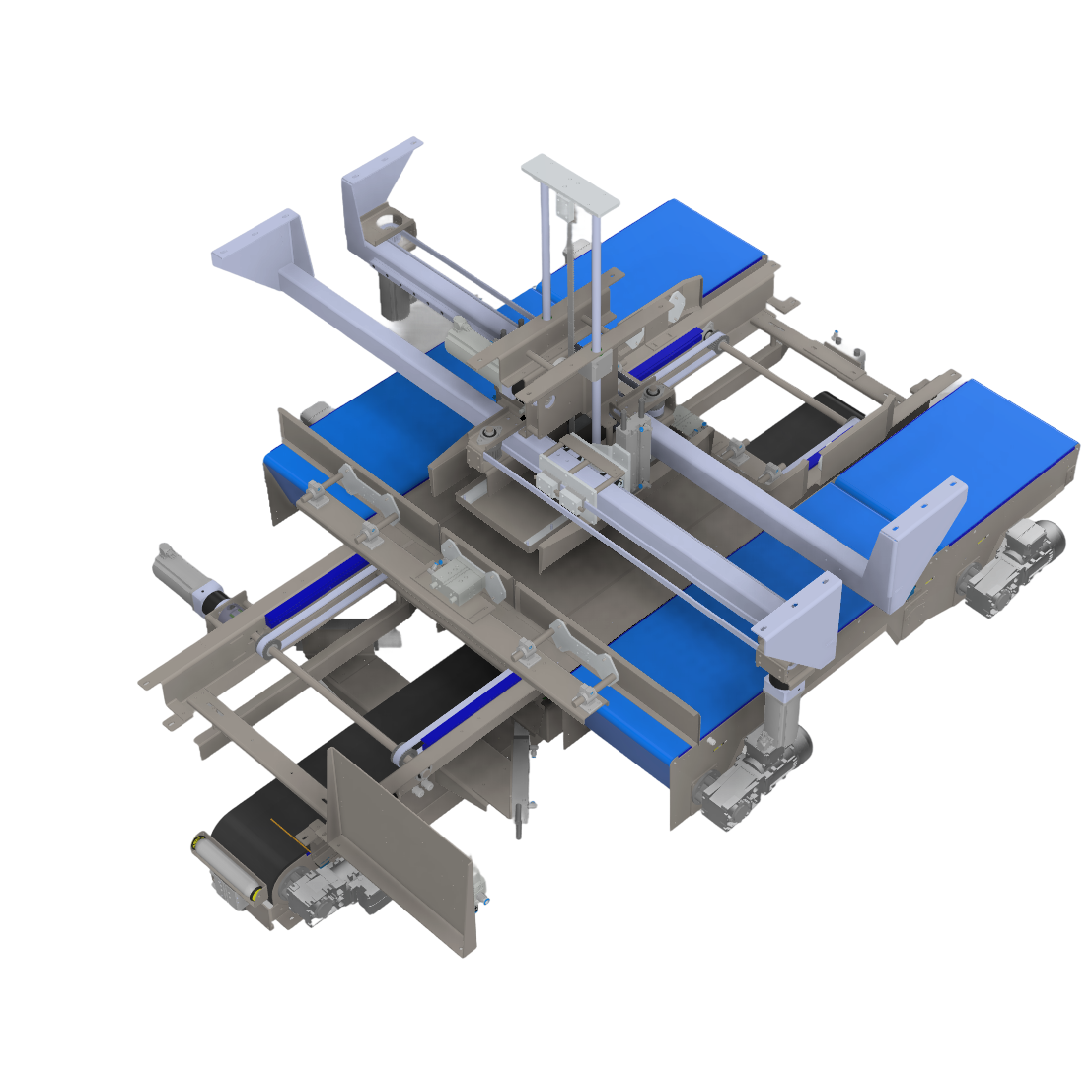

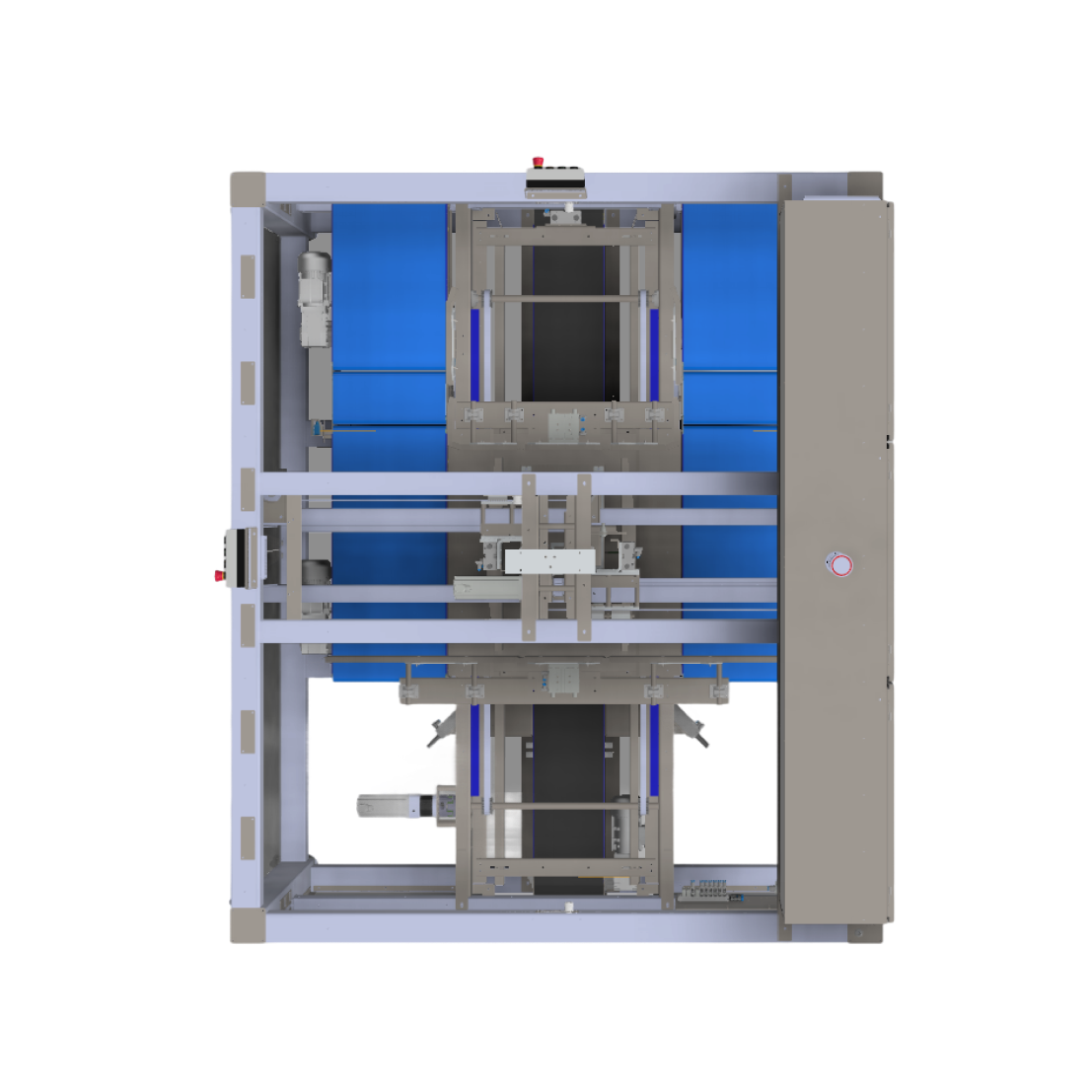

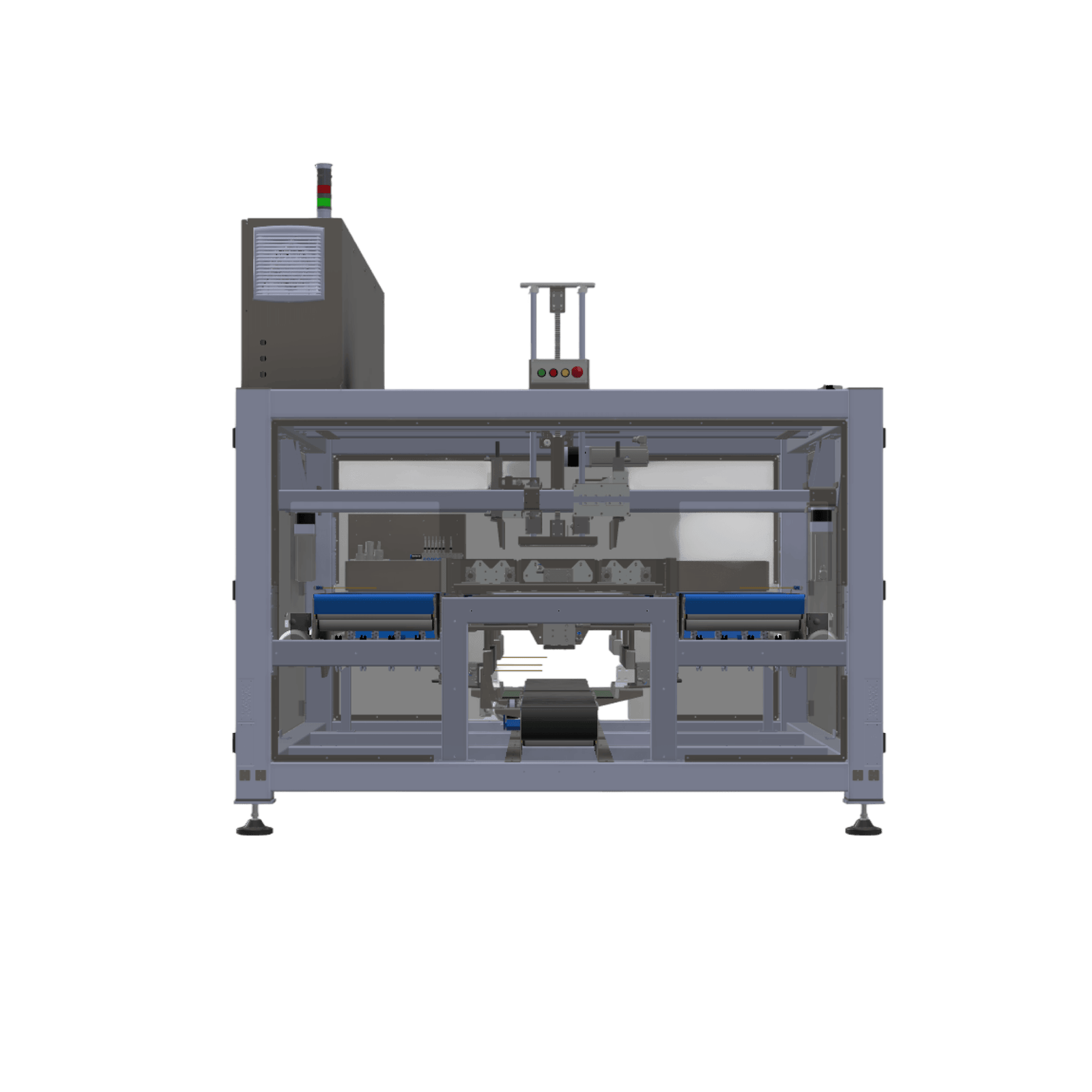

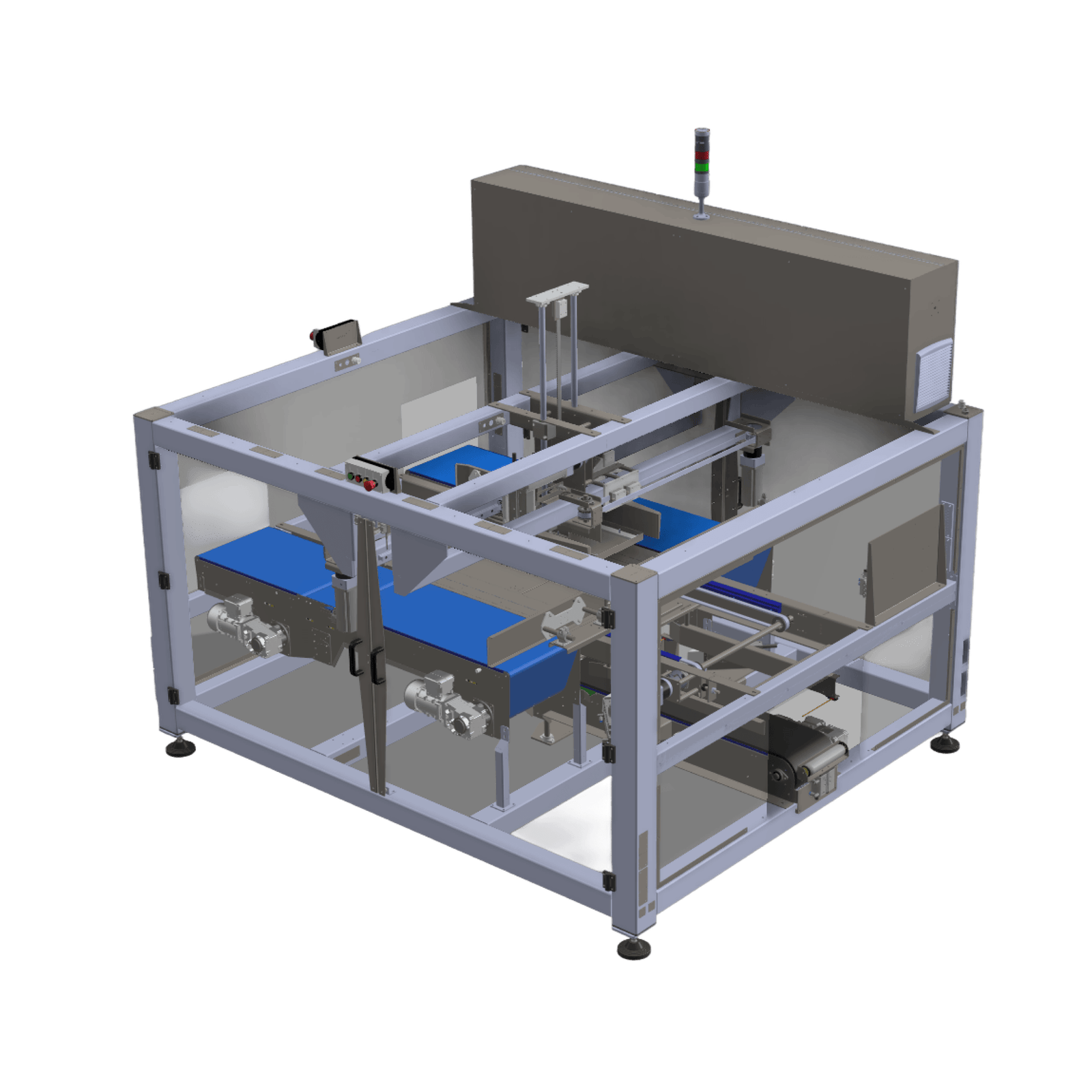

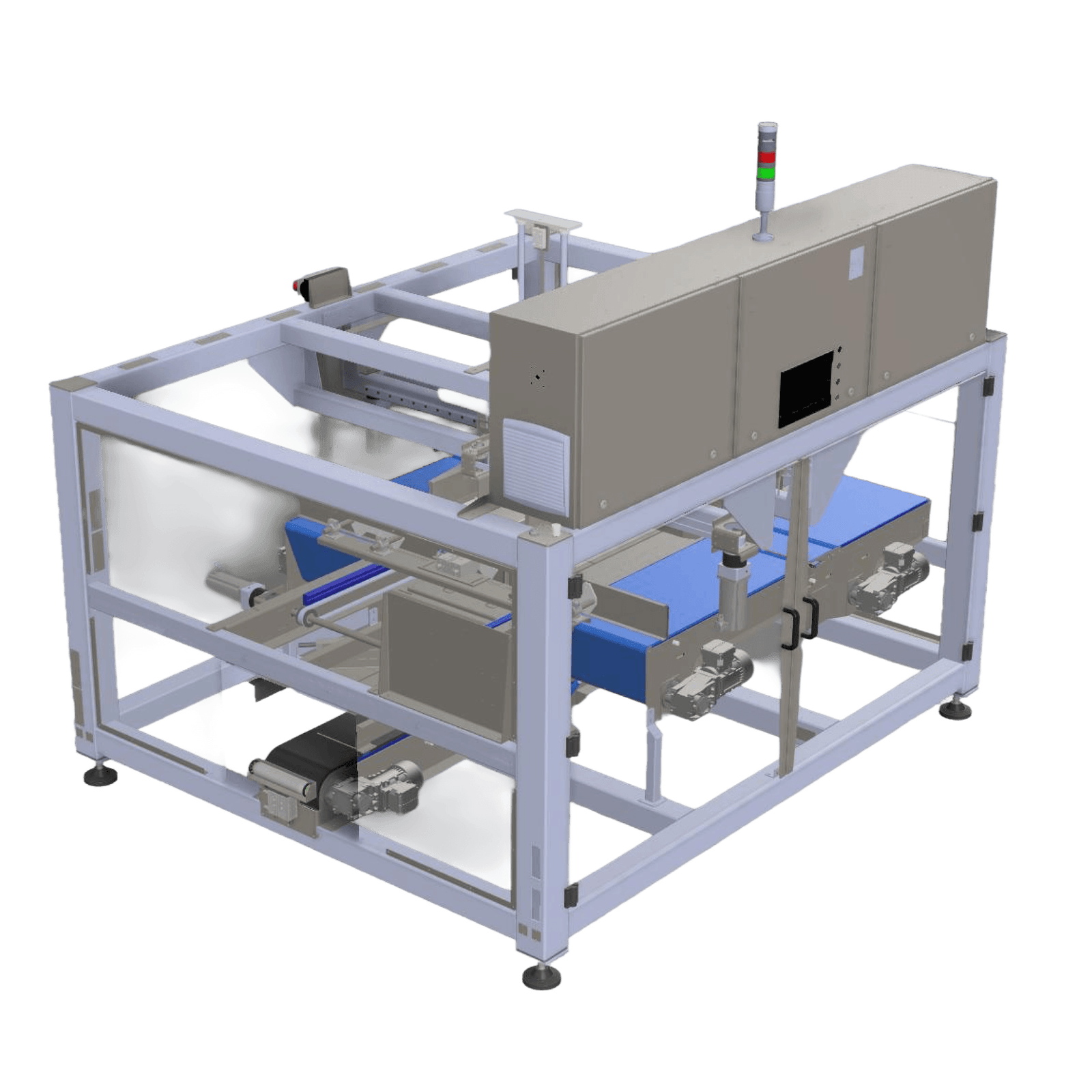

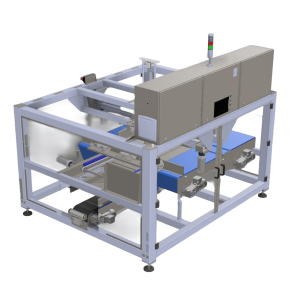

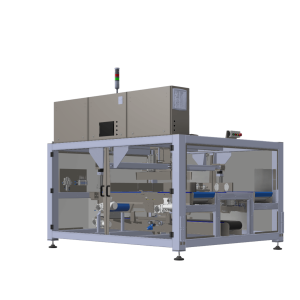

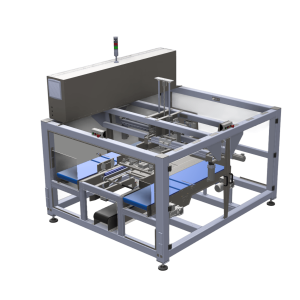

CF-2

The Carton Filler CF-2 is the entry-level model with the most compact footprint in the entire ENDLINE Filler series, delivering high efficiency in minimal space. A flow-feed conveyor counts incoming products and forms precise rows, which a servo-driven pusher gently transfers to the drop point for controlled, stable release into the carton.

Most compact machine in the series (2600 × 2000 mm) with capacity up to 120 products per minute

Servo-driven pusher and controlled drop-point release for gentle, continuous product flow

Ideal for production lines requiring efficiency, simplicity, and reliability within limited space

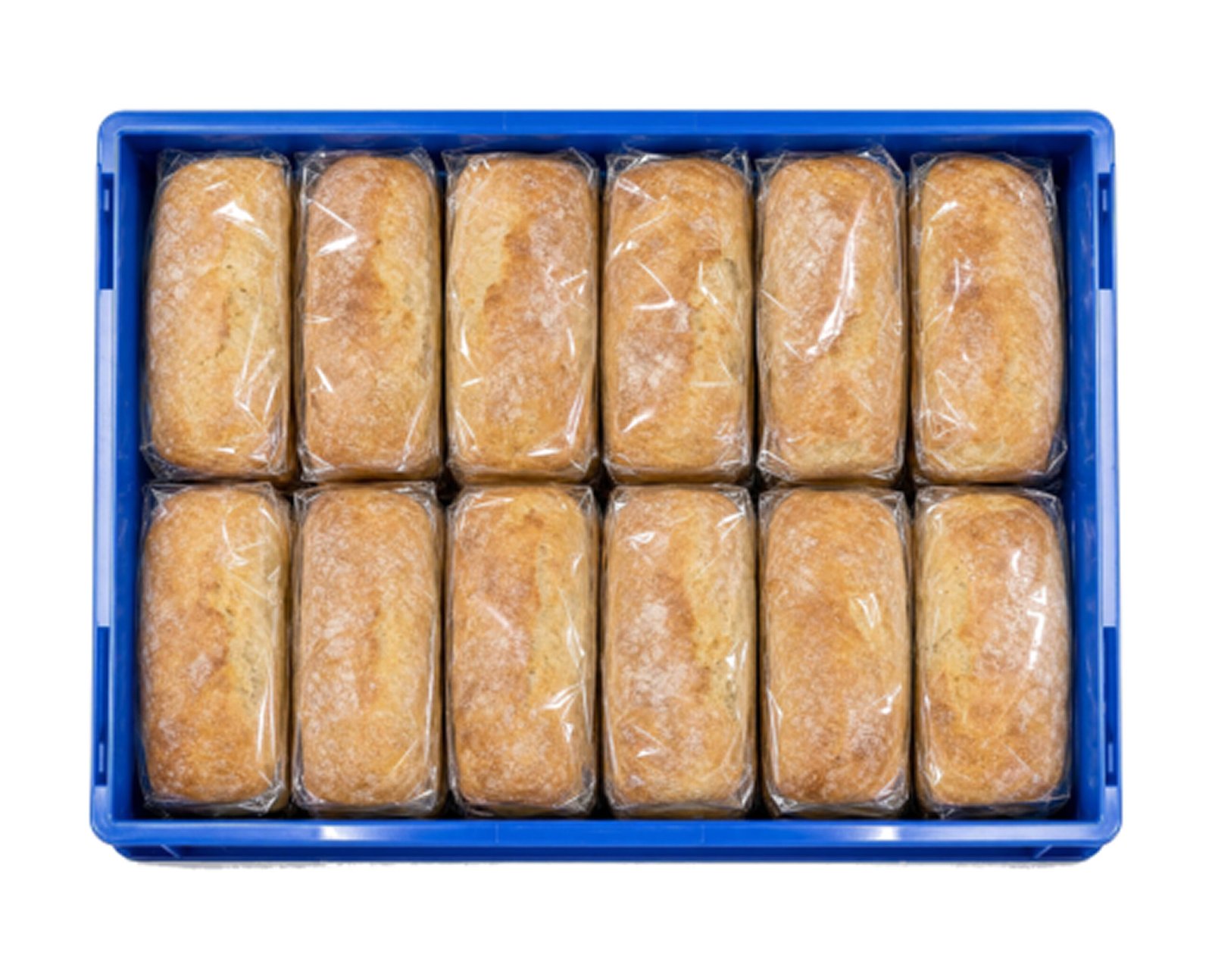

Patterns:

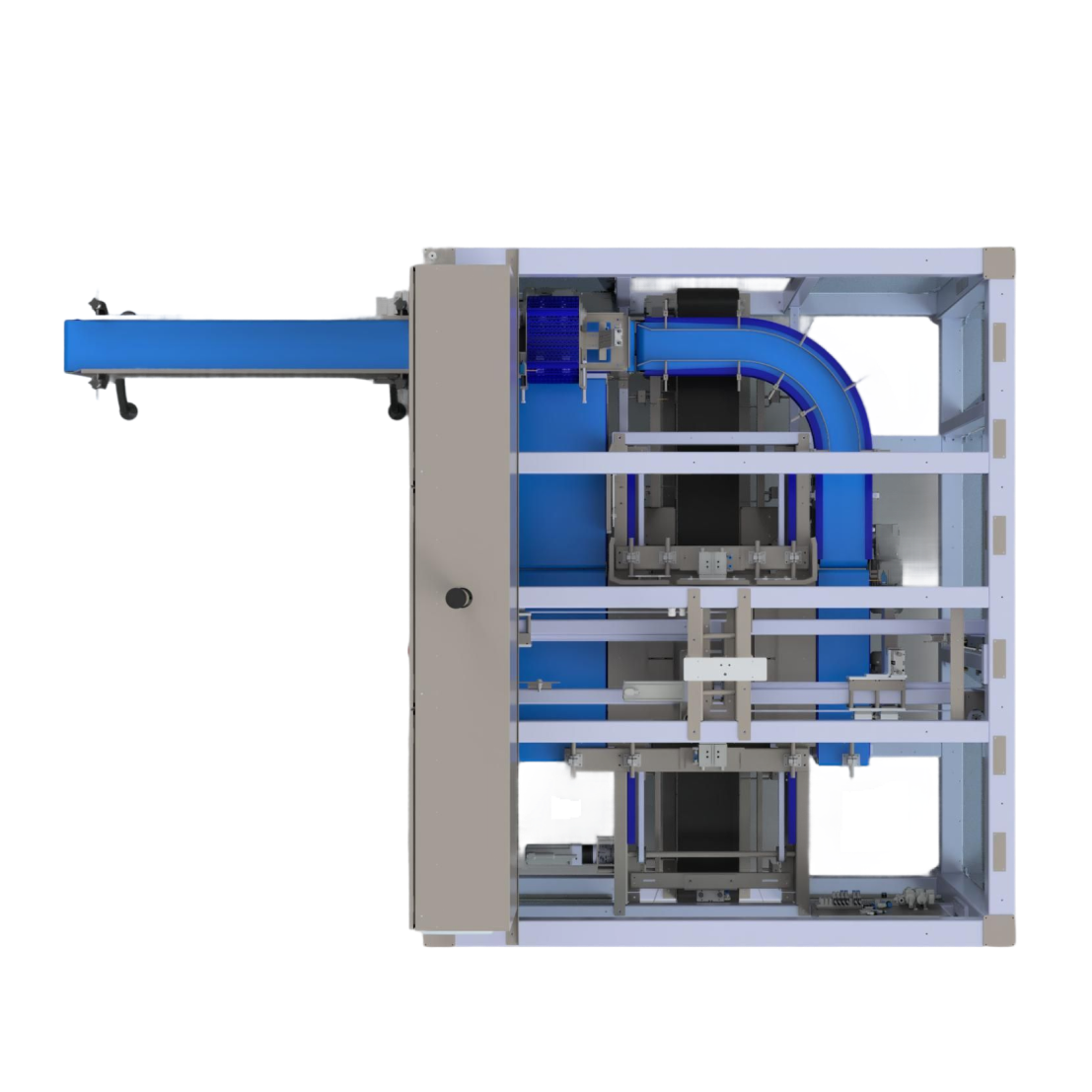

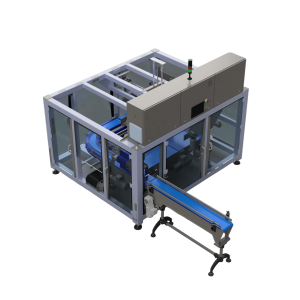

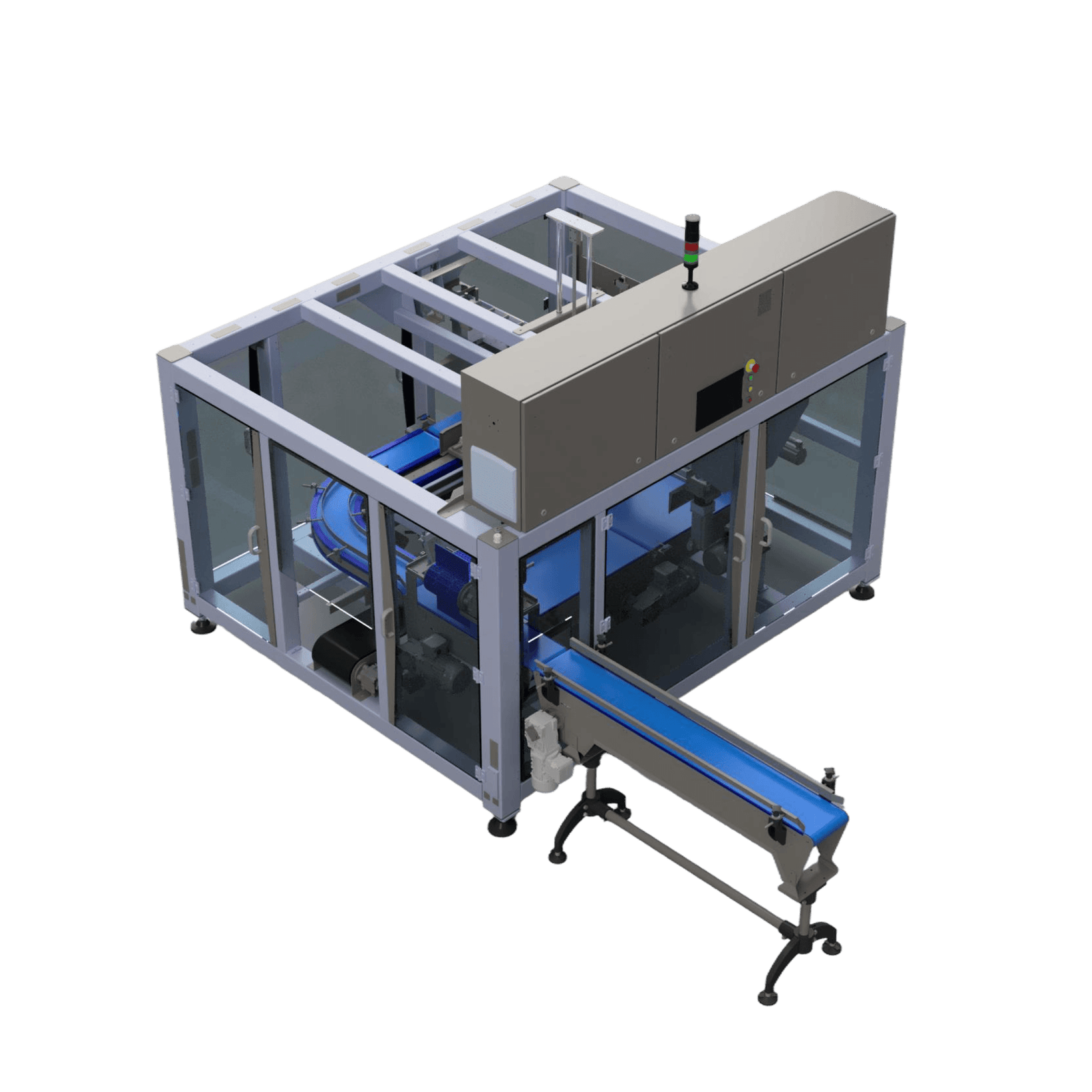

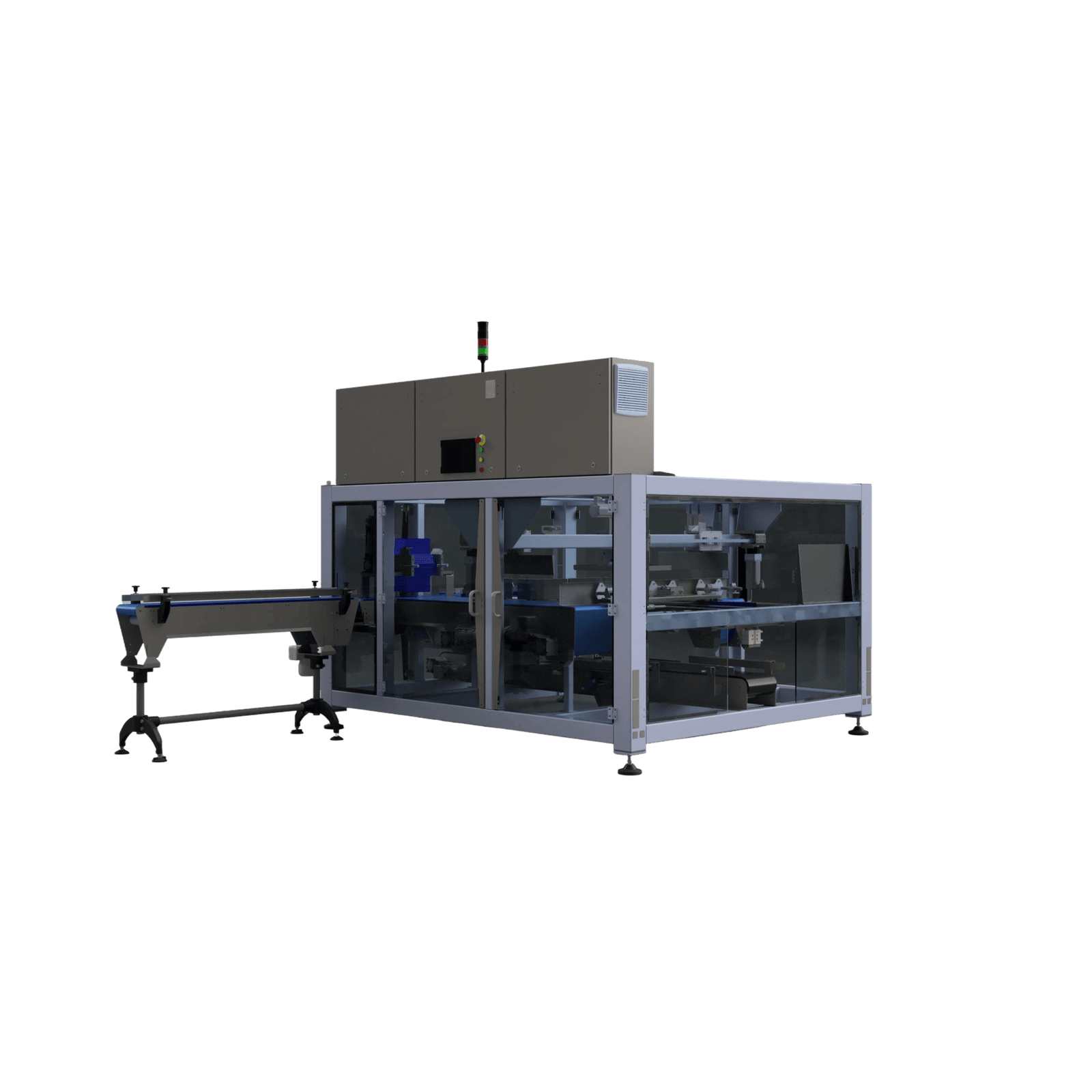

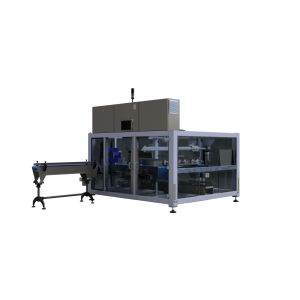

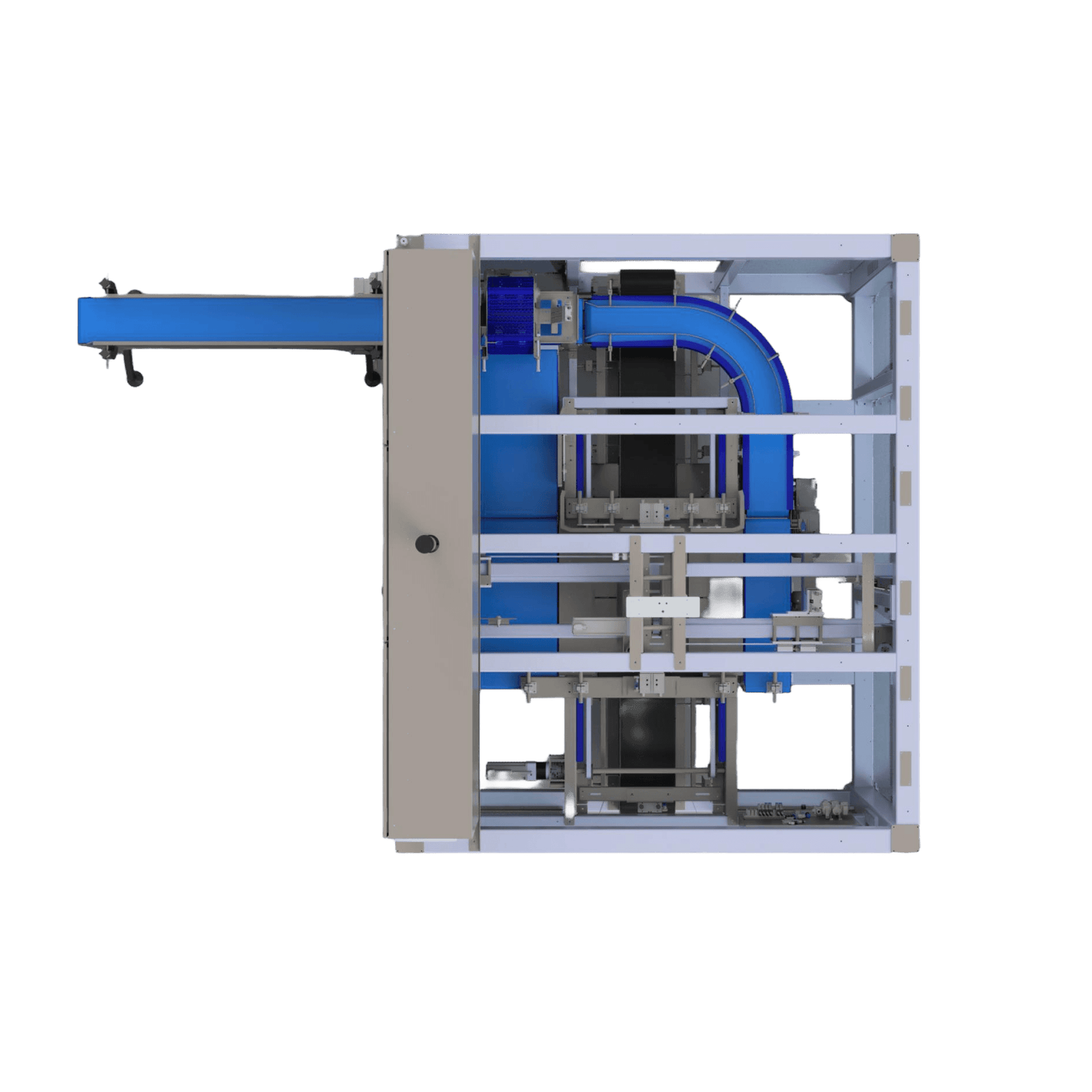

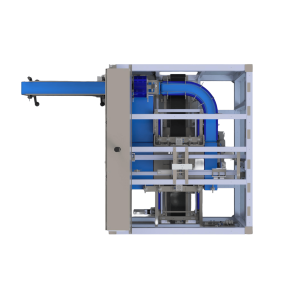

CF-3

The Crate Filler CF-3 is a versatile, multi-pattern machine capable of forming nearly any loading configuration thanks to a wide range of customizable options. A belt pushing mechanism distributes products onto two separate lines — long side or short side leading — before centring and discharging each group into the crate in a controlled motion.

Multi-pattern loading with two independent product lines for maximum configuration flexibility

Capacity of 70–80 products per minute with gentle, low-impact product handling

CE-compliant steel mesh safety guarding and premium automation components (Siemens/Omron, Festo, SICK, Pilz)

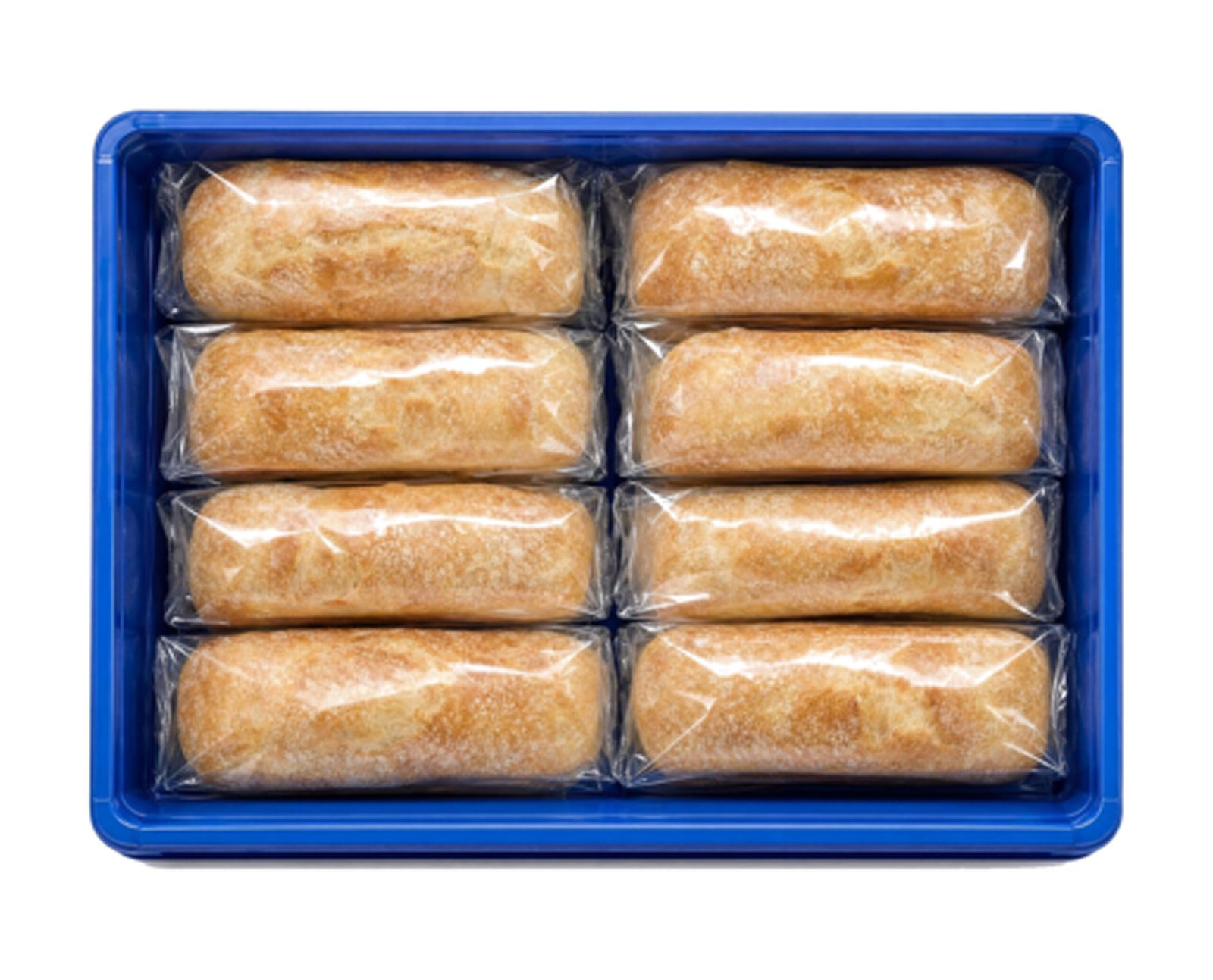

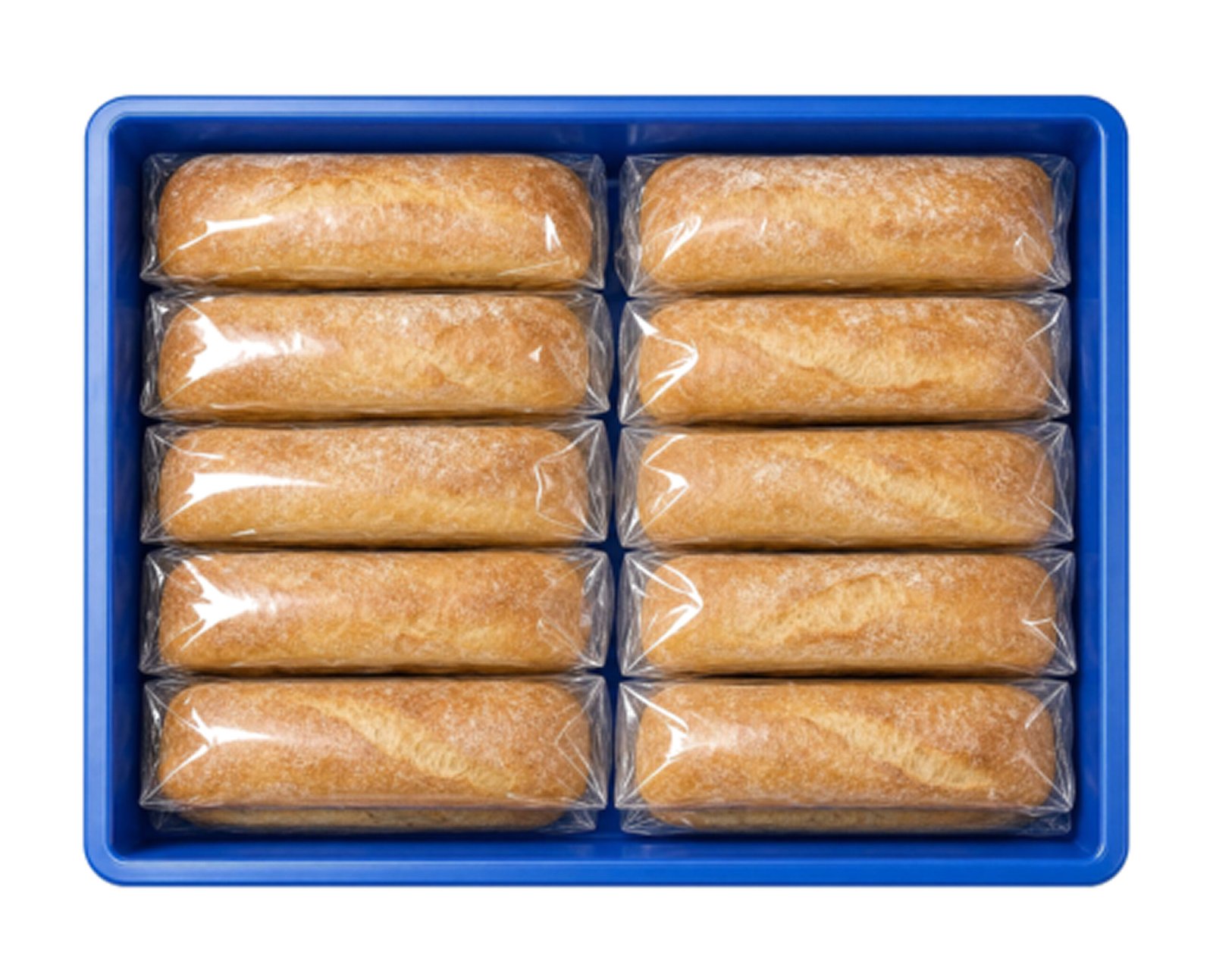

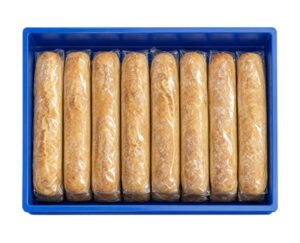

Patterns:

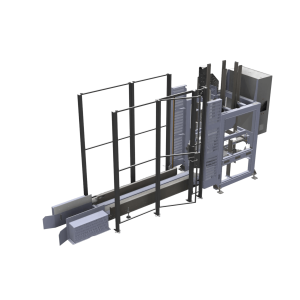

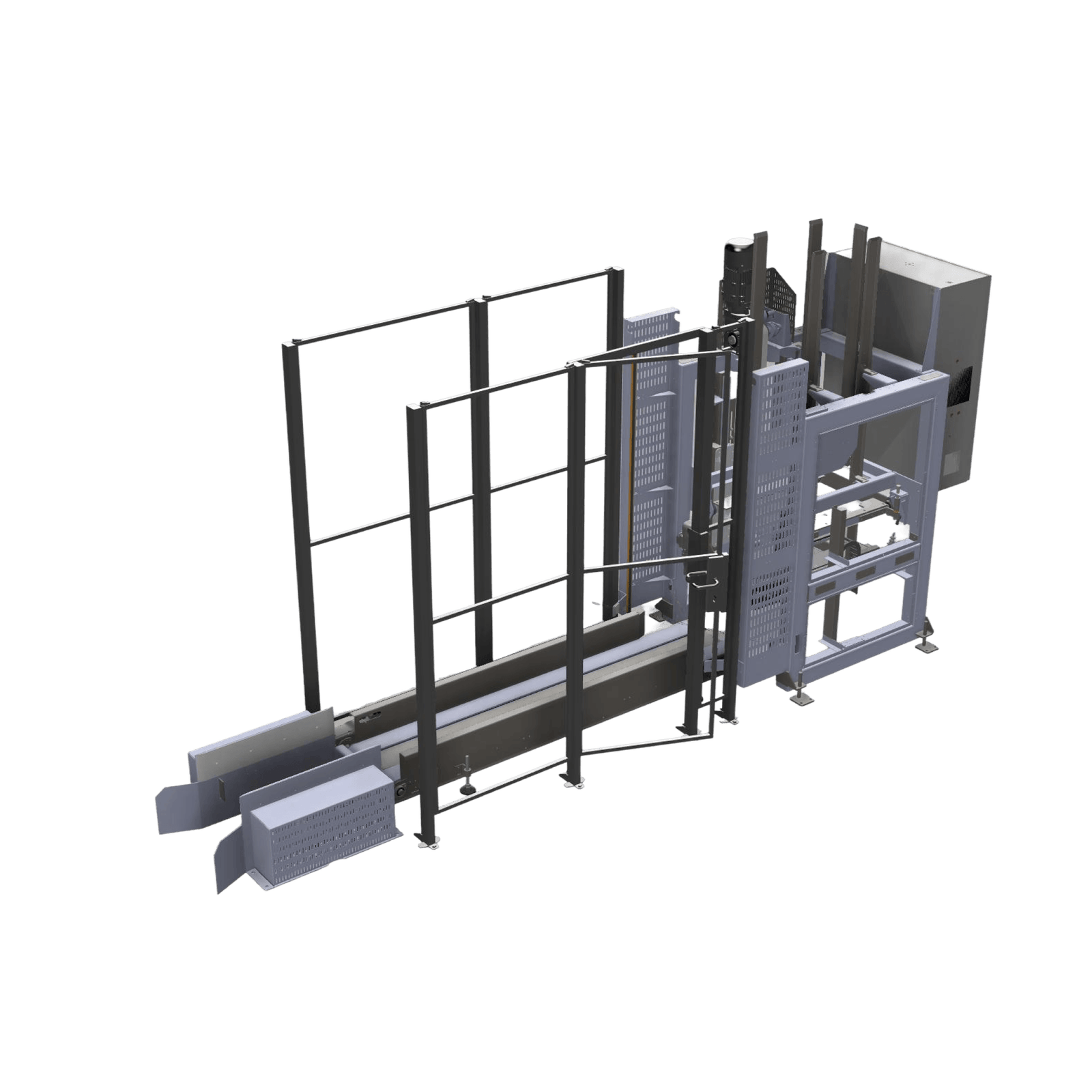

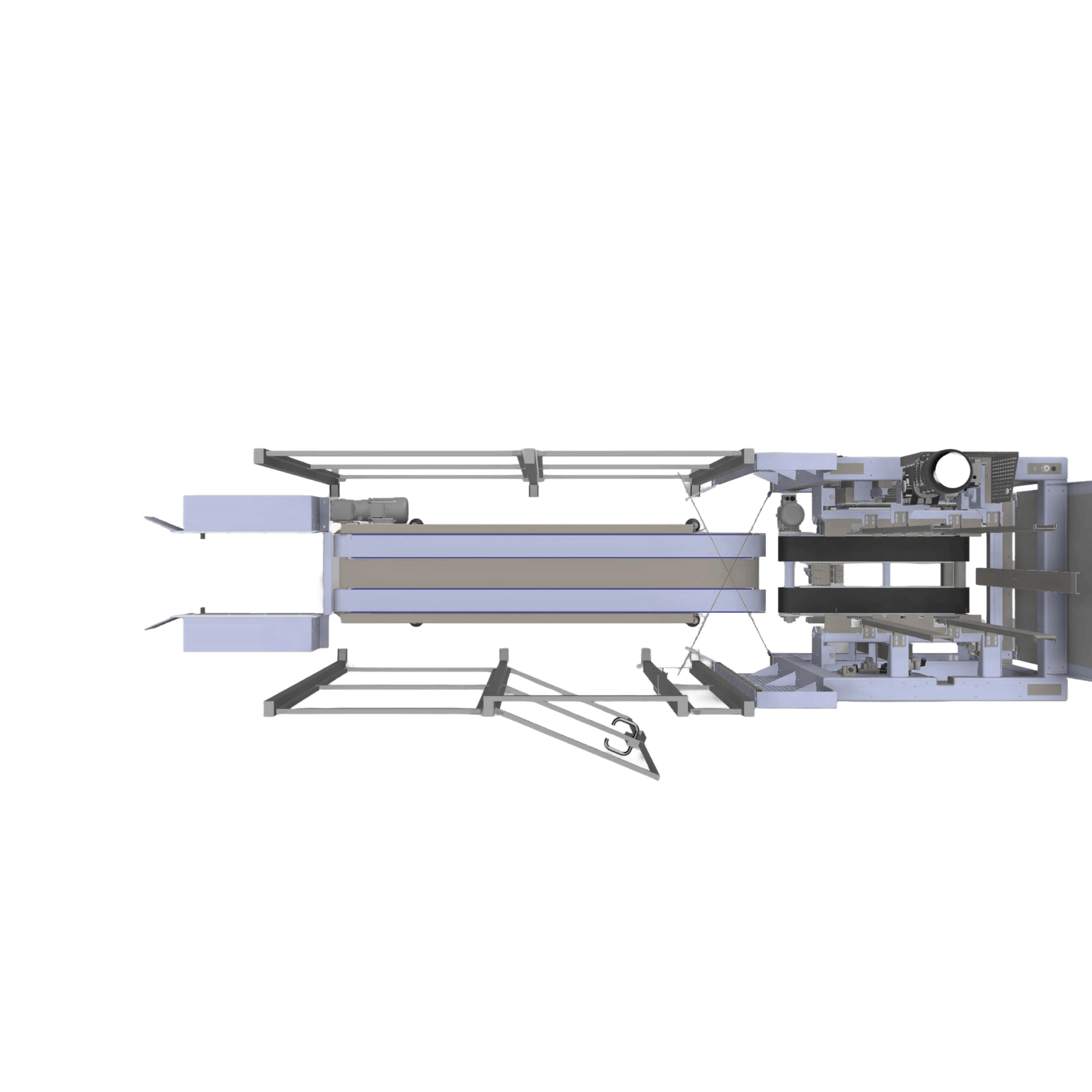

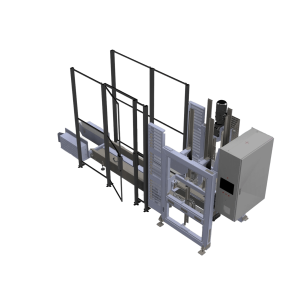

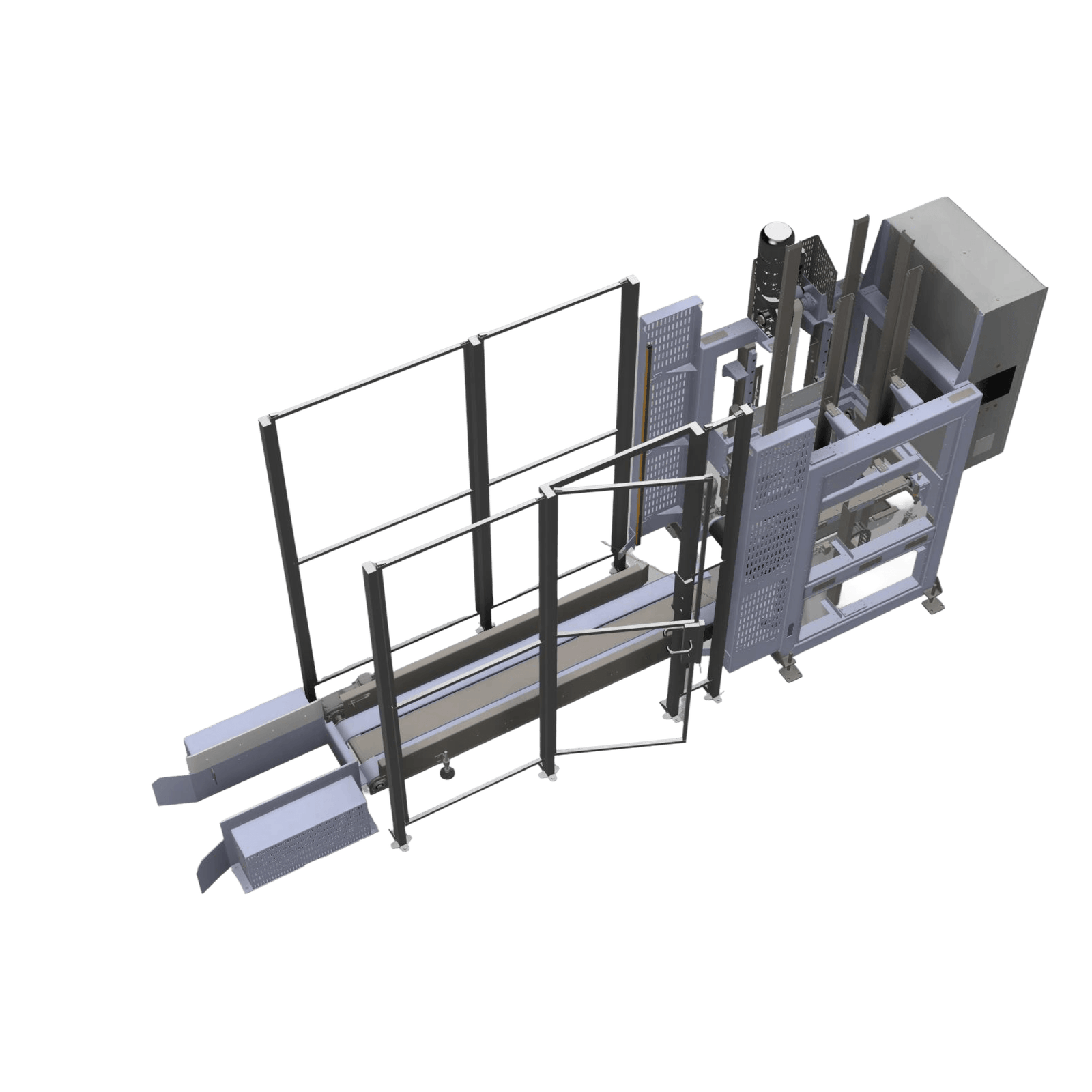

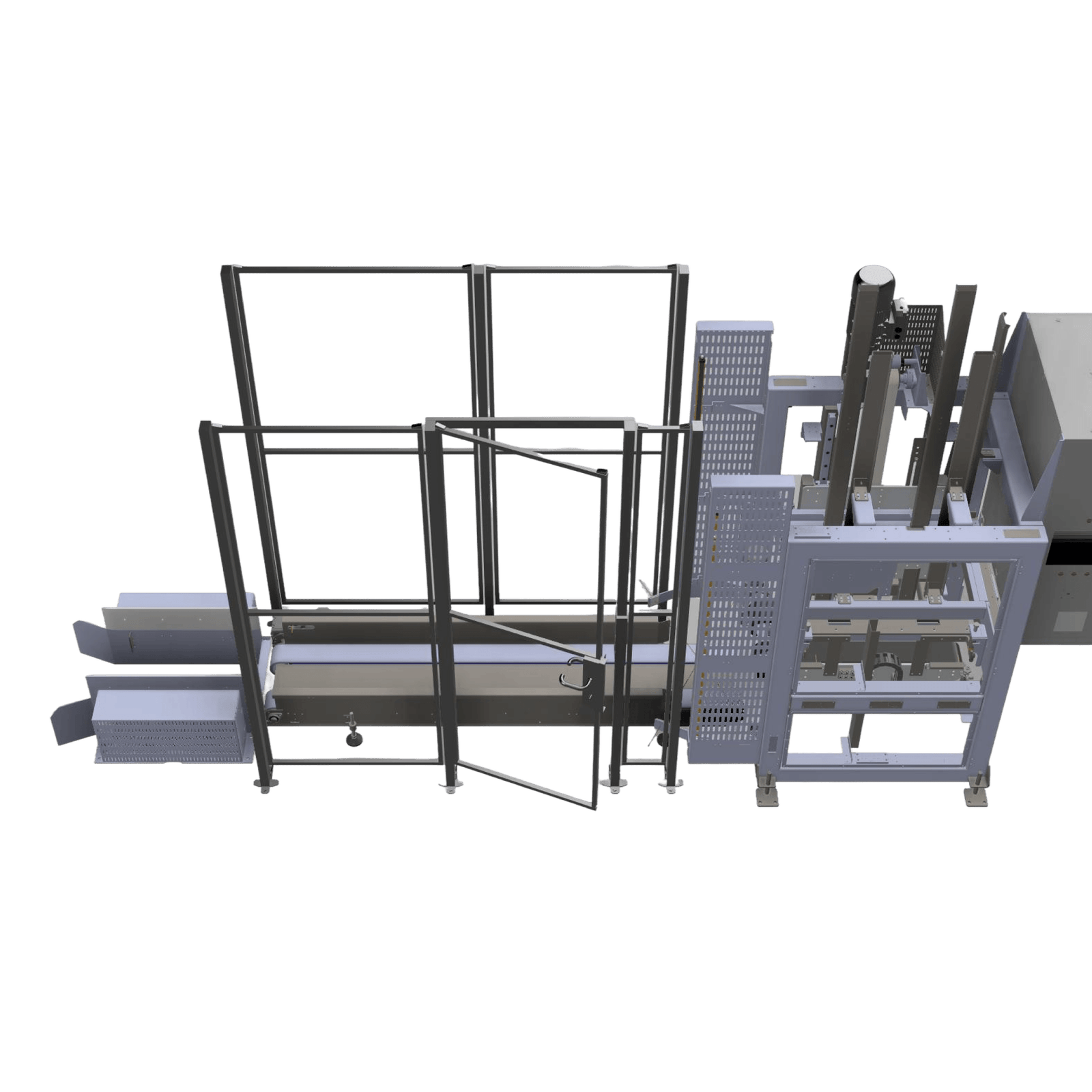

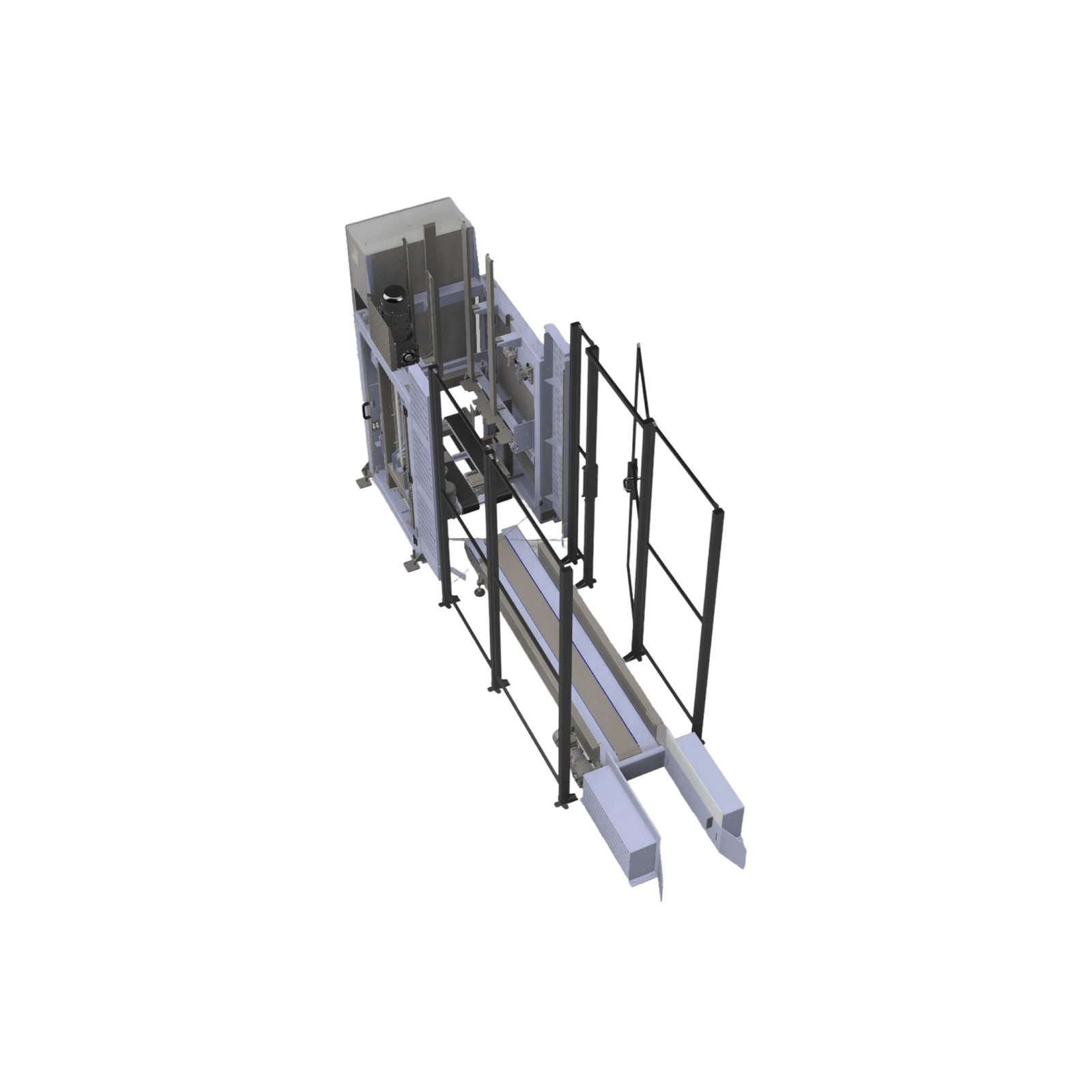

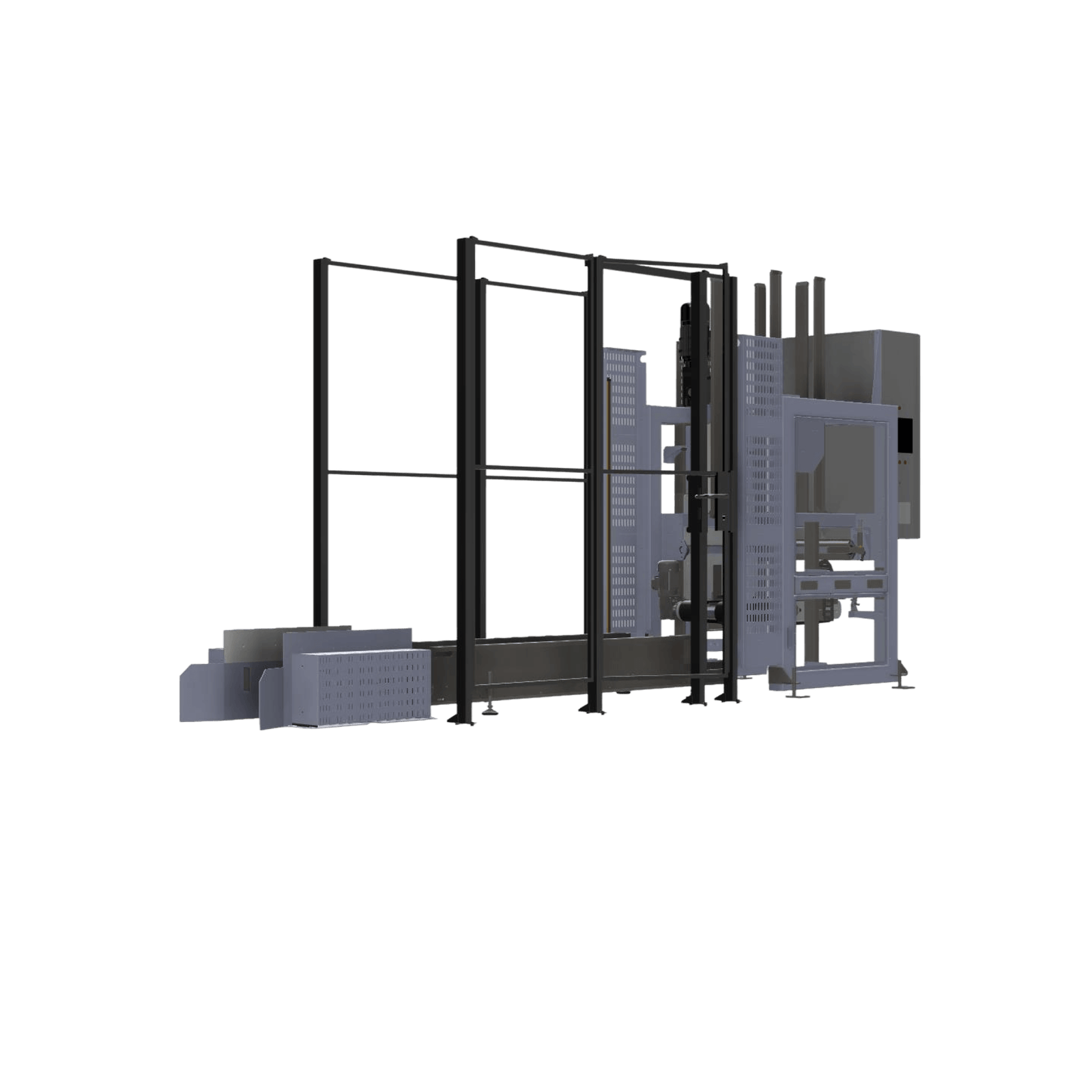

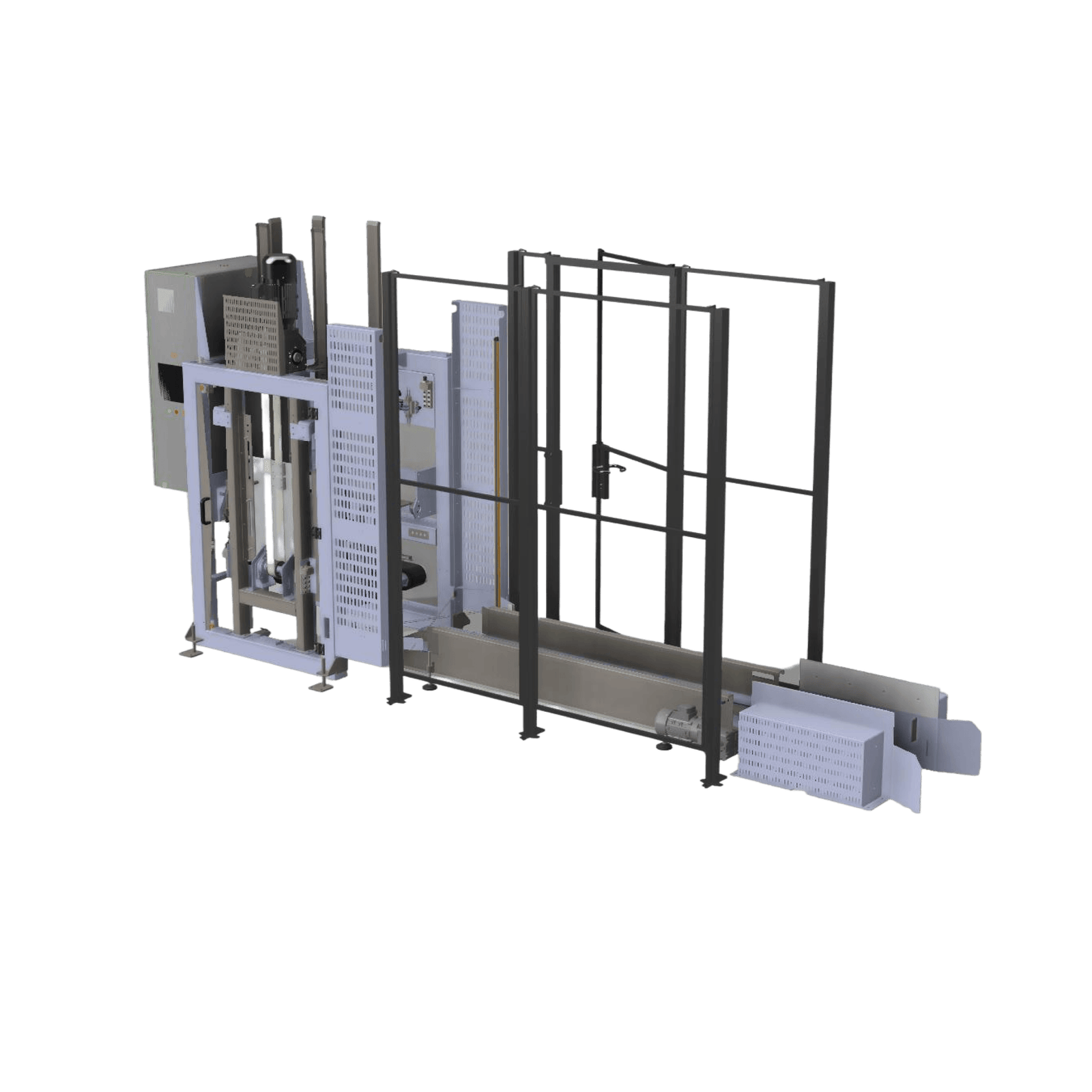

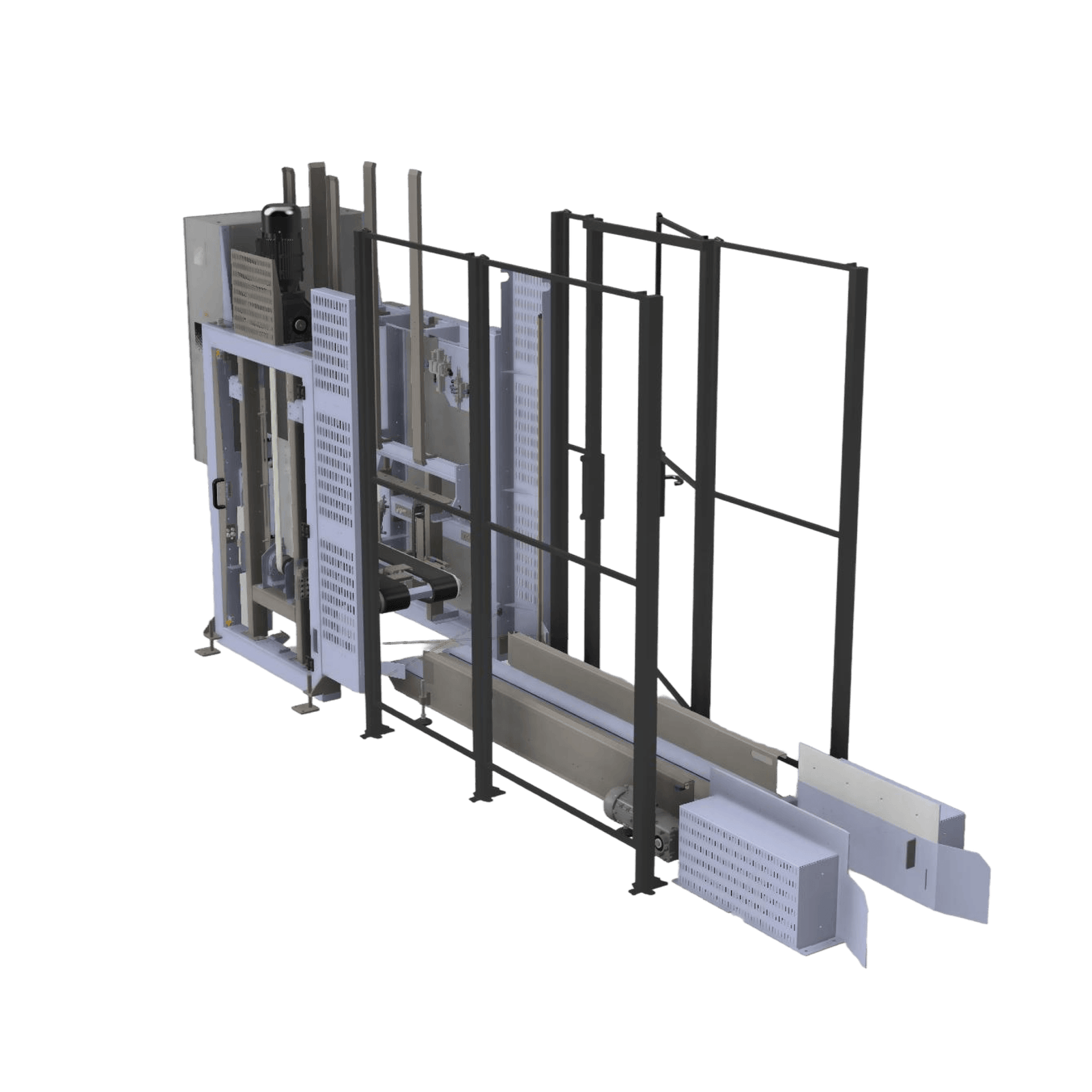

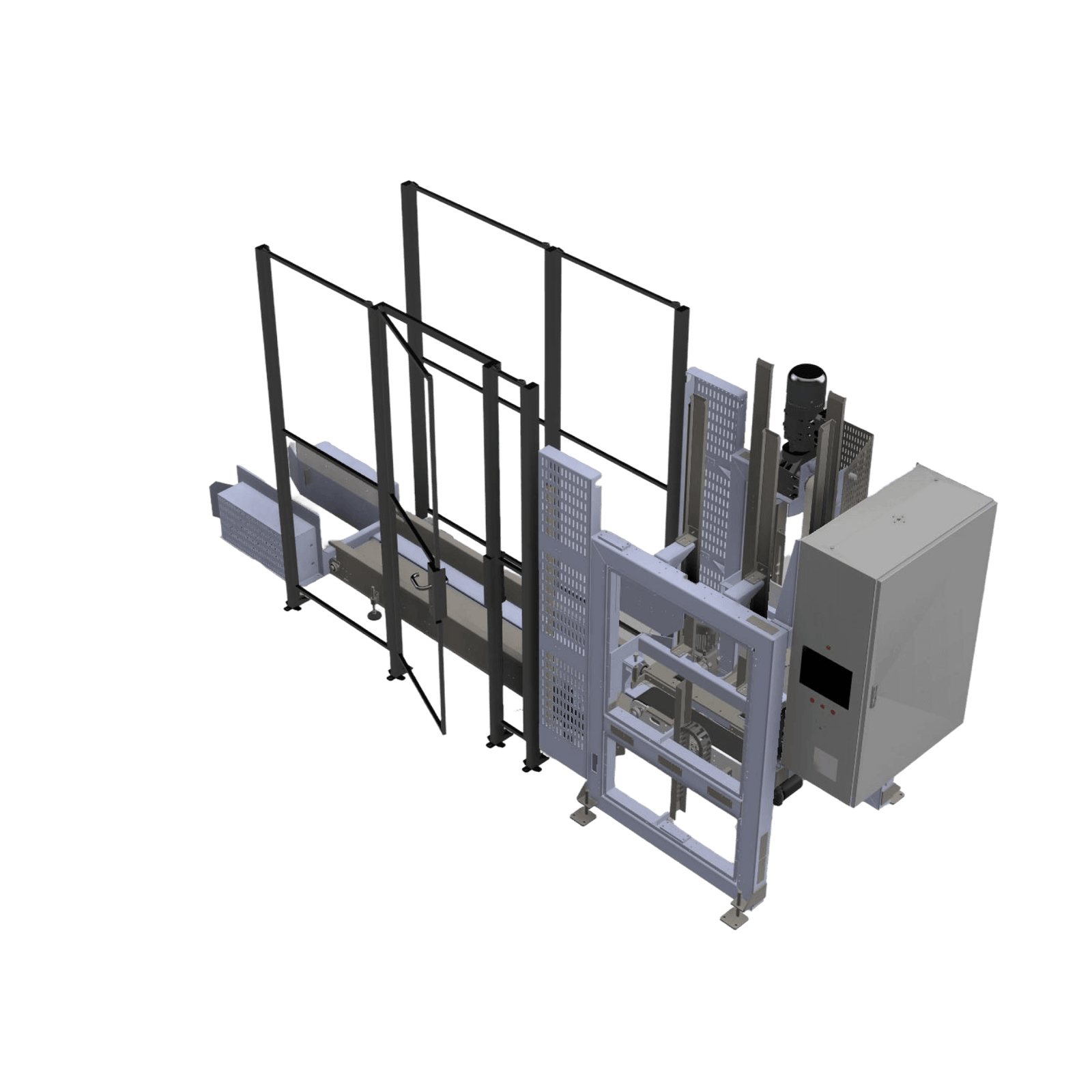

Bottom Destacker (Model DST)

The Model DST is a universal destacking system with bottom discharge, user-friendly controls, and a strong focus on operator safety, running vibration-free thanks to its solid frame. Its elevating conveyor acts as a unique junction between systems at different heights, often enabling a more compact overall system footprint.

Fail-safe gripper holds the stack securely even during power failure or compressed air loss

Integrated light barriers, internally routed cabling, and multiple access doors for safety and easy maintenance

High-quality Intralox rubber belts for precise crate positioning and low-maintenance durability

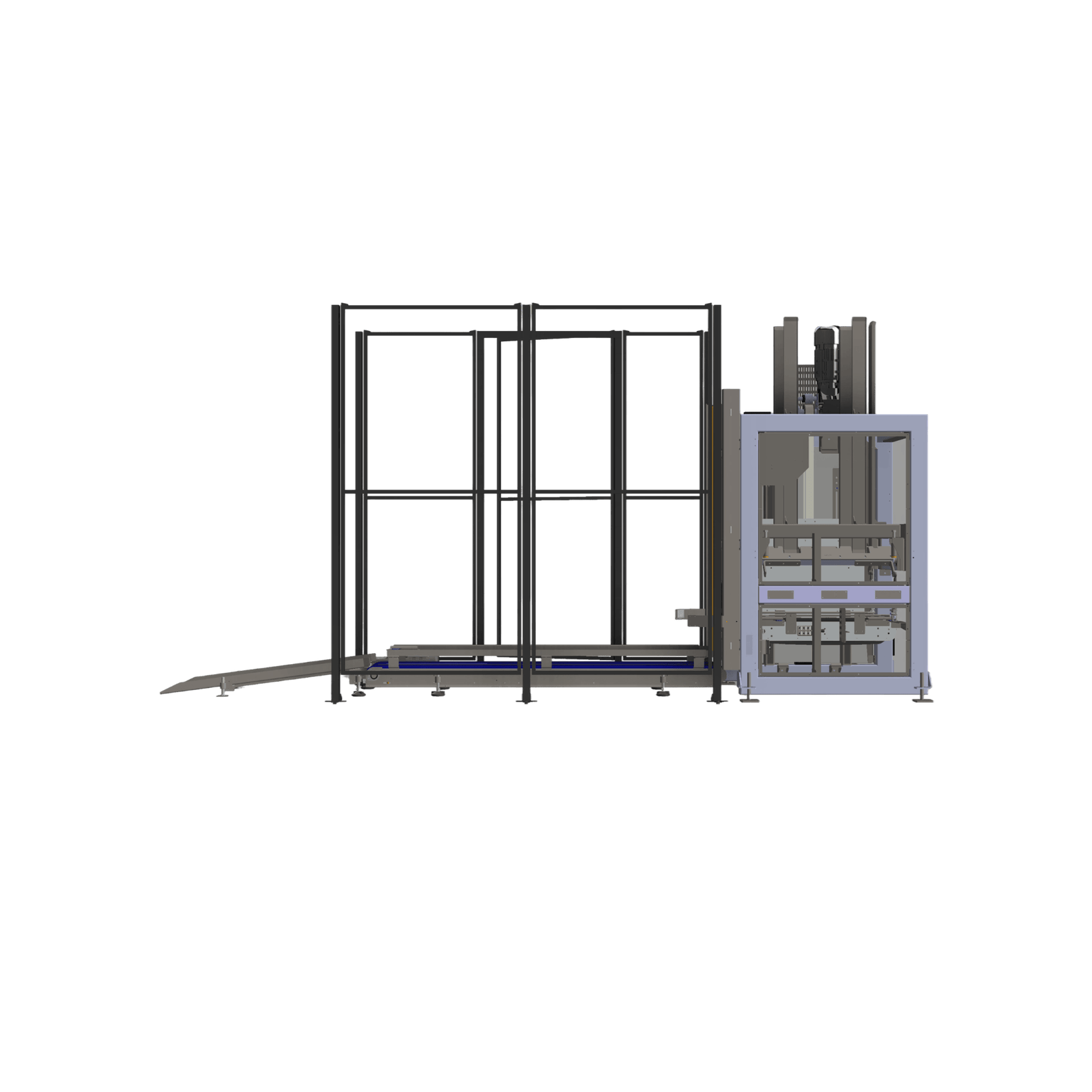

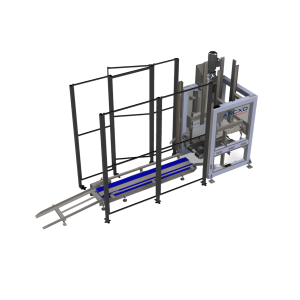

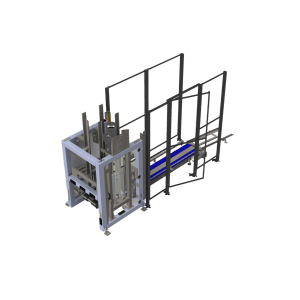

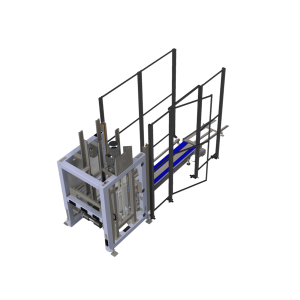

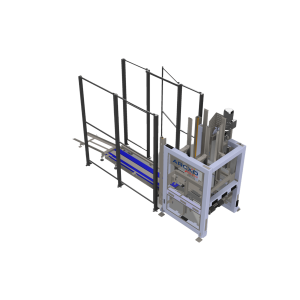

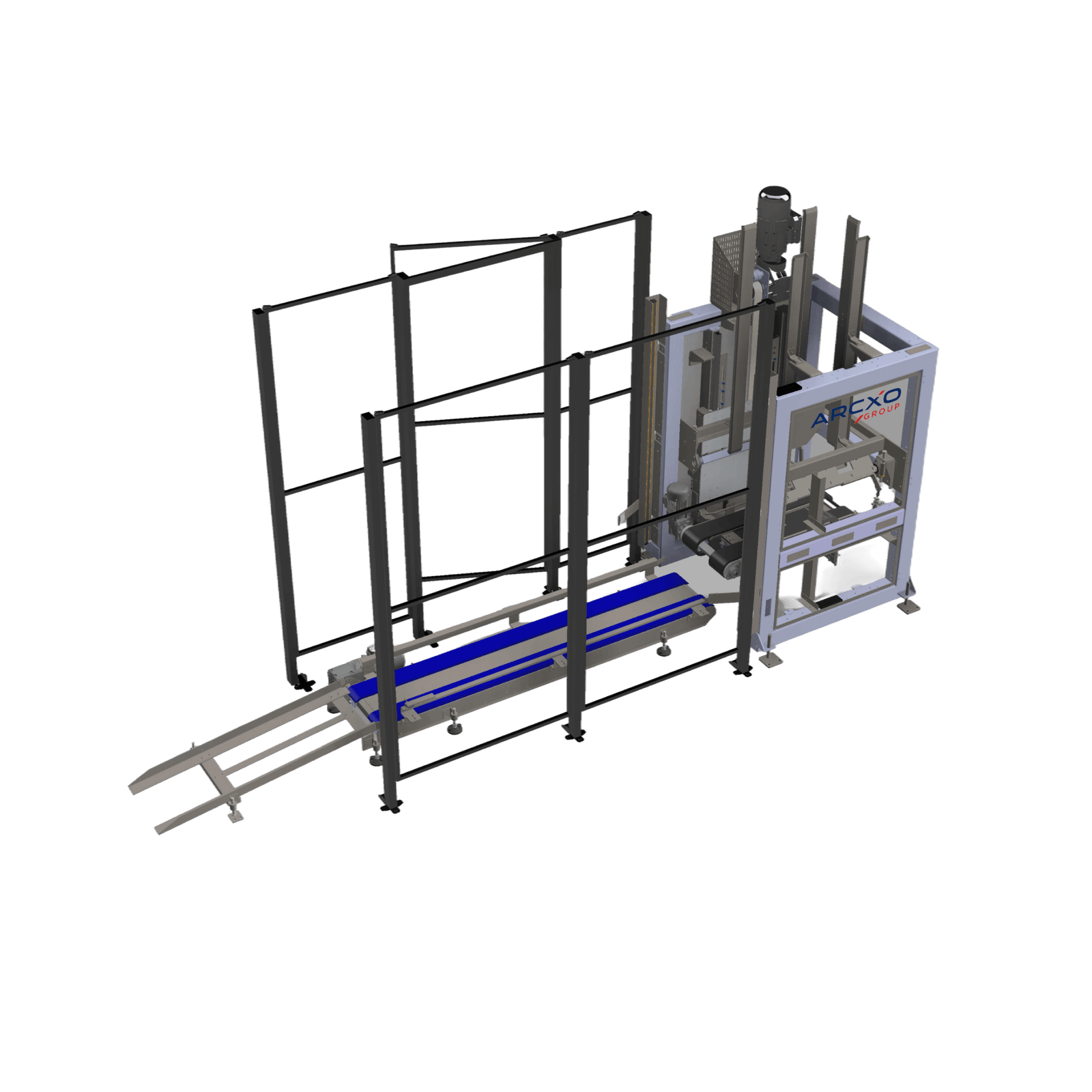

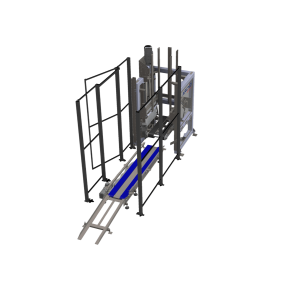

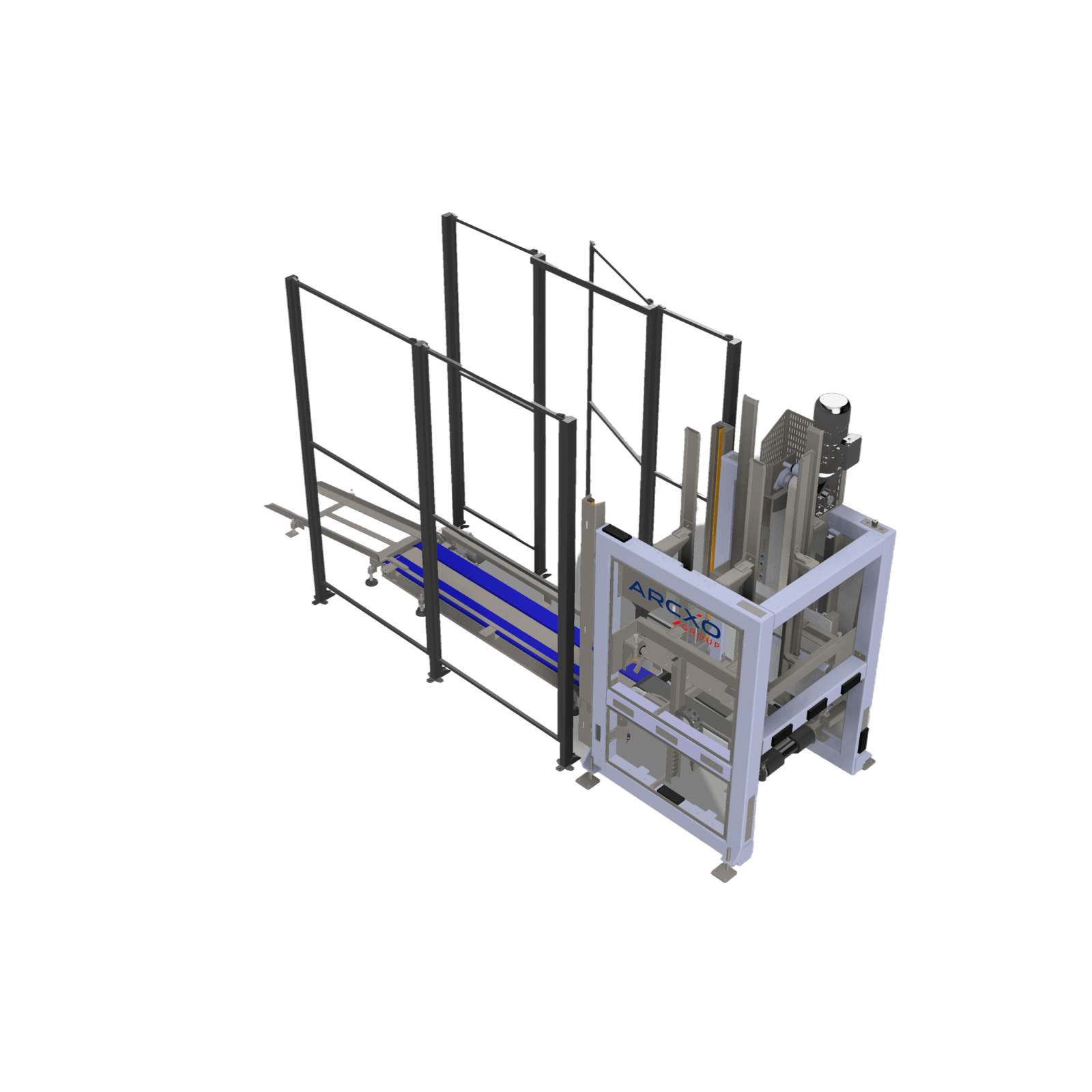

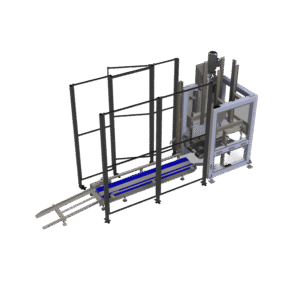

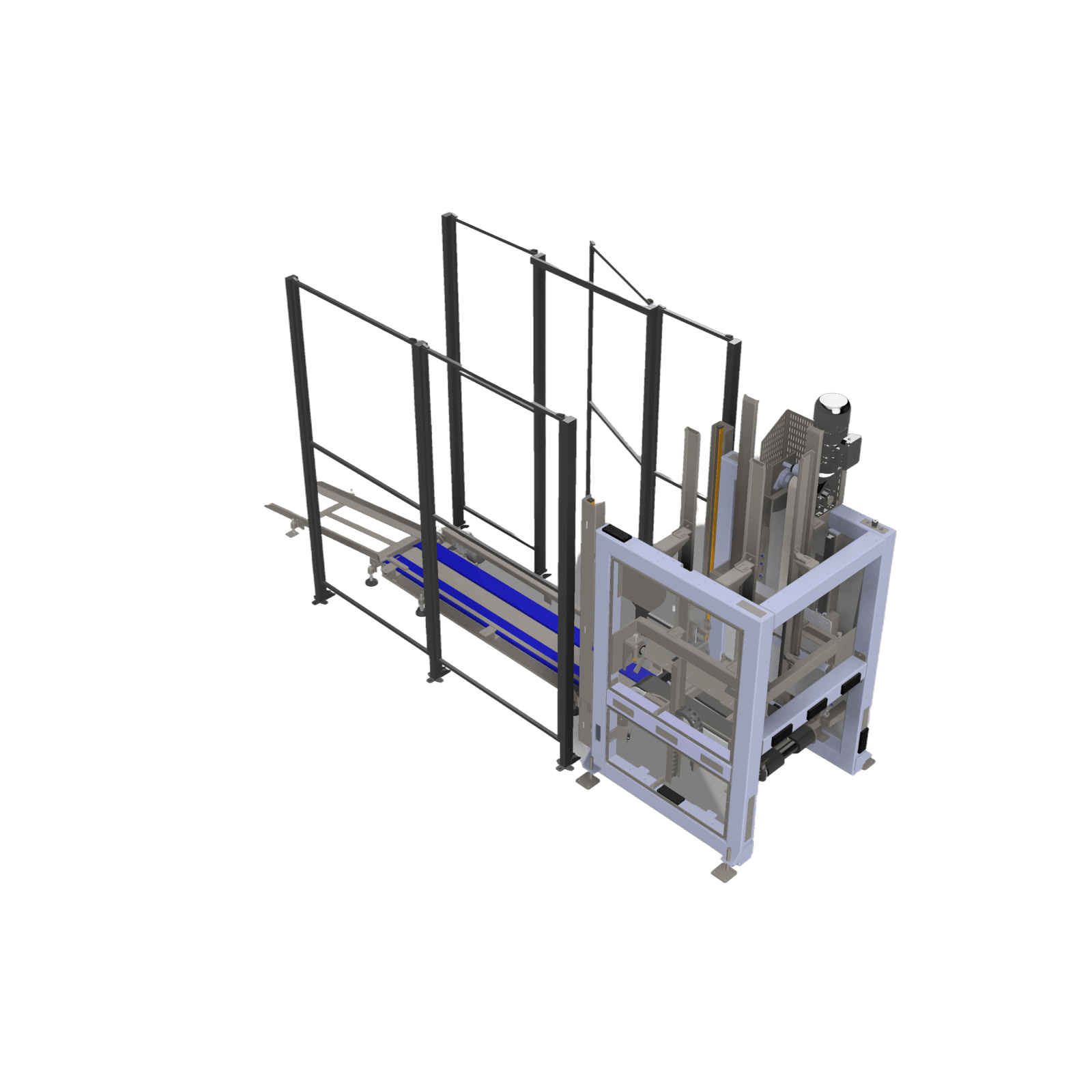

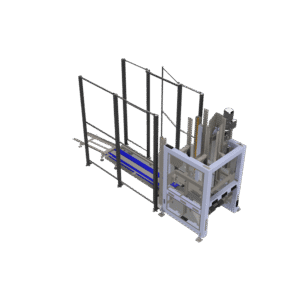

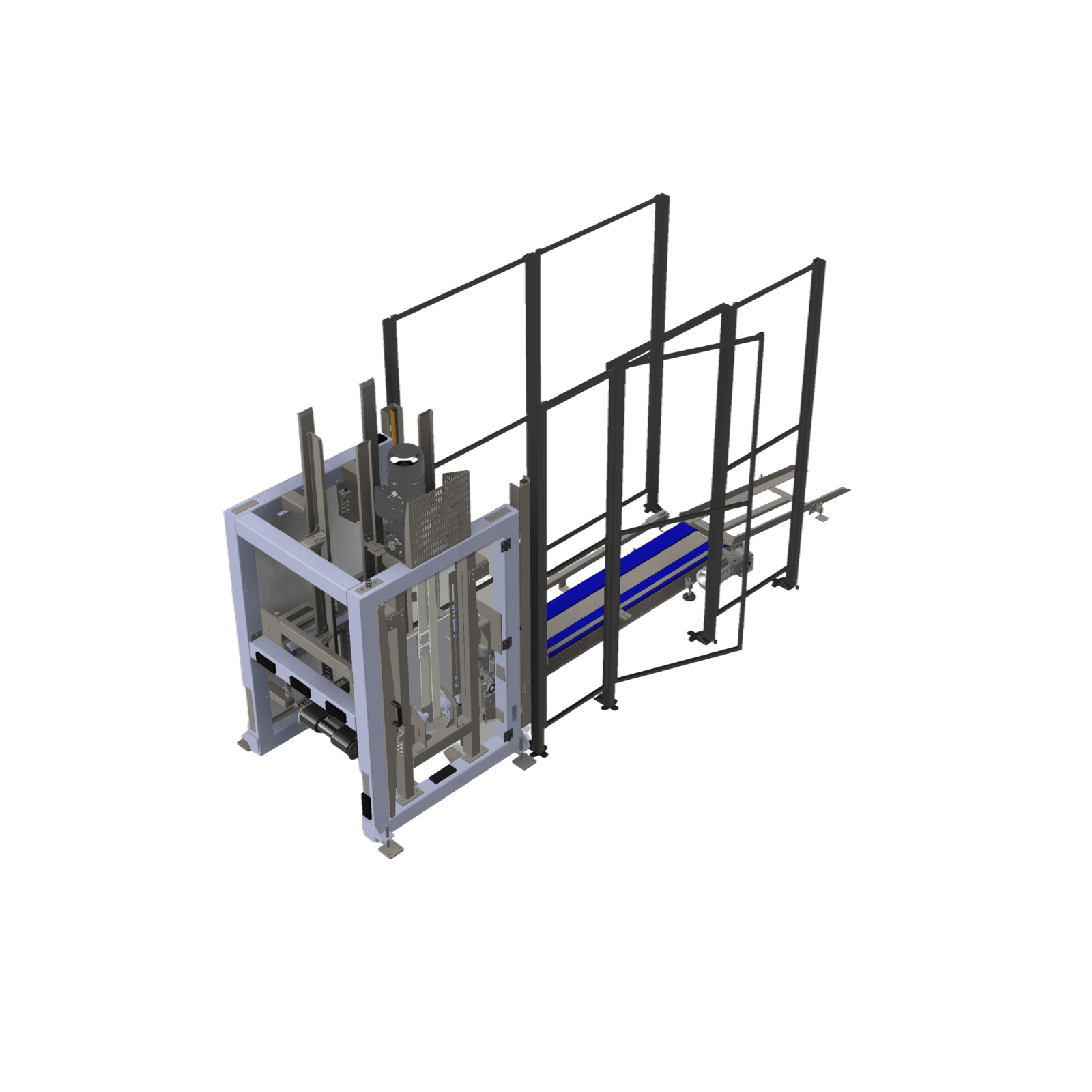

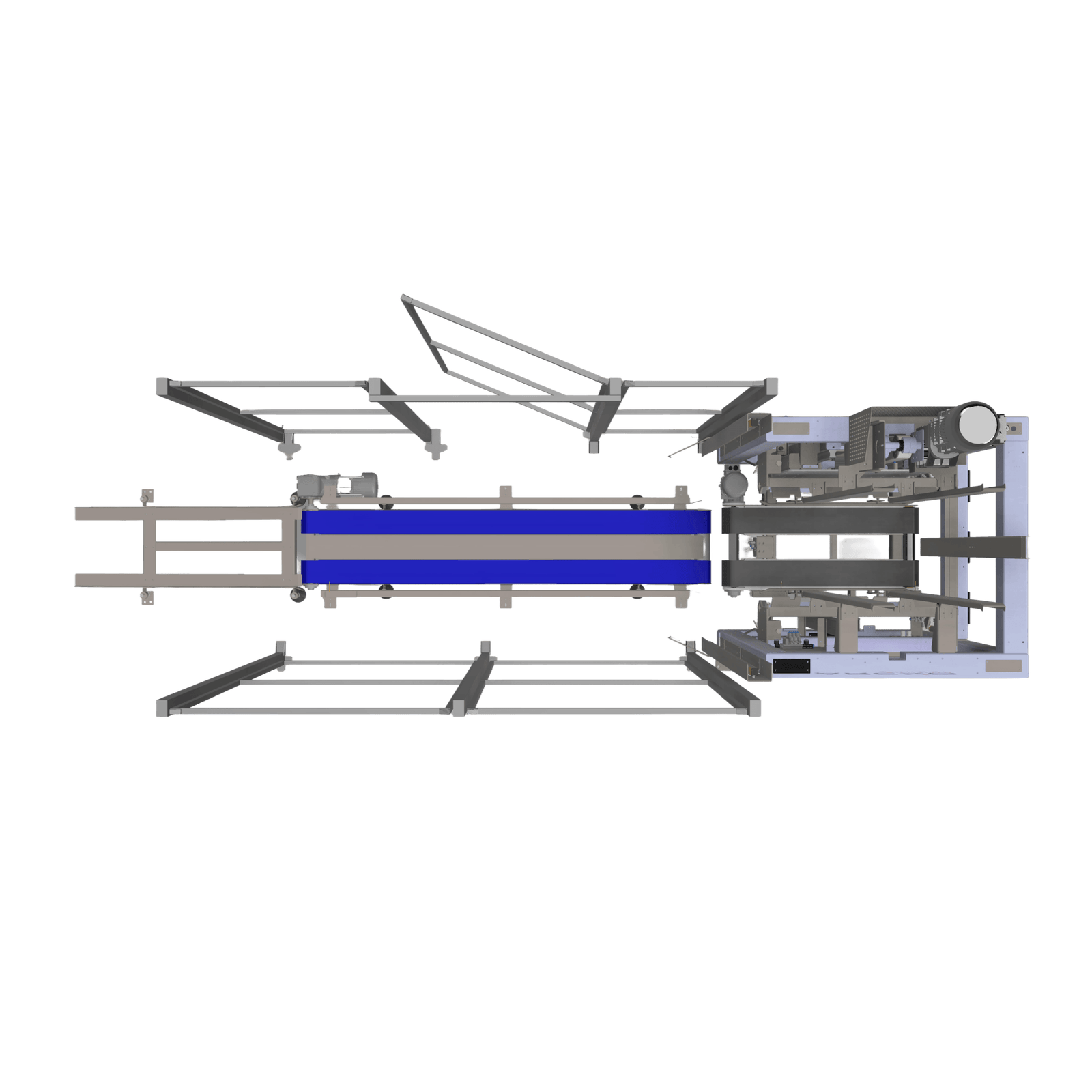

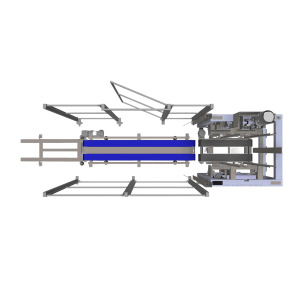

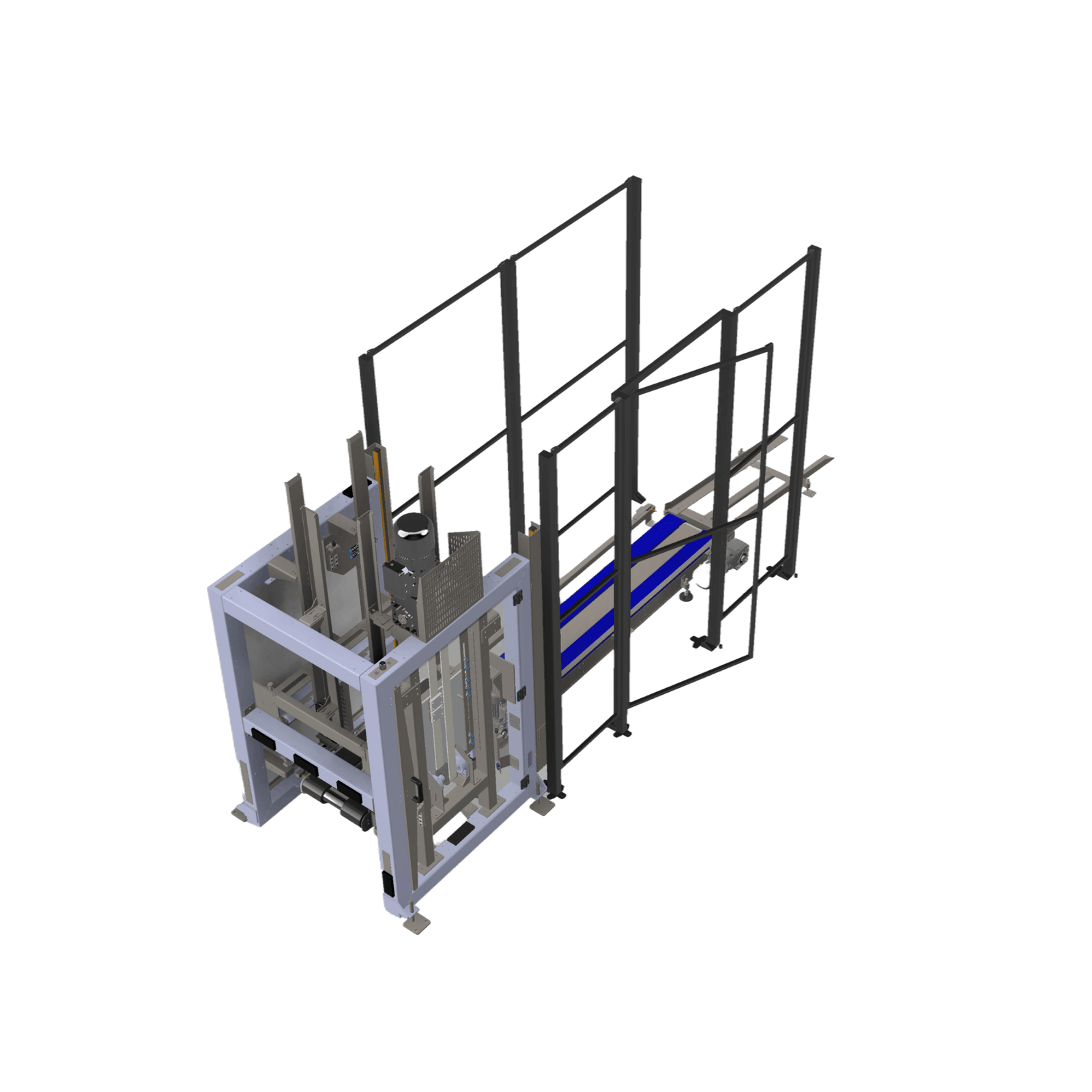

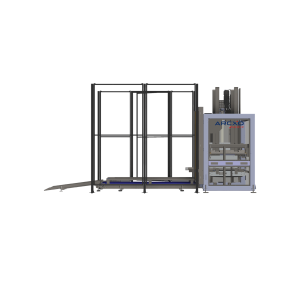

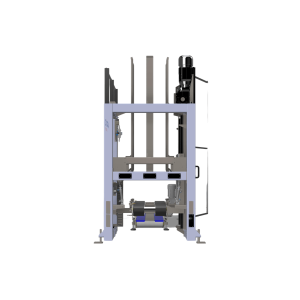

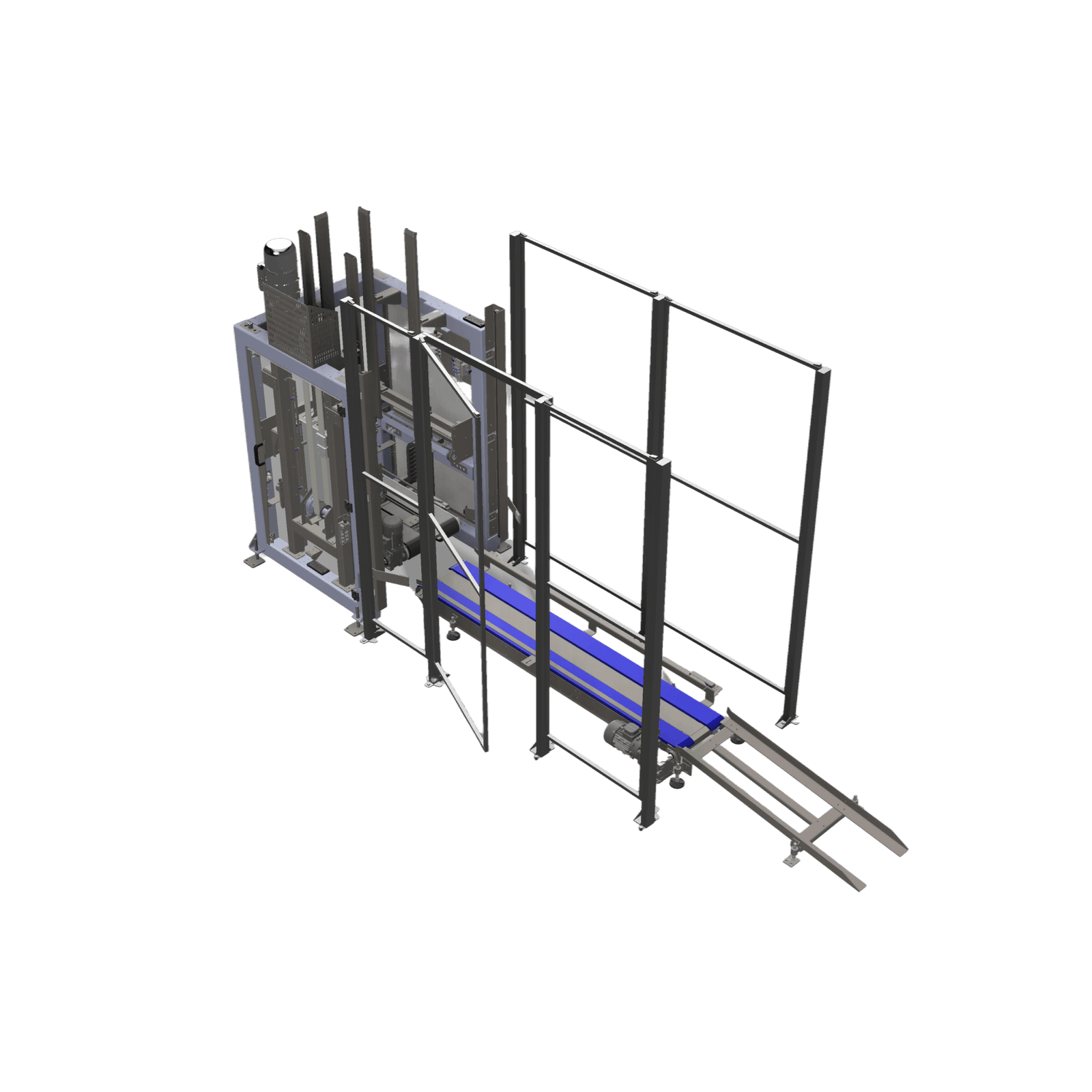

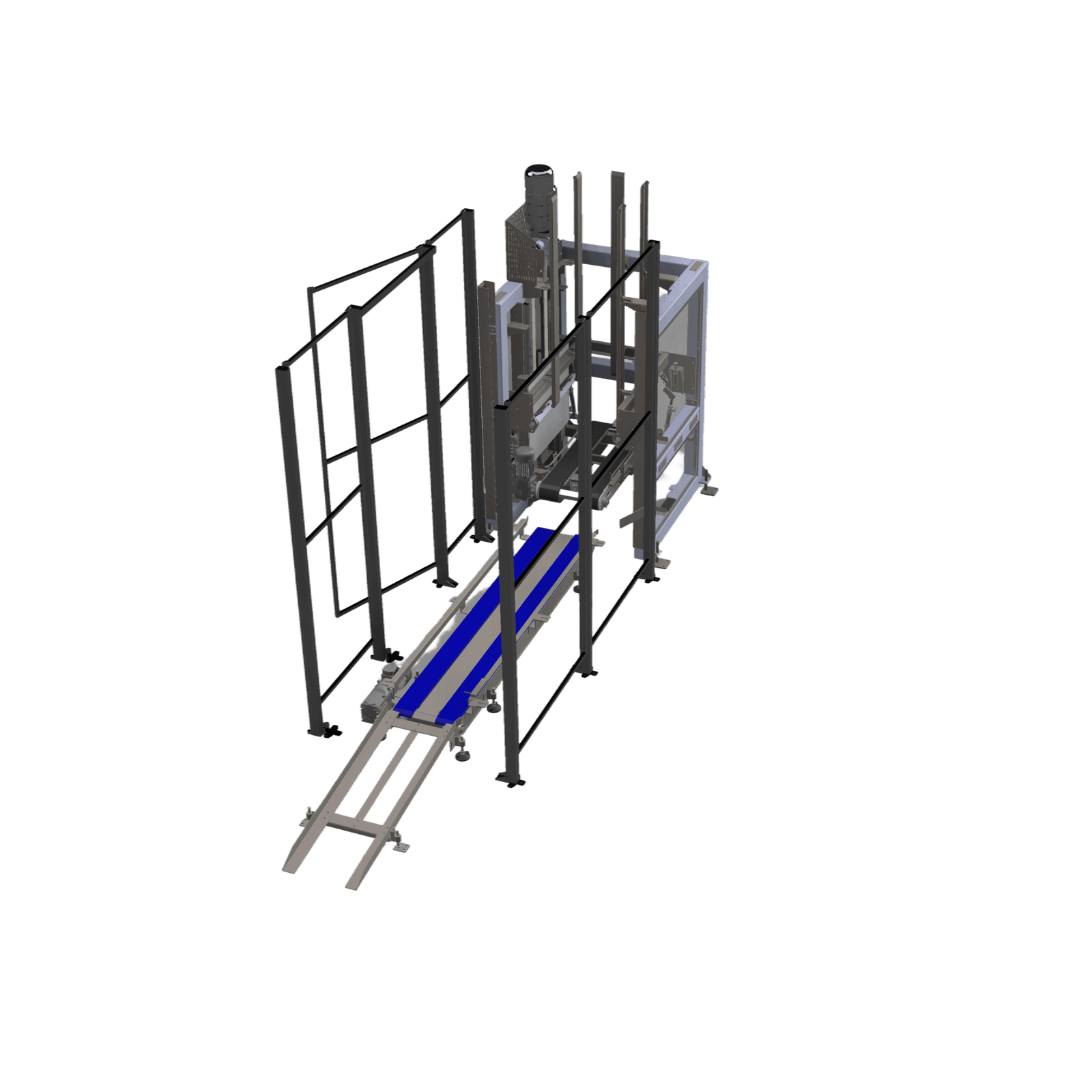

Bottom Stacker (Model ST)

The Model ST is a universal stacking system with user-friendly controls and a strong focus on operator safety, running vibration-free thanks to its solid frame. Its elevating conveyor acts as a unique junction between systems at different heights, often enabling a more compact overall system footprint.

Fail-safe gripper holds the stack securely even during power failure or compressed air loss

Integrated light barriers and internally routed cabling for safety and easy cleaning

High-quality Intralox rubber belts for precise crate positioning and low-maintenance durability

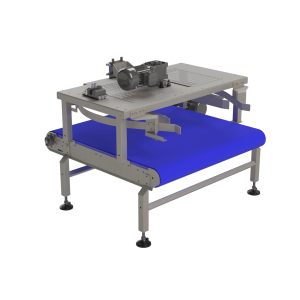

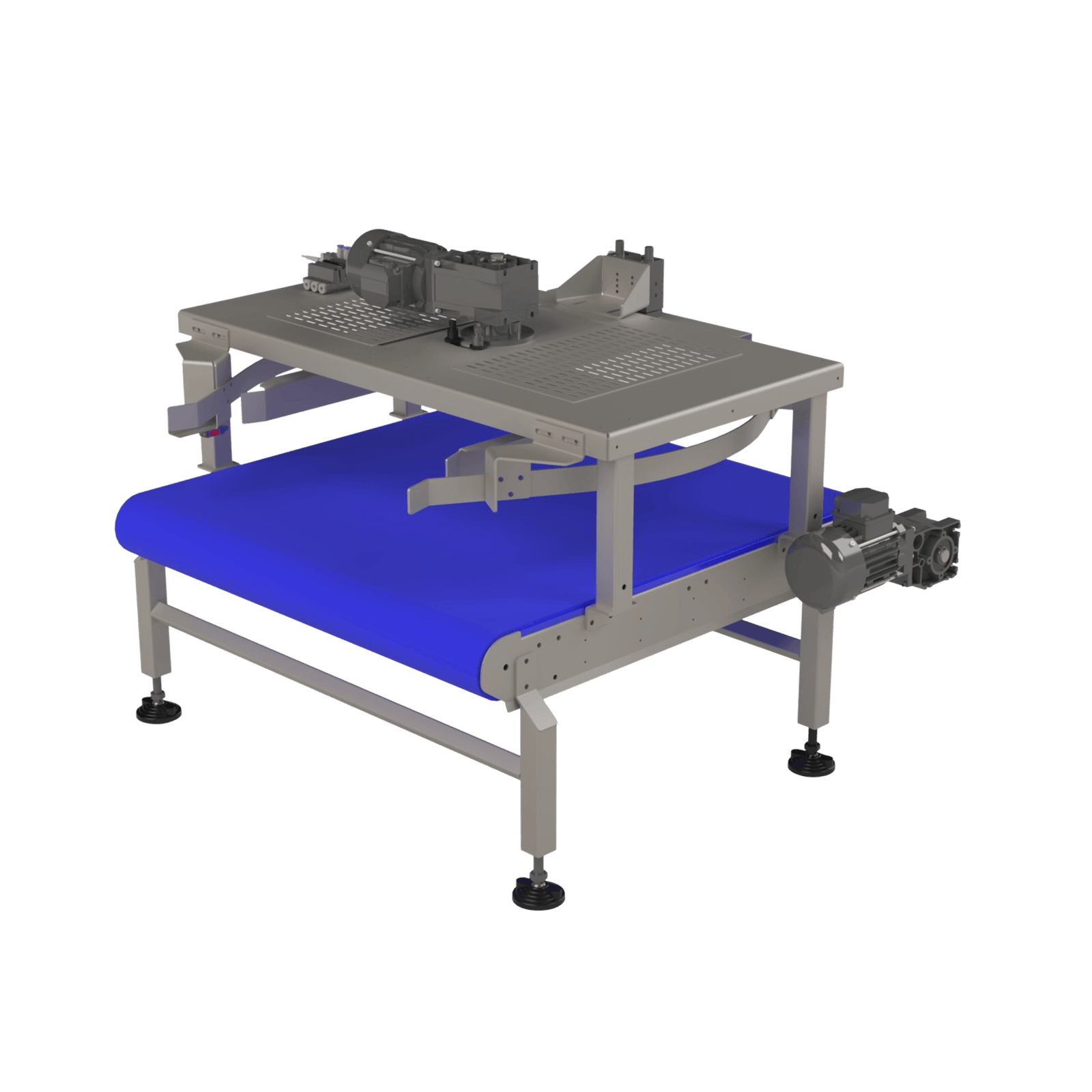

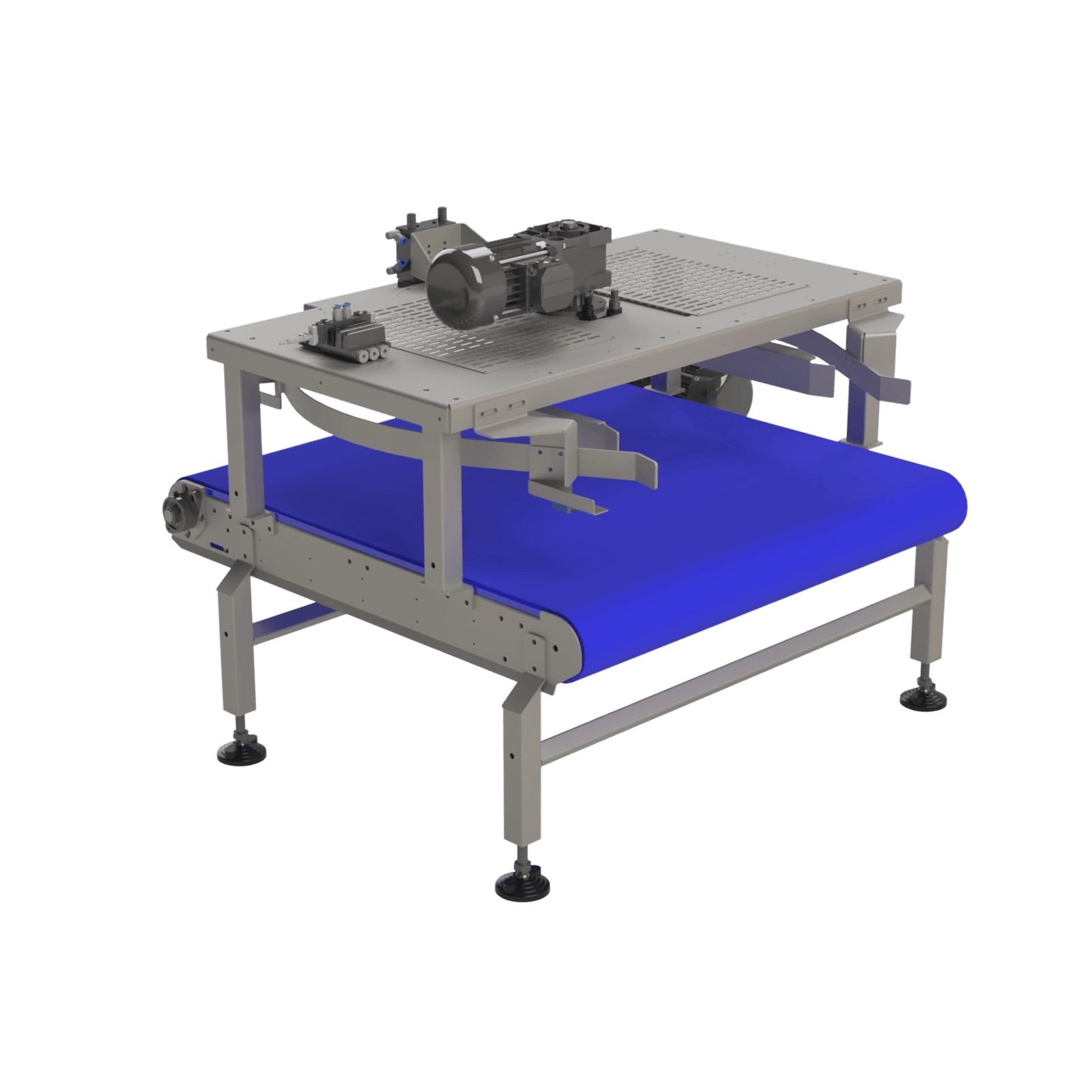

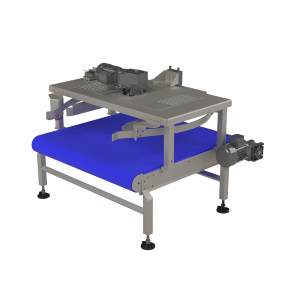

Box Turning Device Bottom

The Box Turning Device provides a reliable and precise servo-driven solution for turning crates 90 degrees, whether they arrive with the long or short side leading. Its fully stainless-steel design ensures durability and easy maintenance in demanding industrial environments.

Servo-driven 90-degree turning for consistent, precise crate orientation

Capacity of up to 20 boxes per minute with integrated stop for incoming crates

Full stainless-steel construction for durability and easy maintenance

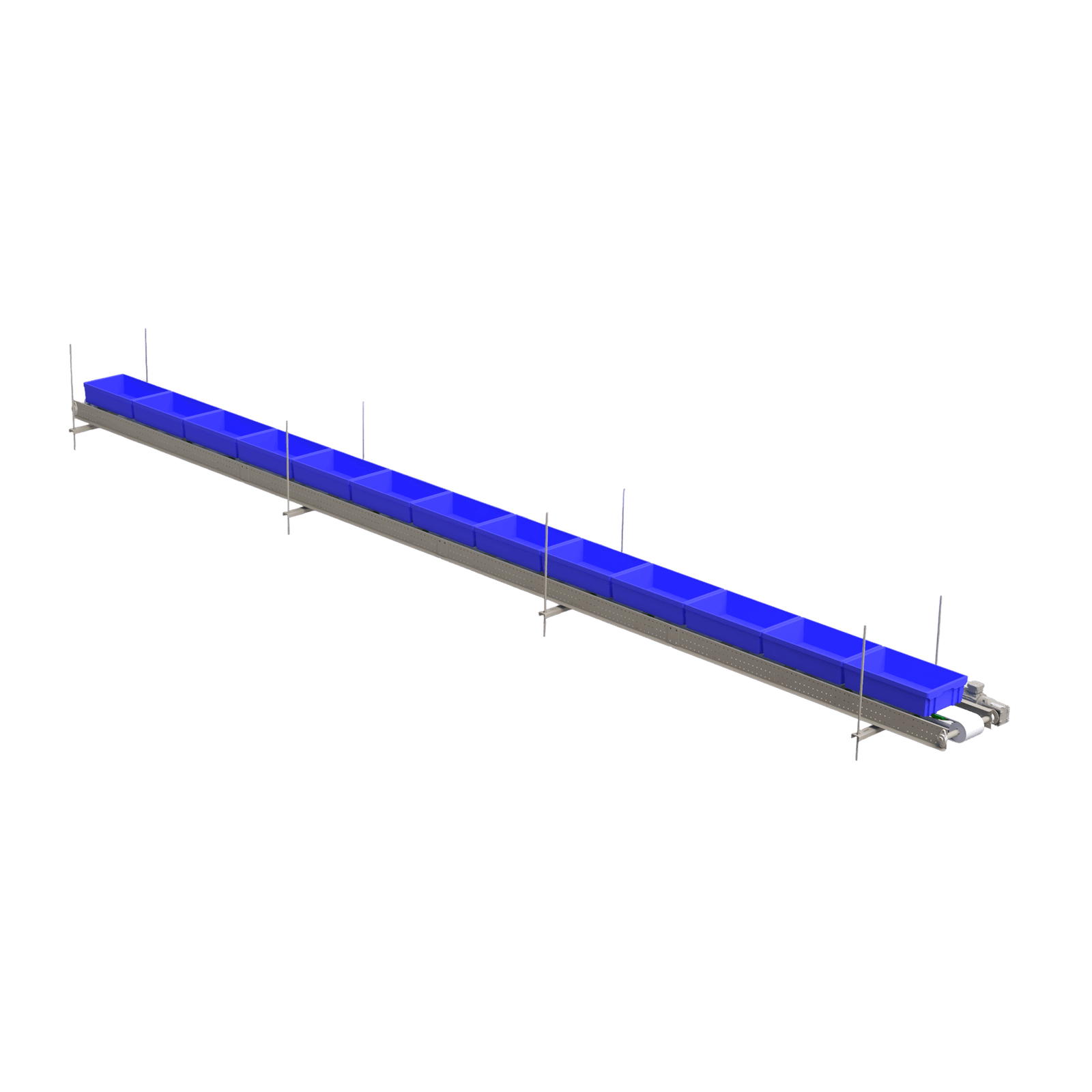

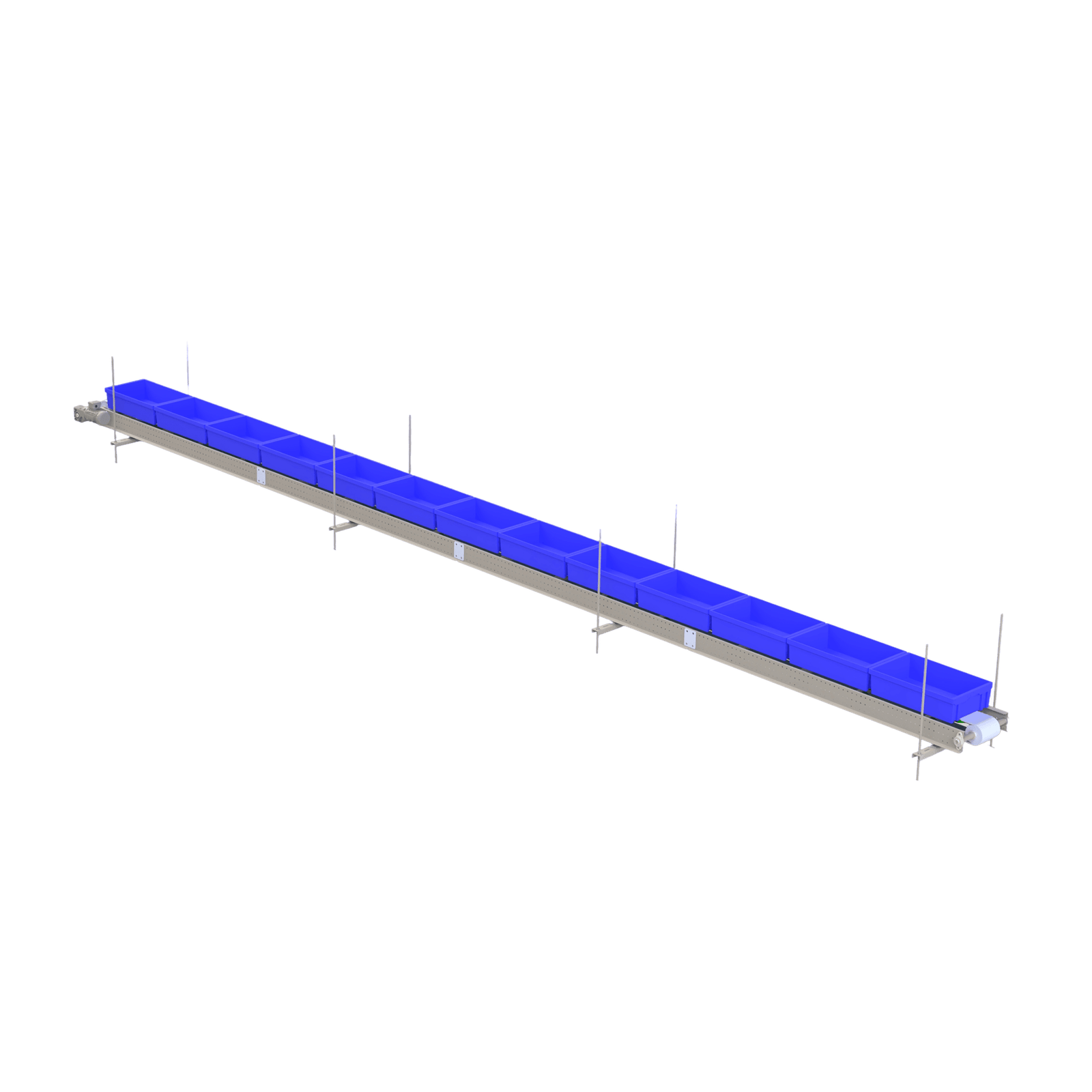

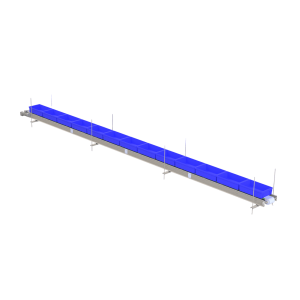

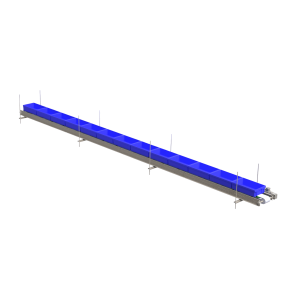

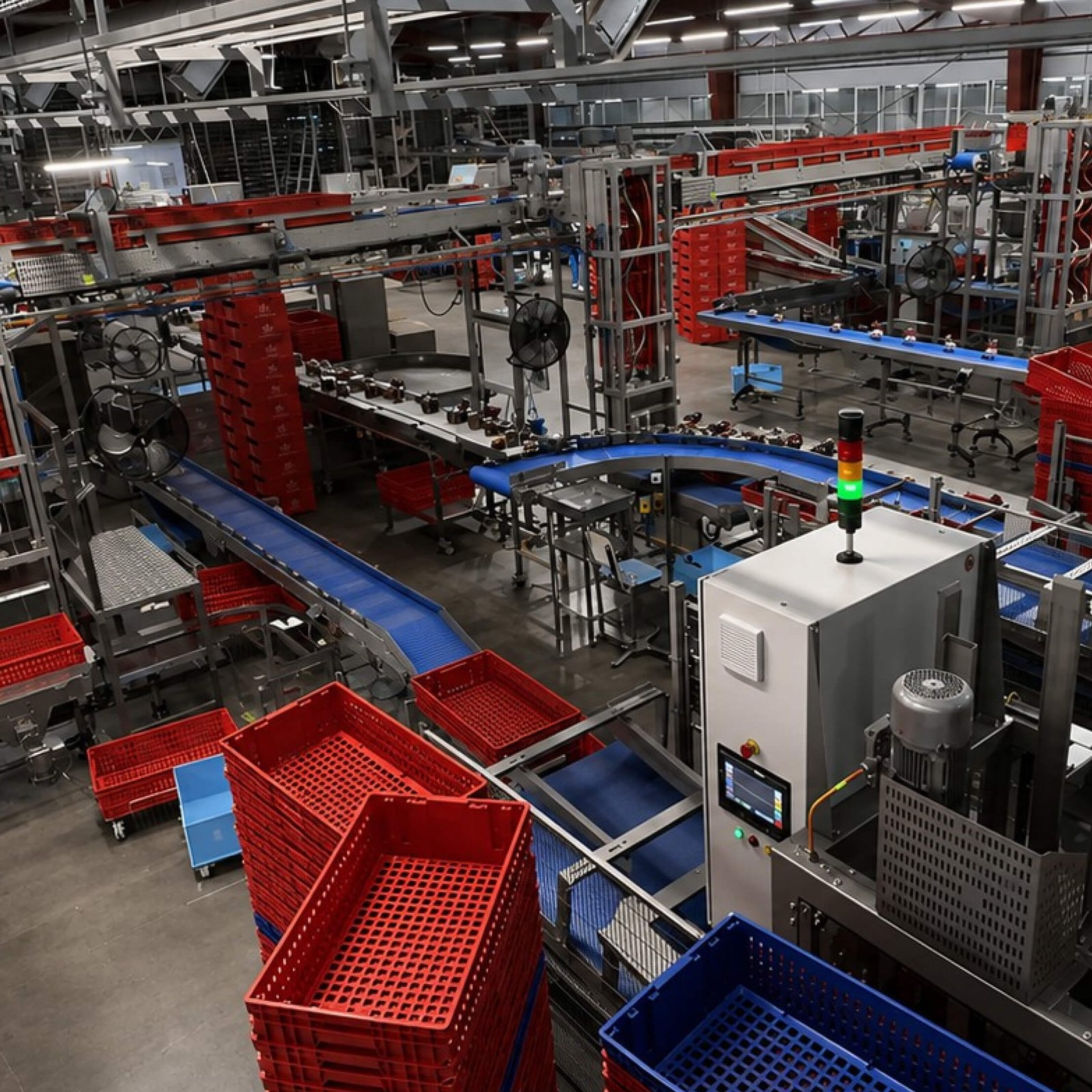

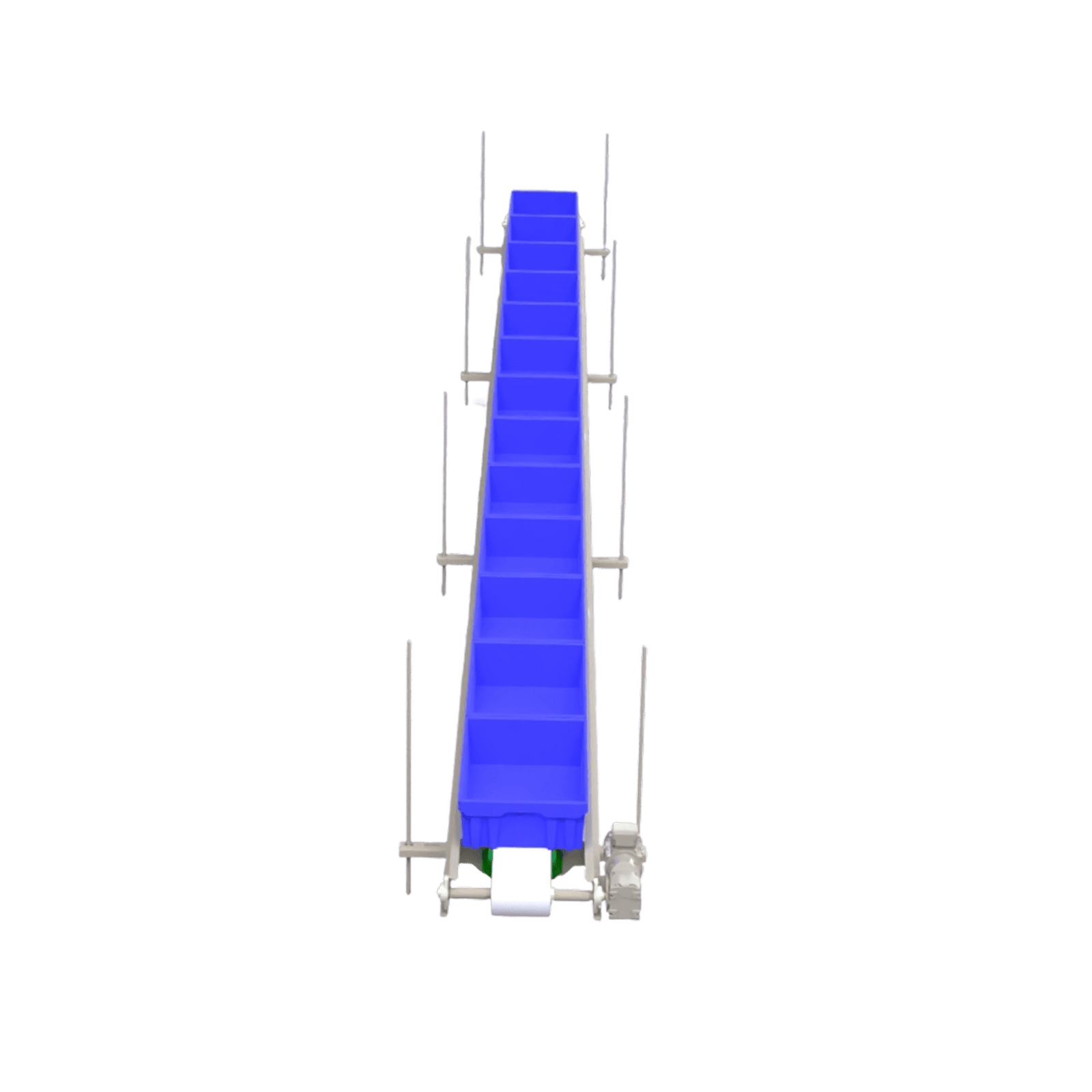

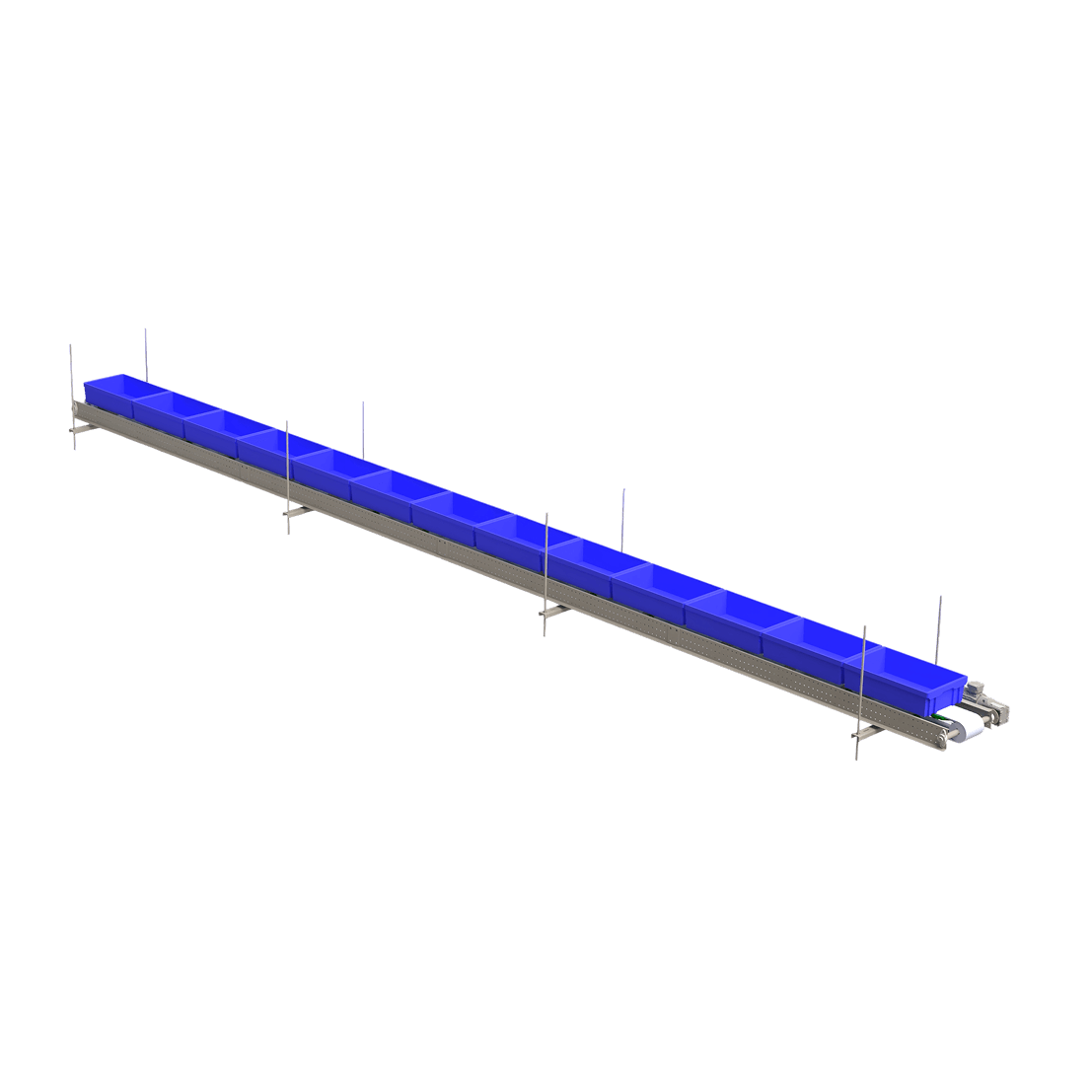

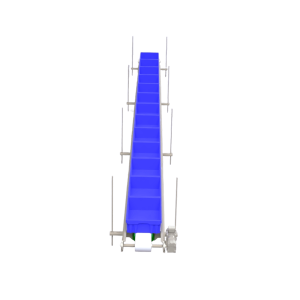

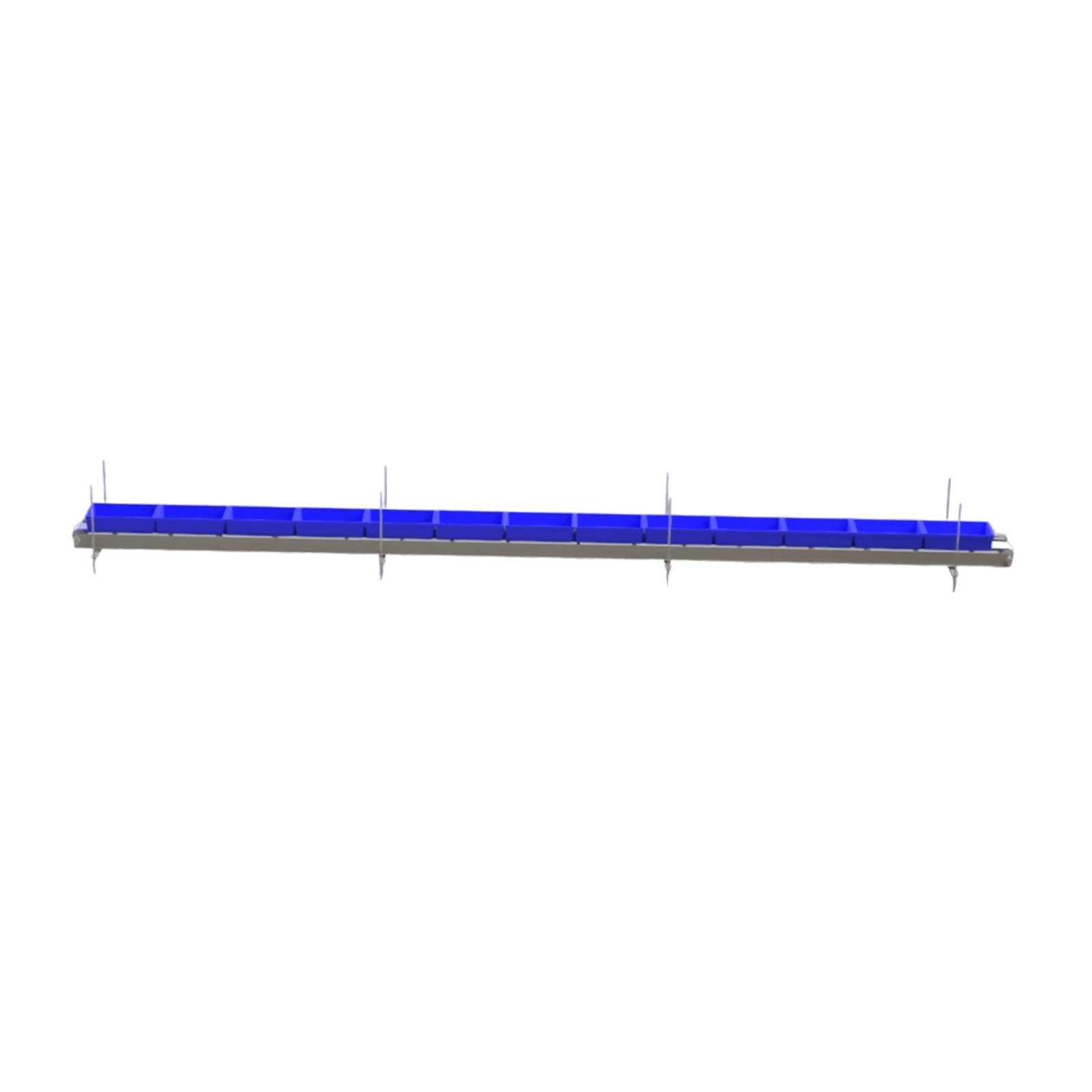

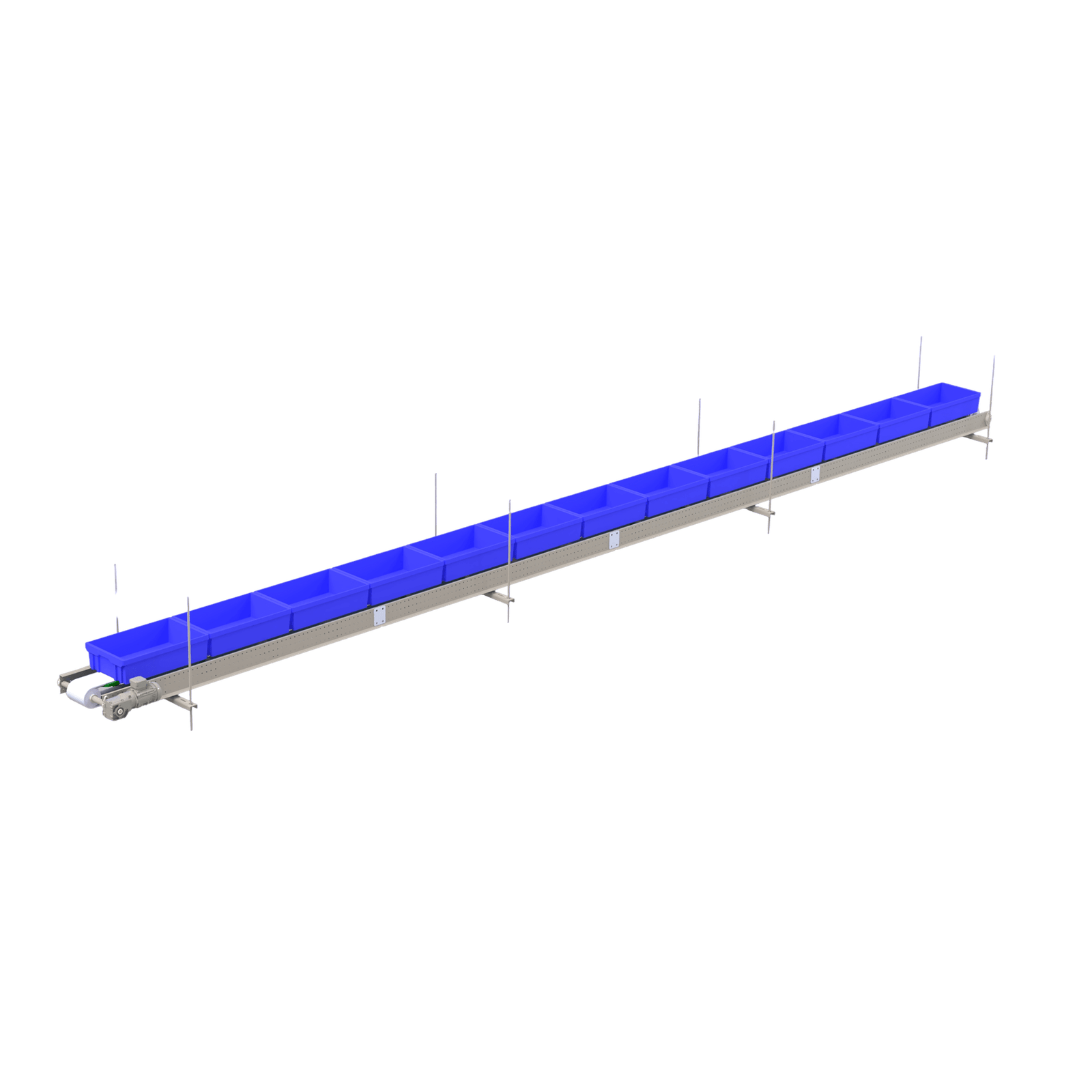

Conveyor systems for crates

The Crate Conveyor System reliably transports plastic crates throughout the production facility, seamlessly connecting stackers, destackers, washers, filling lines, and palletizing systems. Its modular design adapts to any plant layout while ensuring continuous, automated material flow.

Modular configuration with straight sections, curves, transfers, elevators, and buffer zones

Robust stainless-steel construction with servo-controlled drives where required

Smooth, low-maintenance, energy-efficient operation across a wide range of crate sizes and capacities

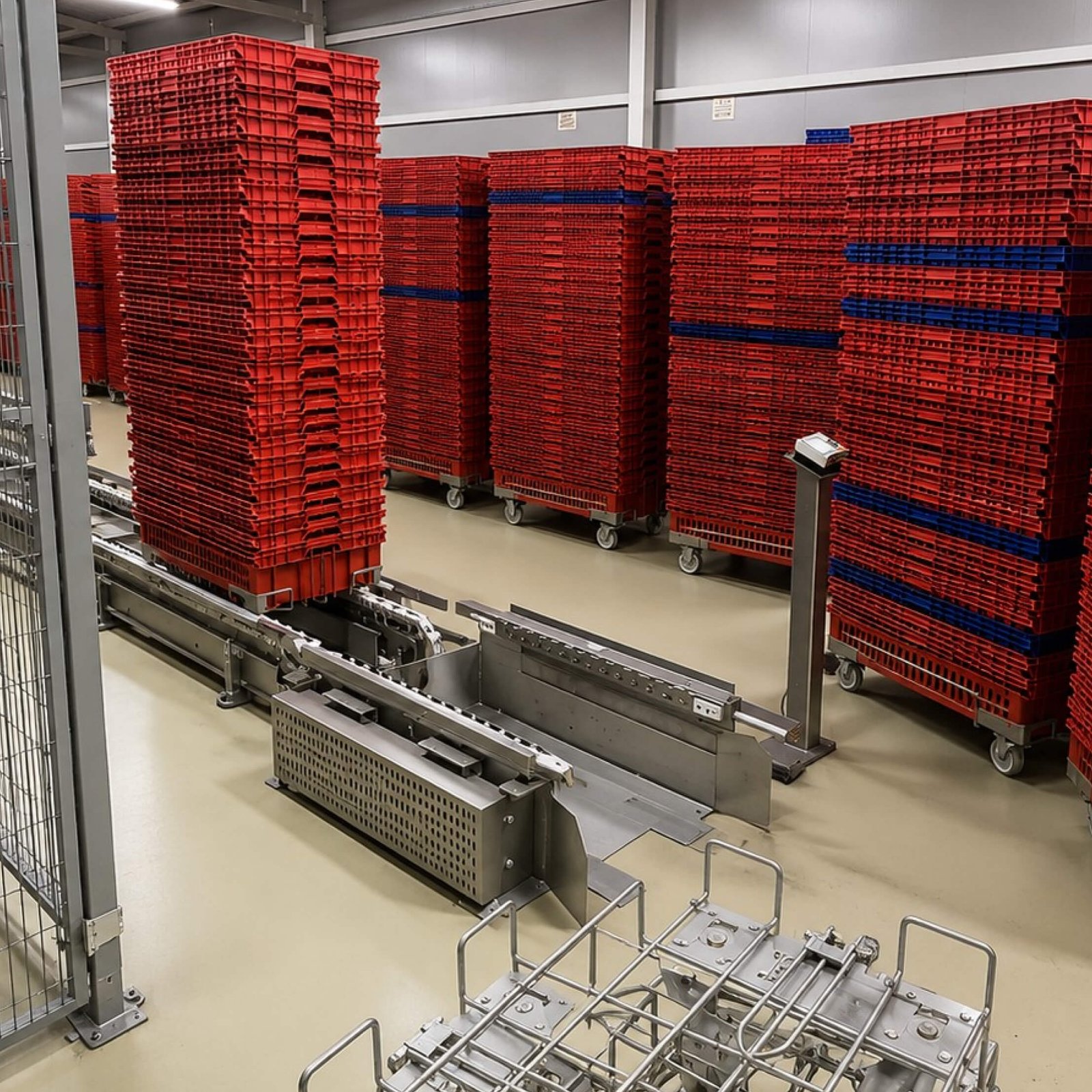

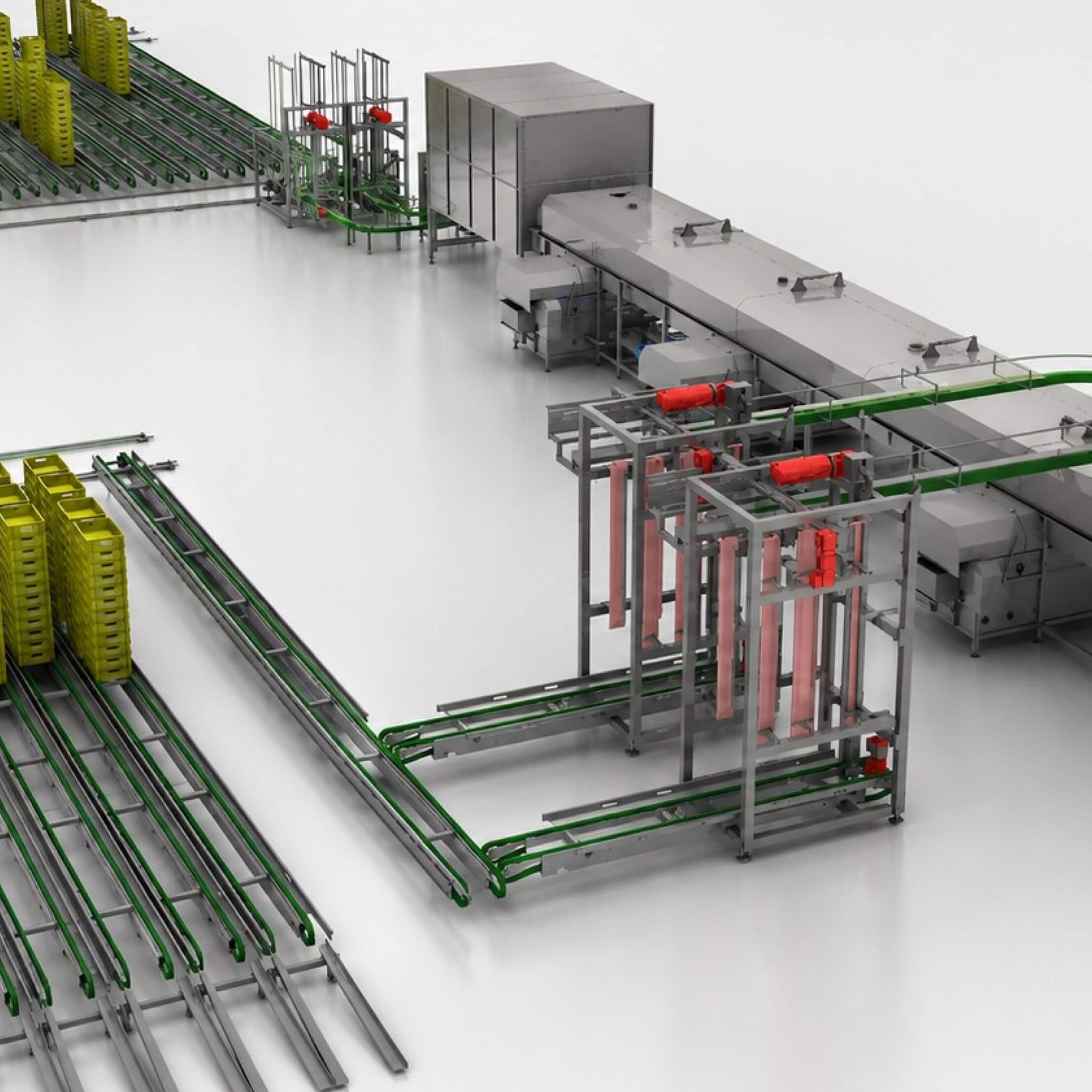

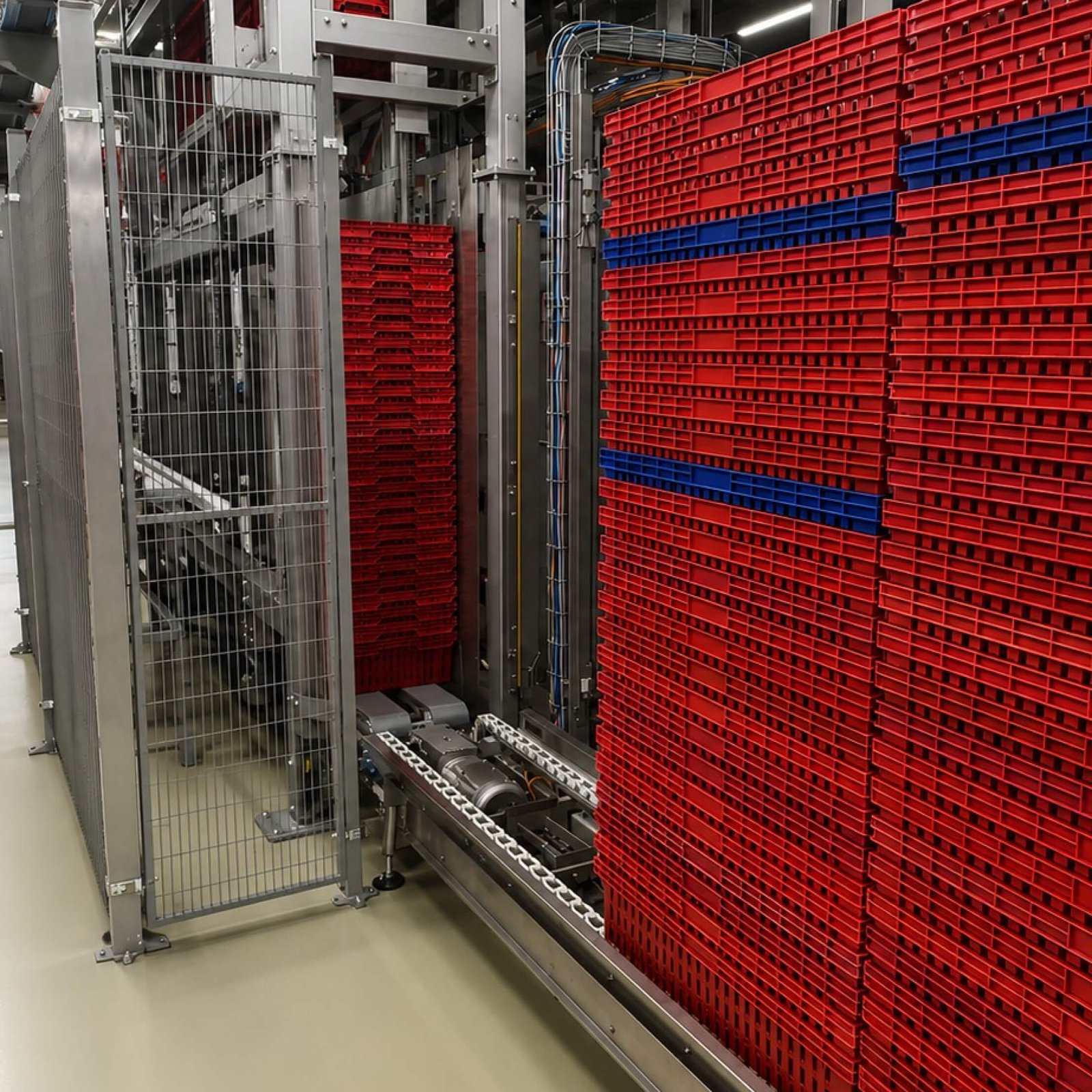

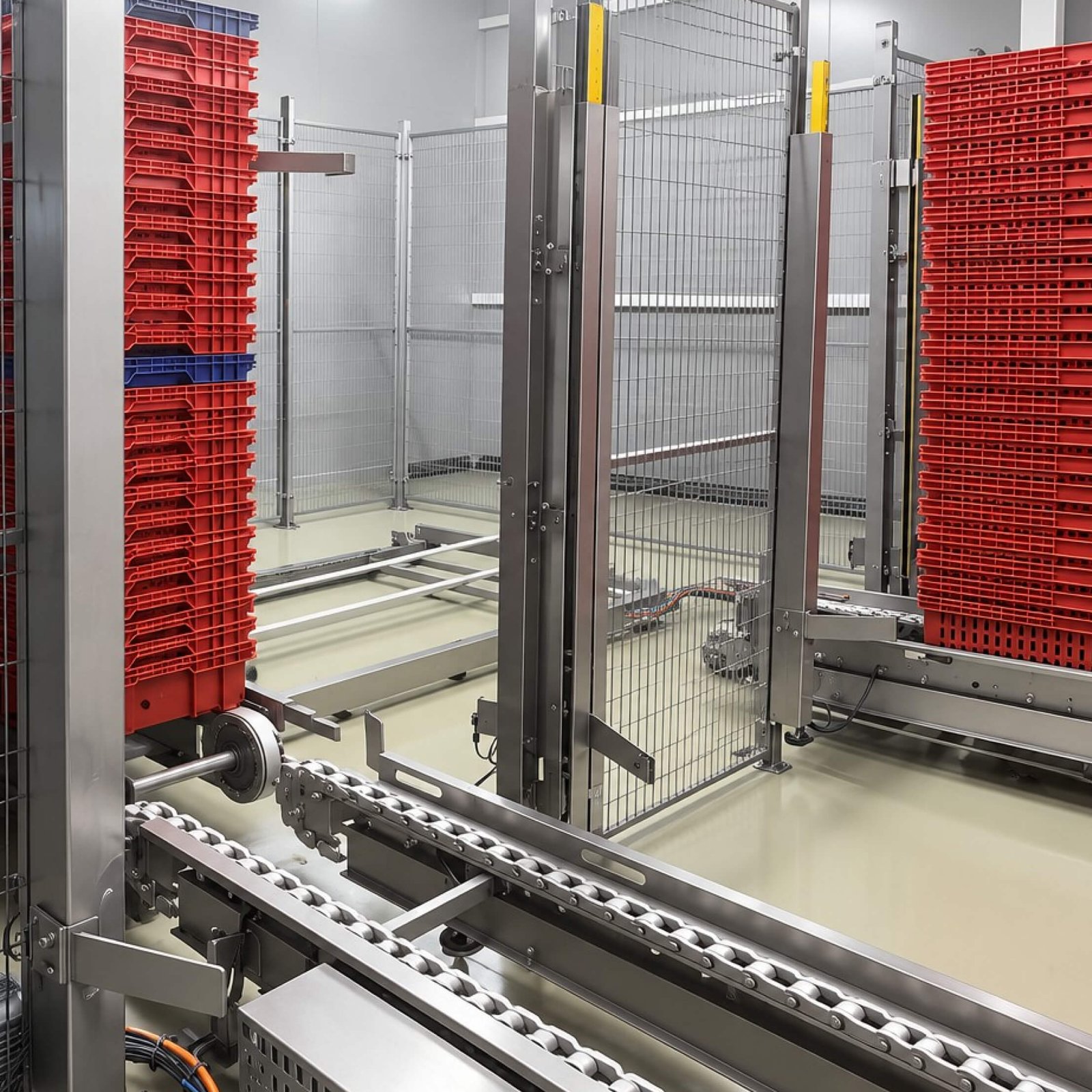

Crate Storage

The Crate Storage system provides automated accumulation, buffering, and temporary storage of stacked plastic crates, ensuring a continuous and balanced flow between upstream and downstream equipment. Its robust construction is built for long service life under demanding industrial conditions.

Heavy-duty double plastic chain conveyors designed specifically for stacked crate handling

Stainless-steel construction with galvanized steel sprockets and heavy-duty conveyor chains

Low-friction plastic sliding guides for minimal chain wear, reduced maintenance, and energy-efficient transport

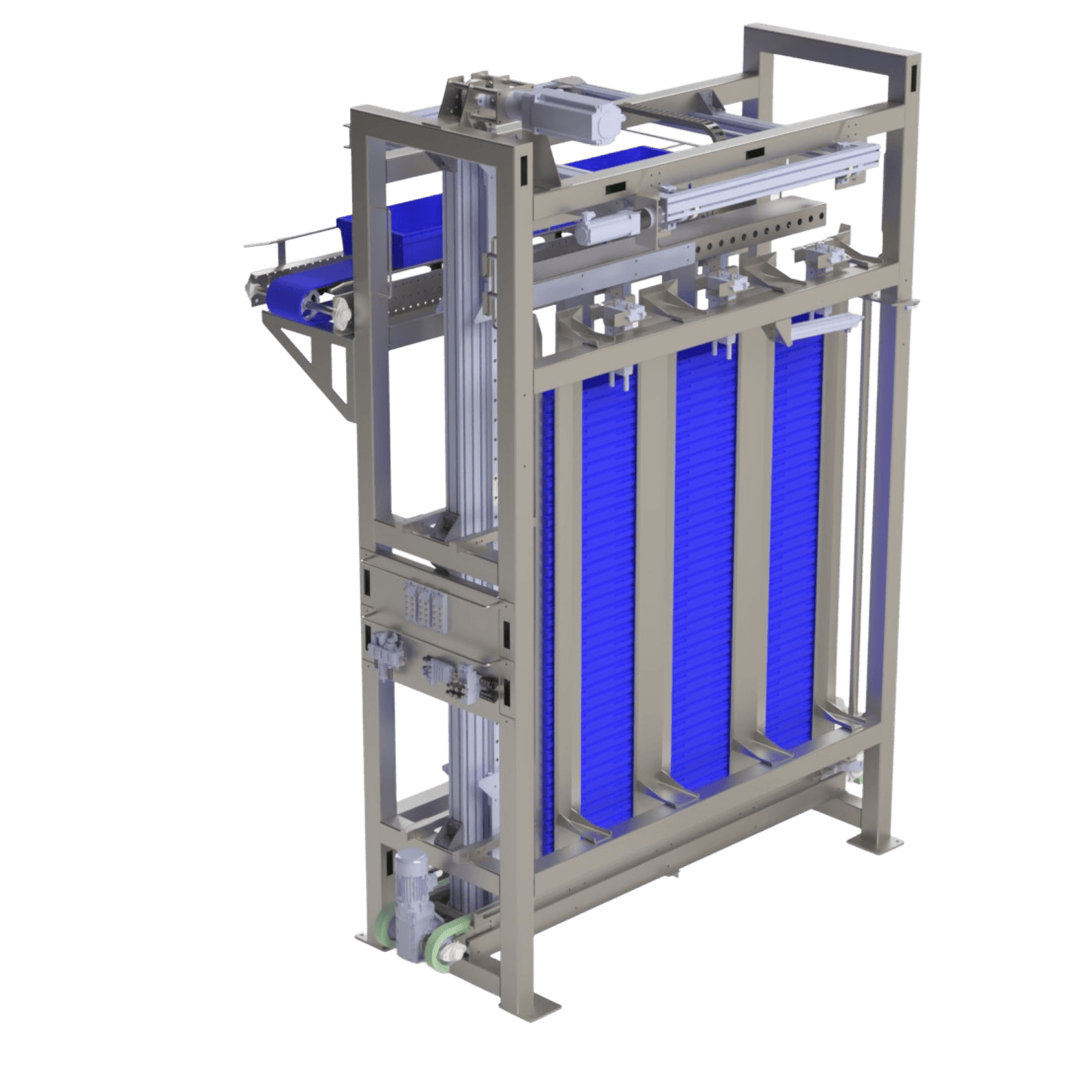

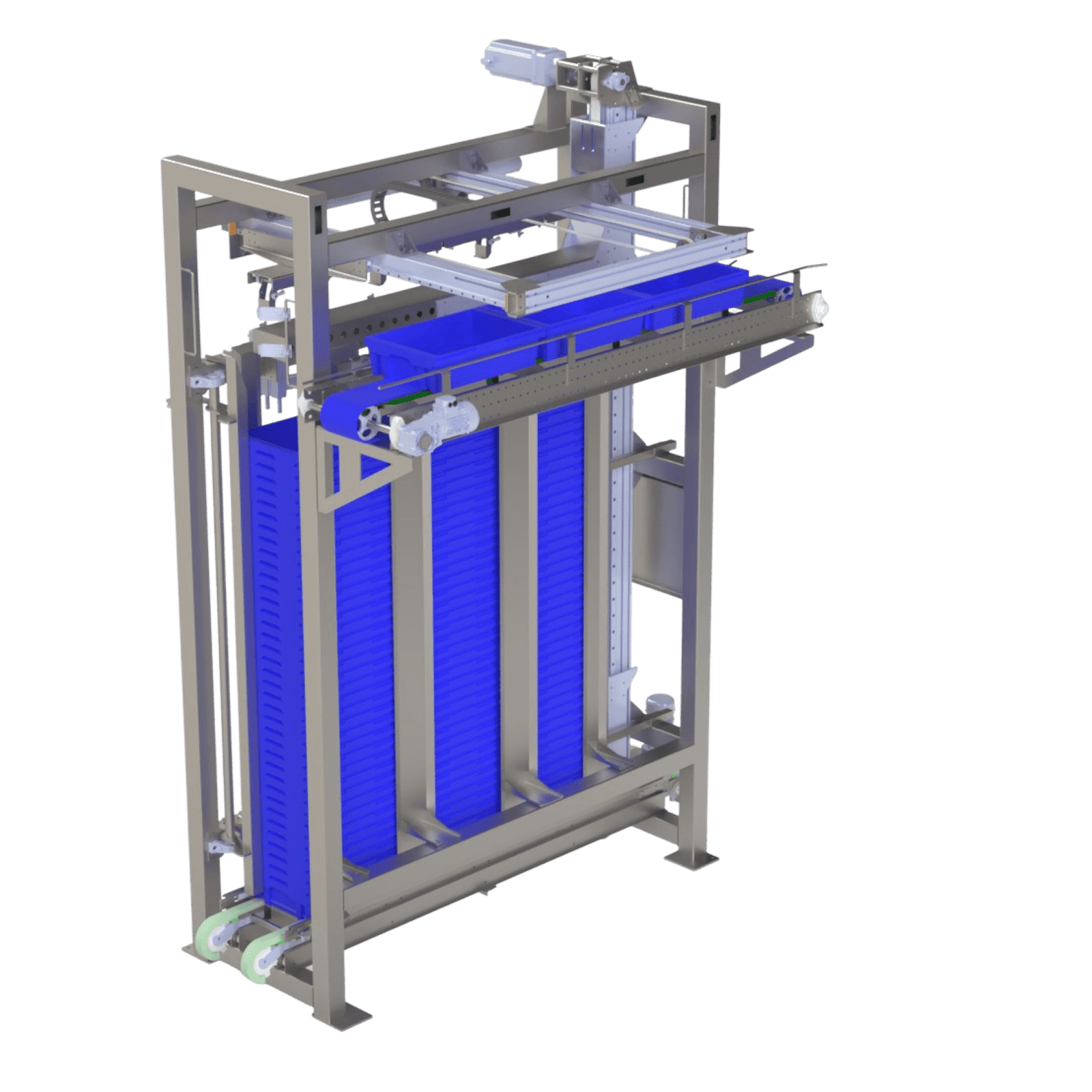

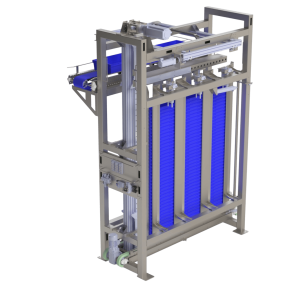

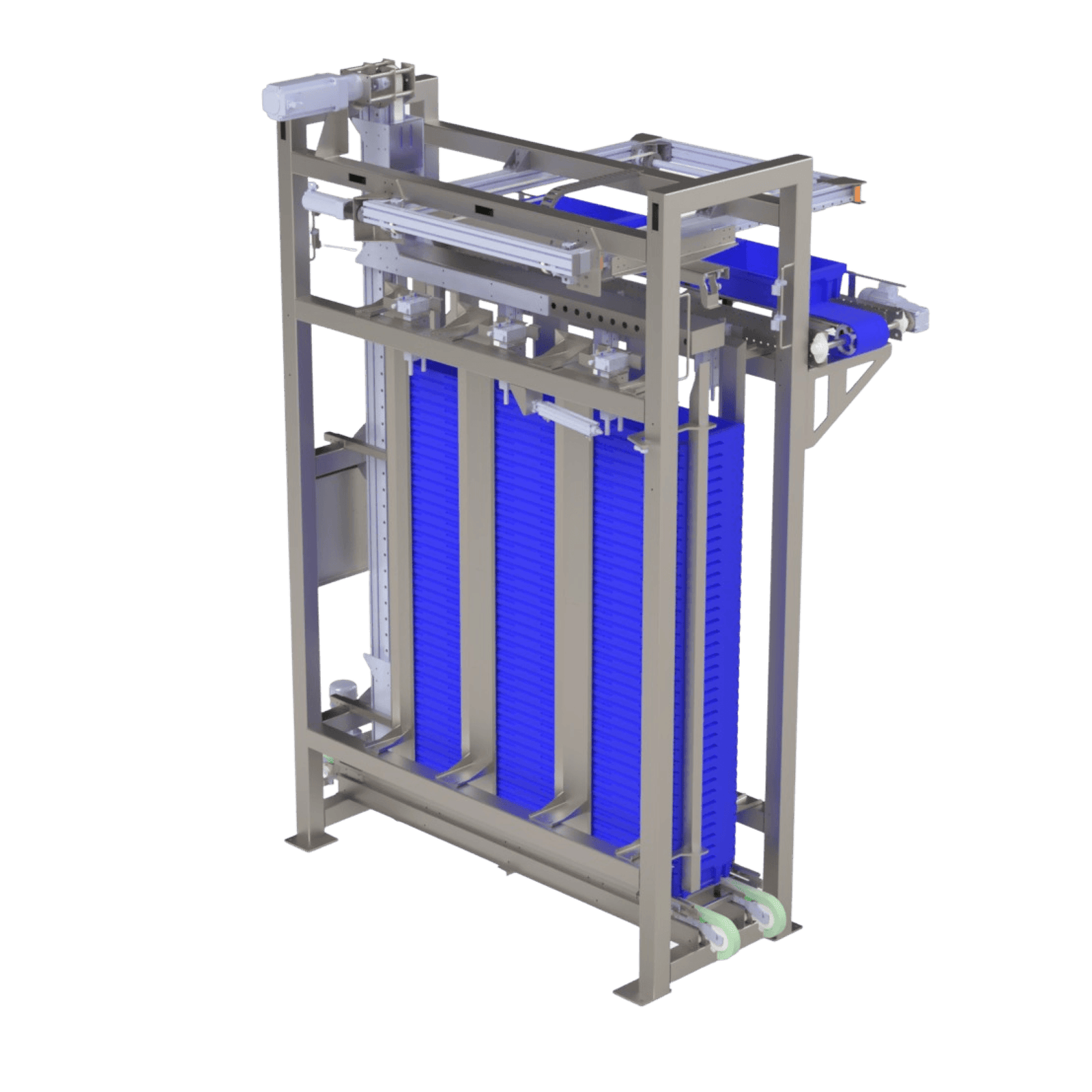

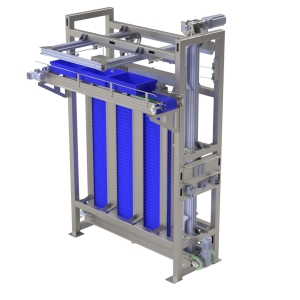

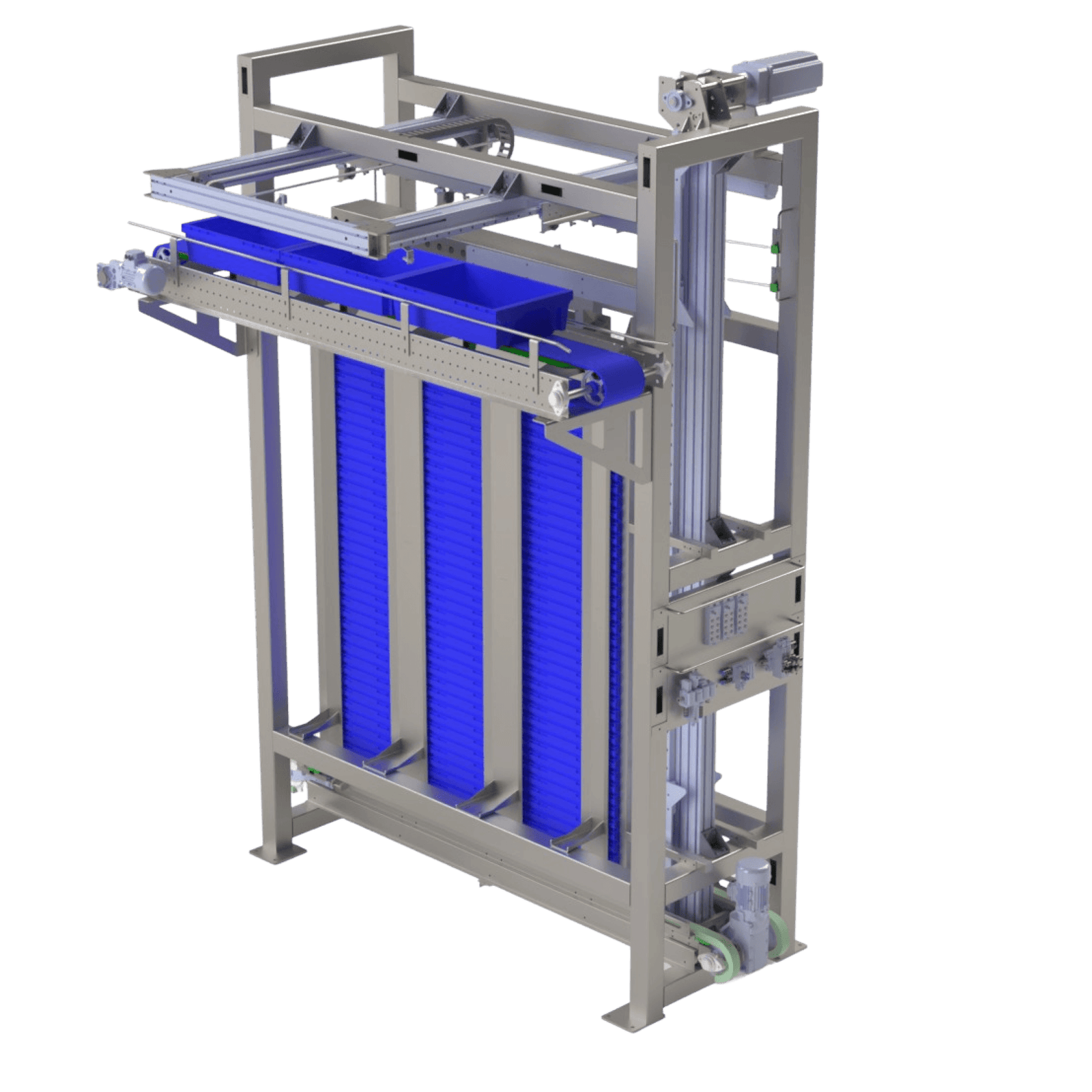

Top Destacker

The DESTACKER TOP automatically unloads plastic crates from stacks into a single row and transfers them onto an elevated conveyor for internal factory logistics. Each machine is individually engineered to the maximum stack height specified for the project.

Configurable to operate with one to five stacks simultaneously, depending on required capacity

Individual gripping mechanisms handle stacks of varying heights without mechanical adjustments

Servo-driven axes with integrated protection against jamming or abnormal resistance

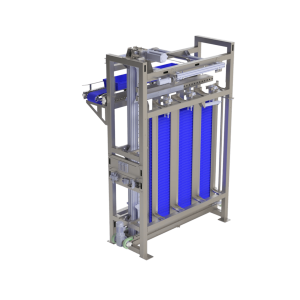

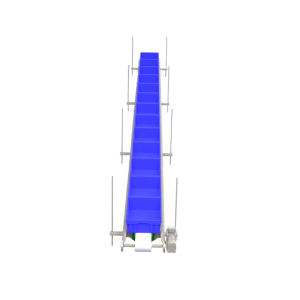

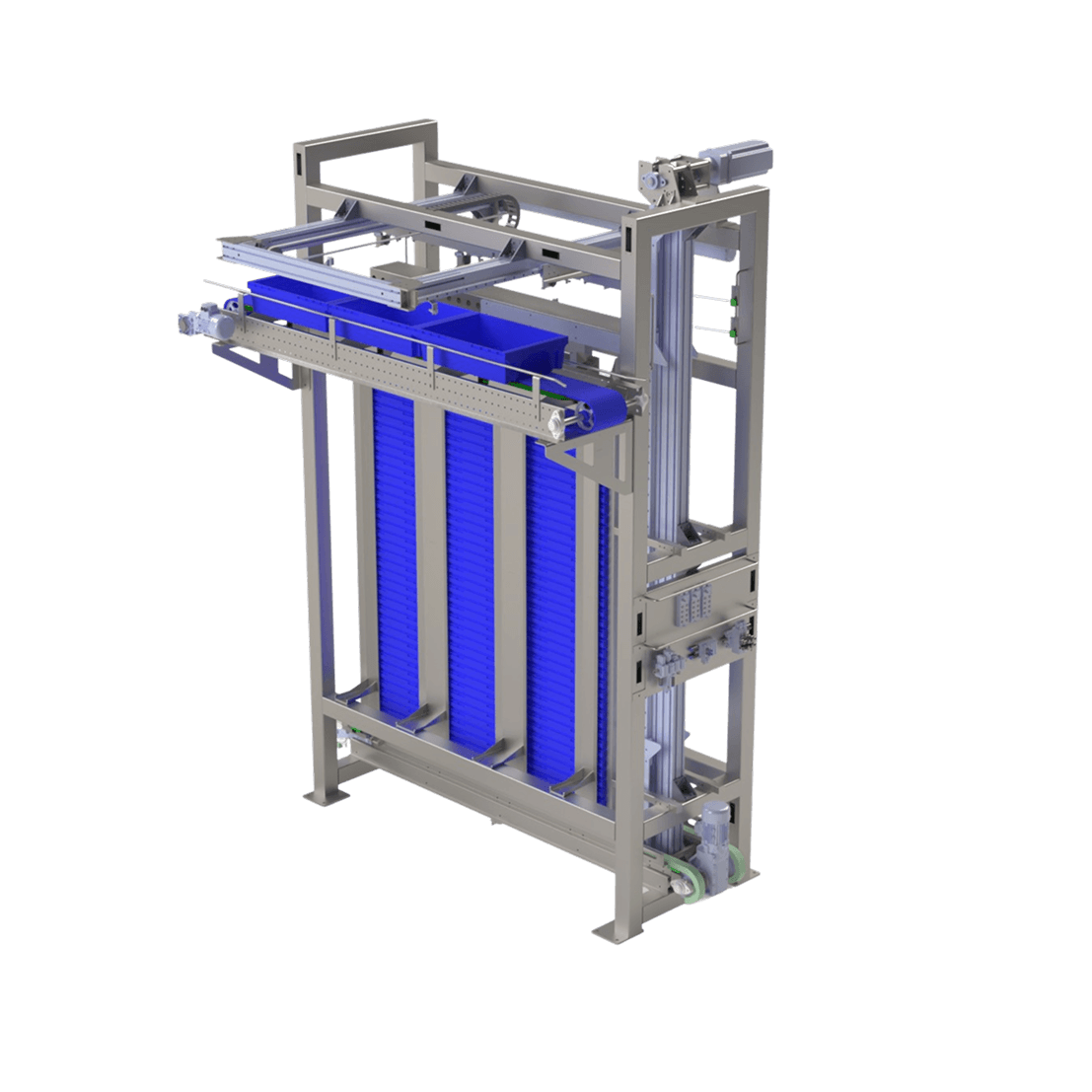

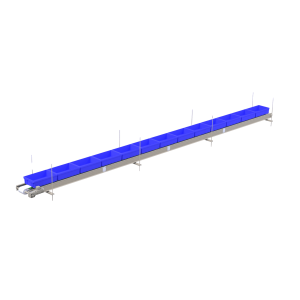

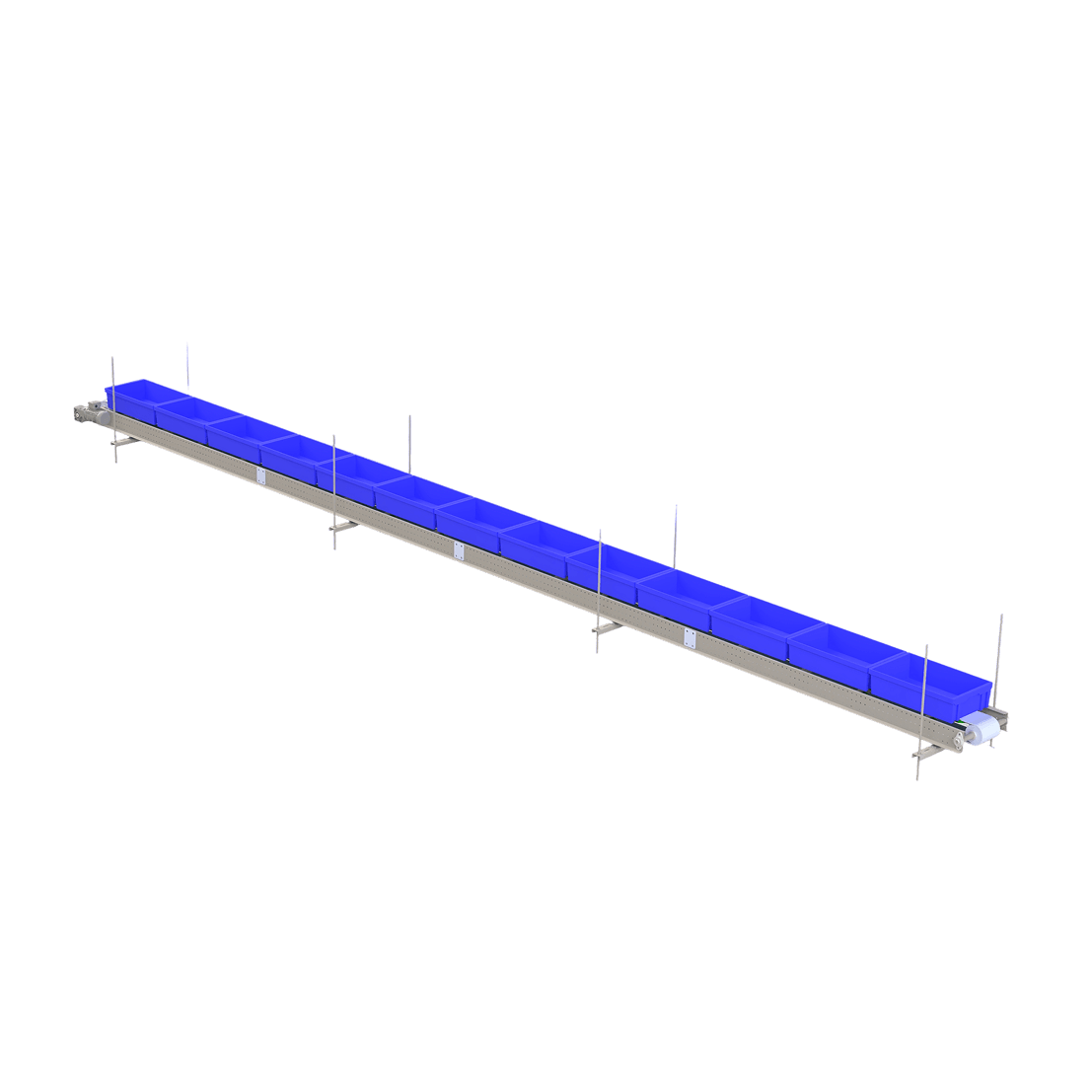

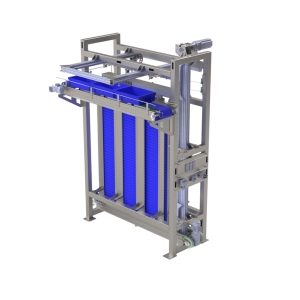

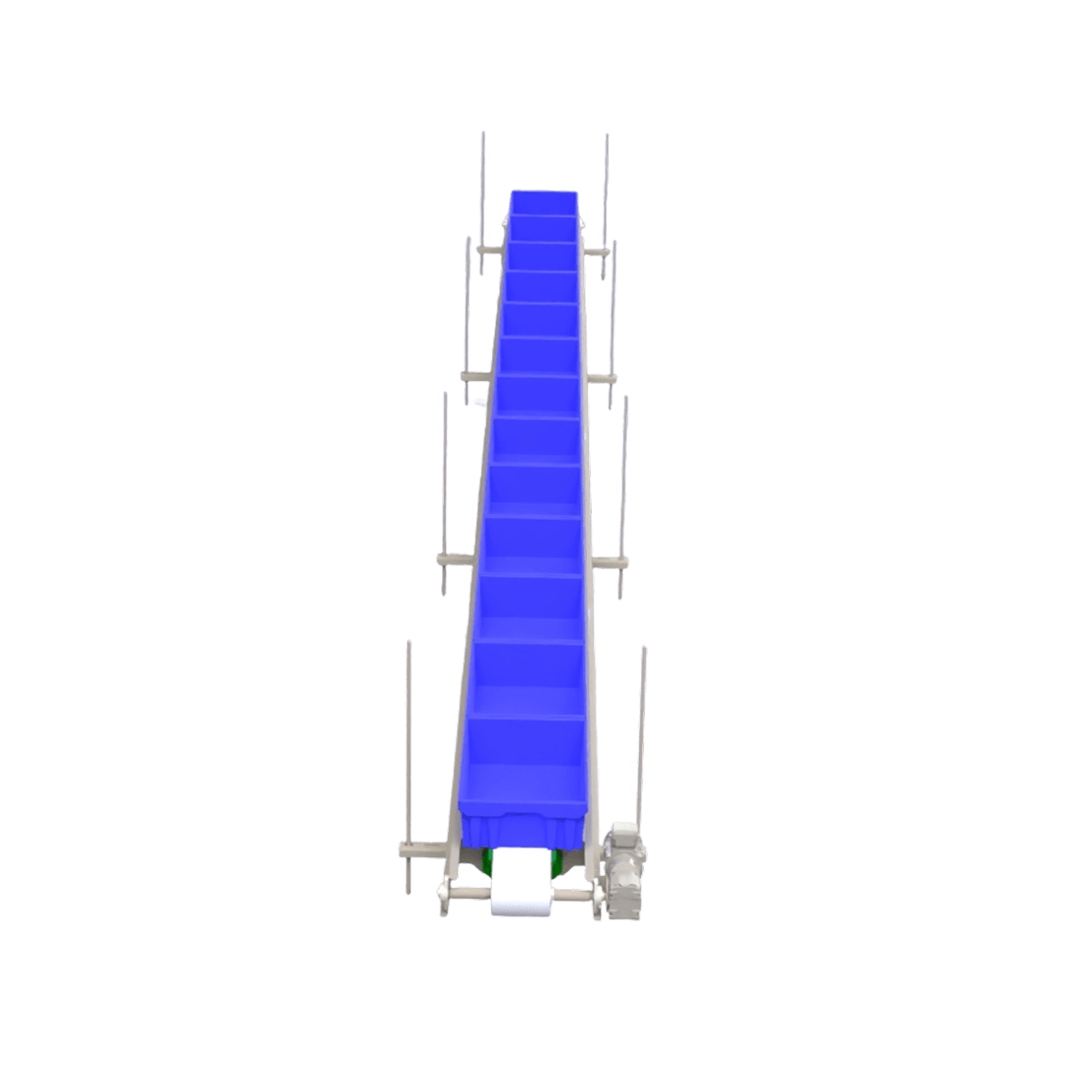

Top Stacker

The STACKER TOP automatically receives individual plastic crates from an elevated conveyor and builds stable, accurately aligned stacks for internal logistics or palletizing. Once the predefined stack height is reached, the completed stack is automatically discharged onto the outfeed conveyor.

Configurable with one to five stacking positions to match required production capacity

Servo-controlled lifting and positioning for precise crate placement and perfectly aligned stacks

Handles different stack heights and production rates without mechanical adjustments, with integrated jam protection

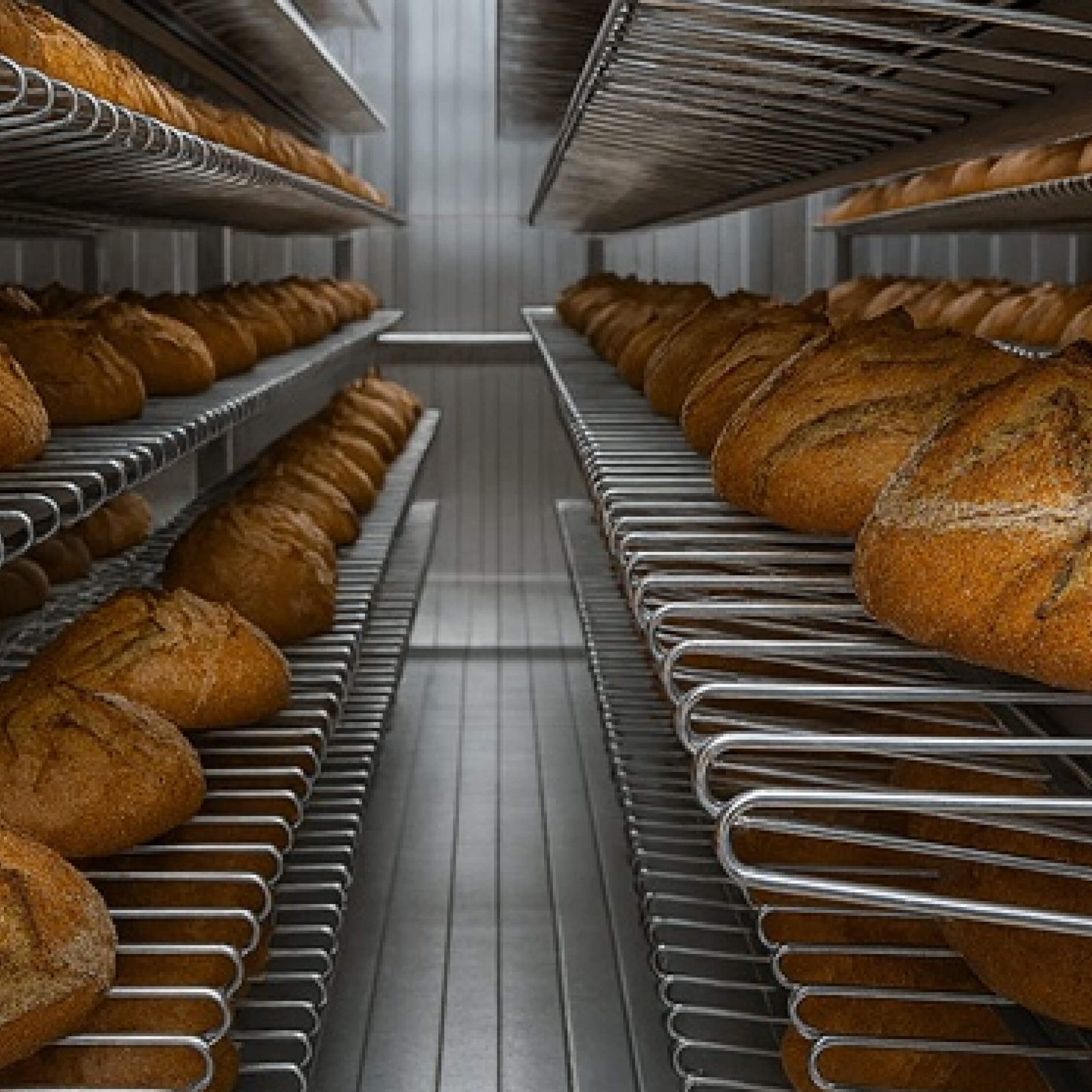

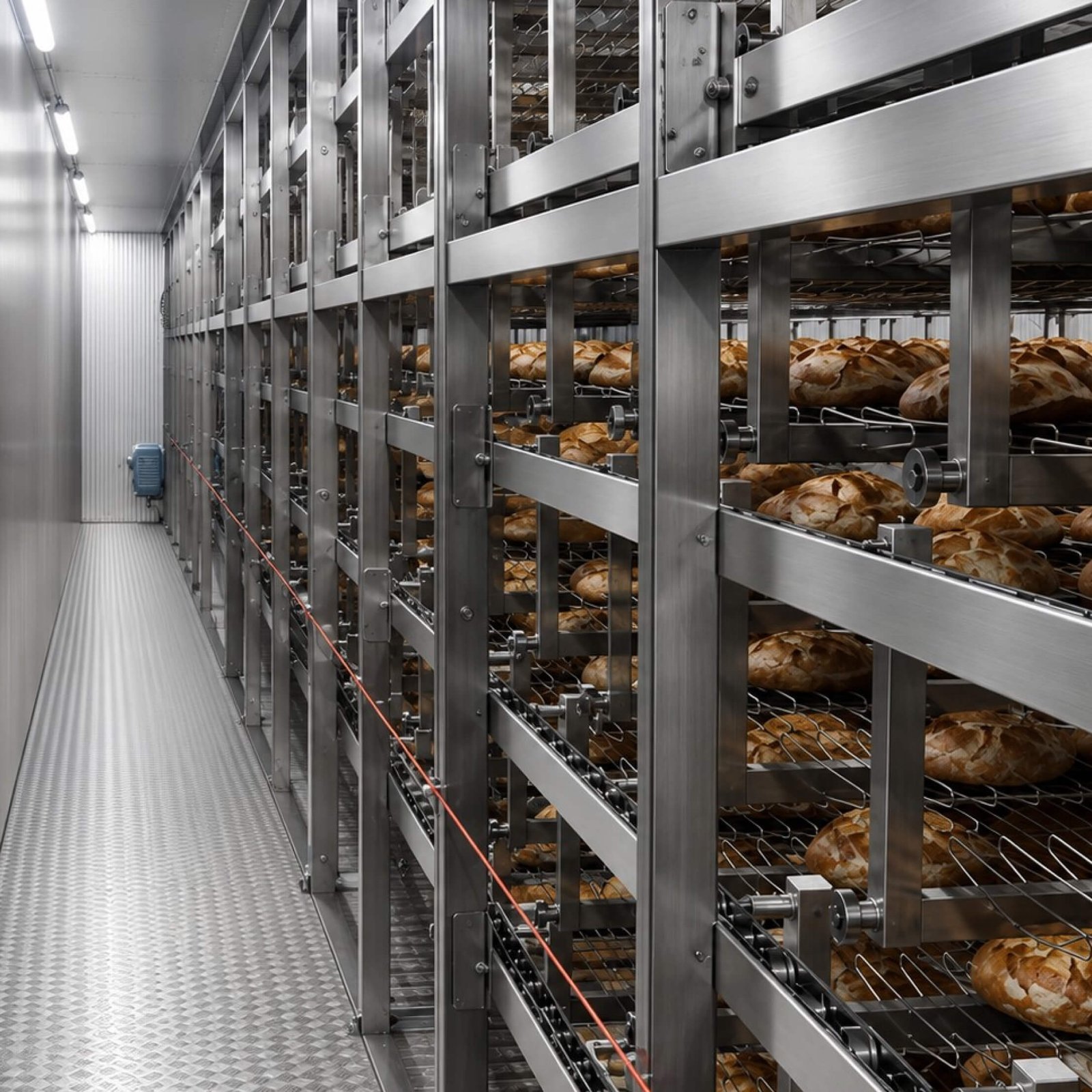

Swing Coolers

The Swing Cooler is a hygienic, energy-efficient system providing controlled and uniform cooling of bread after baking. Consistent airflow, temperature, and humidity preserve product quality, while automated operation and stainless-steel construction ensure reliable, high-hygiene performance.

PID-controlled cooling with filtered air circulation and positive pressure for hygienic operation

Automatic UVC tray disinfection during the return cycle and automatic belt tracking for stable operation

Double-speed overtaking loading conveyor and gentle swing-tray positioning for smooth product transfer from the oven

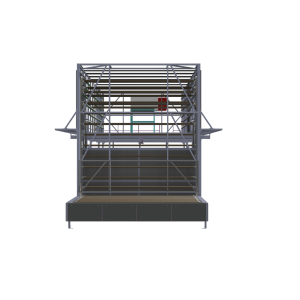

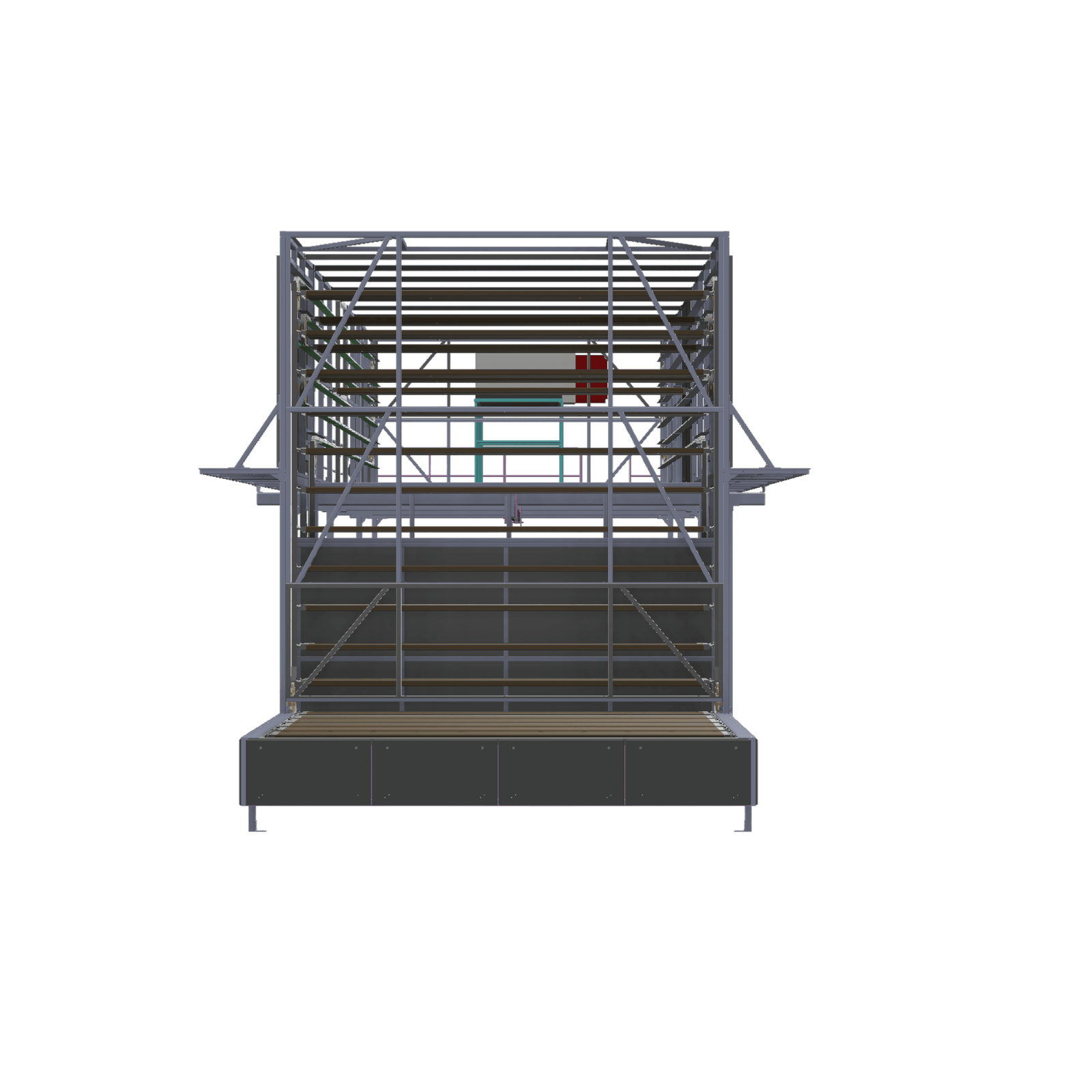

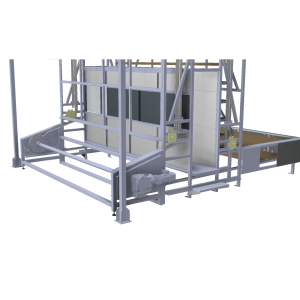

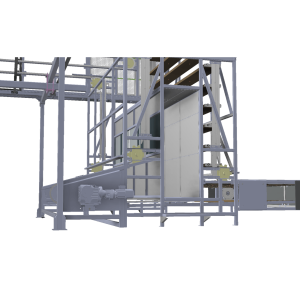

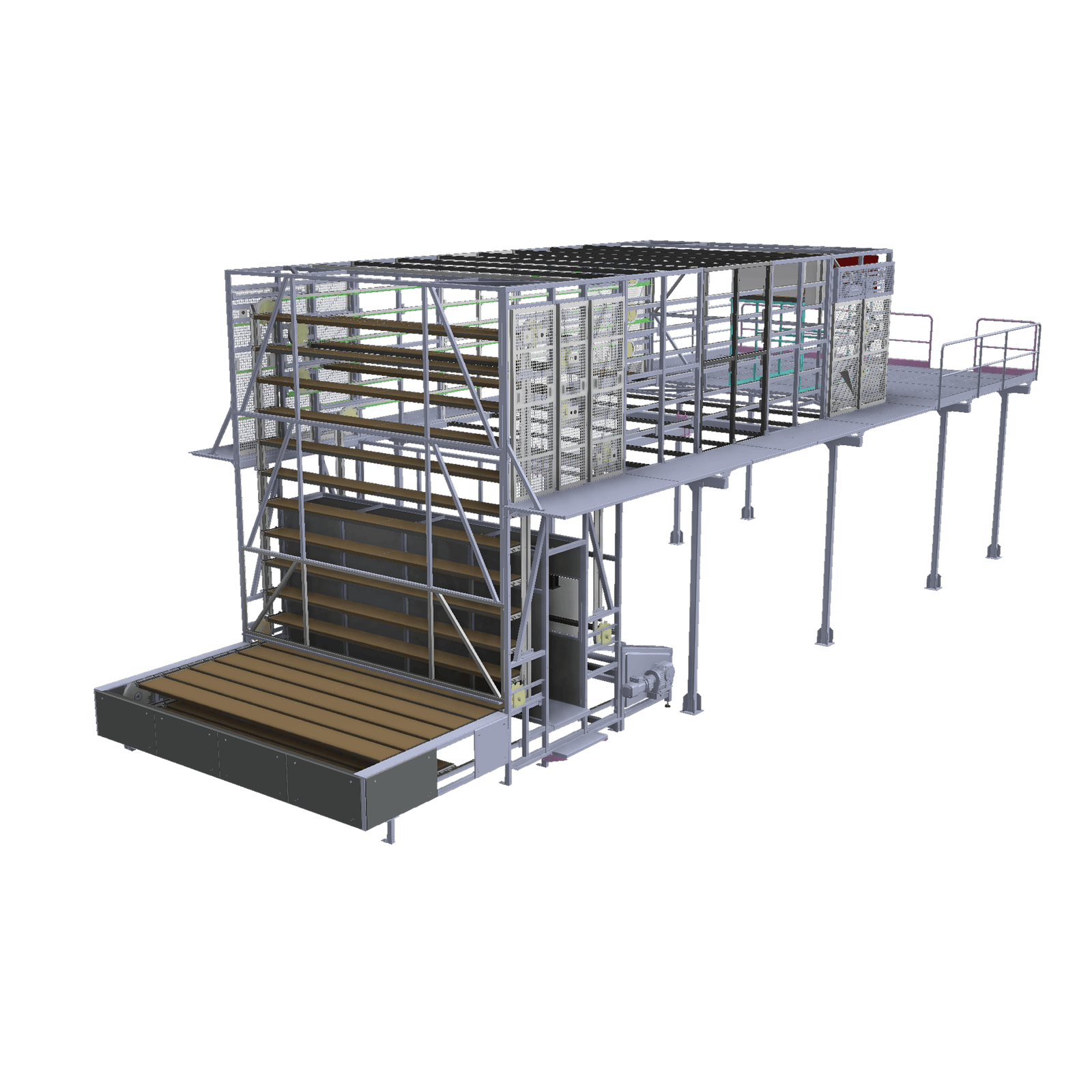

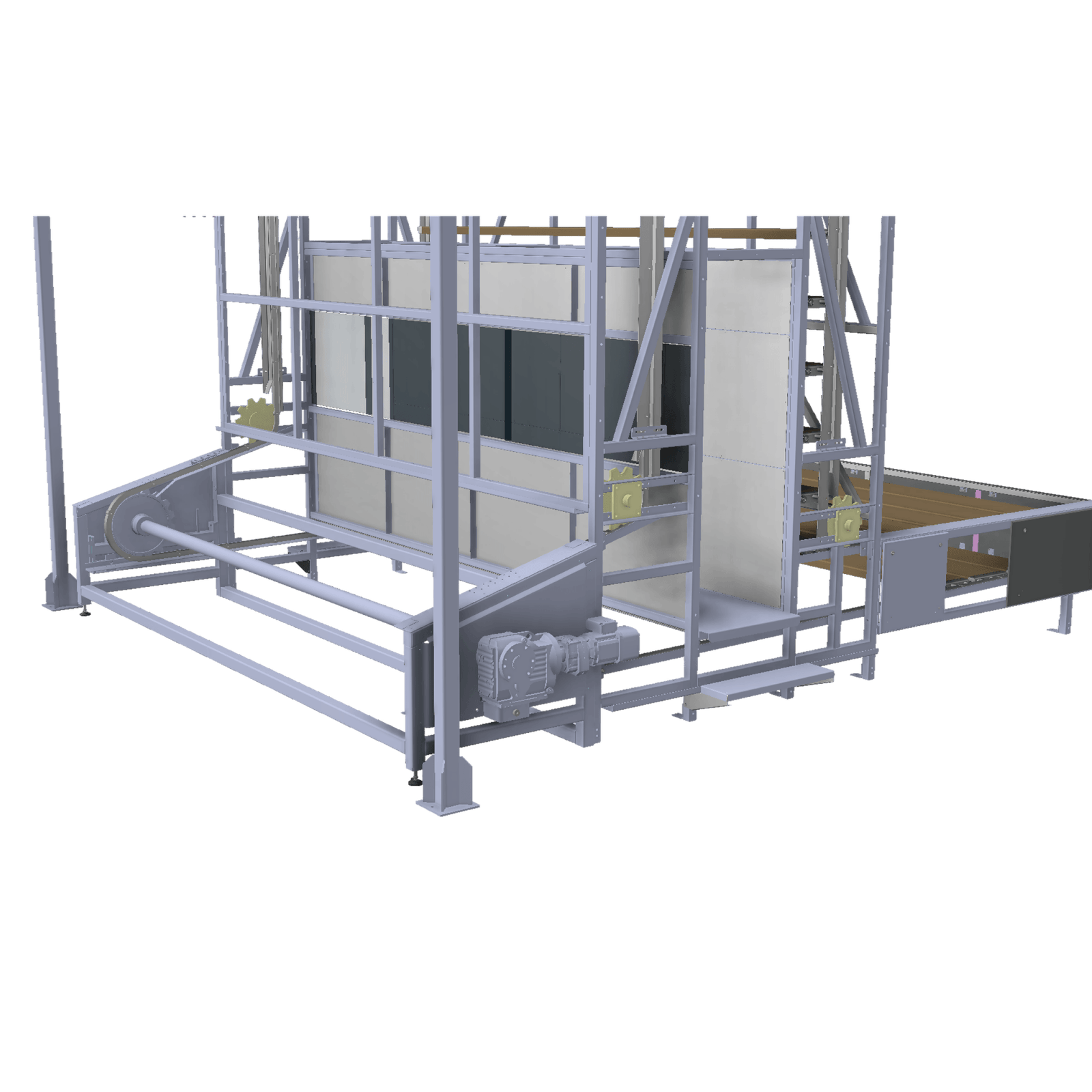

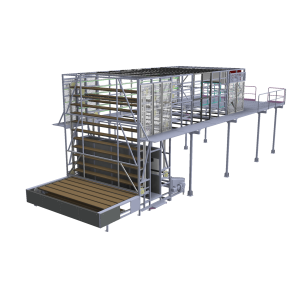

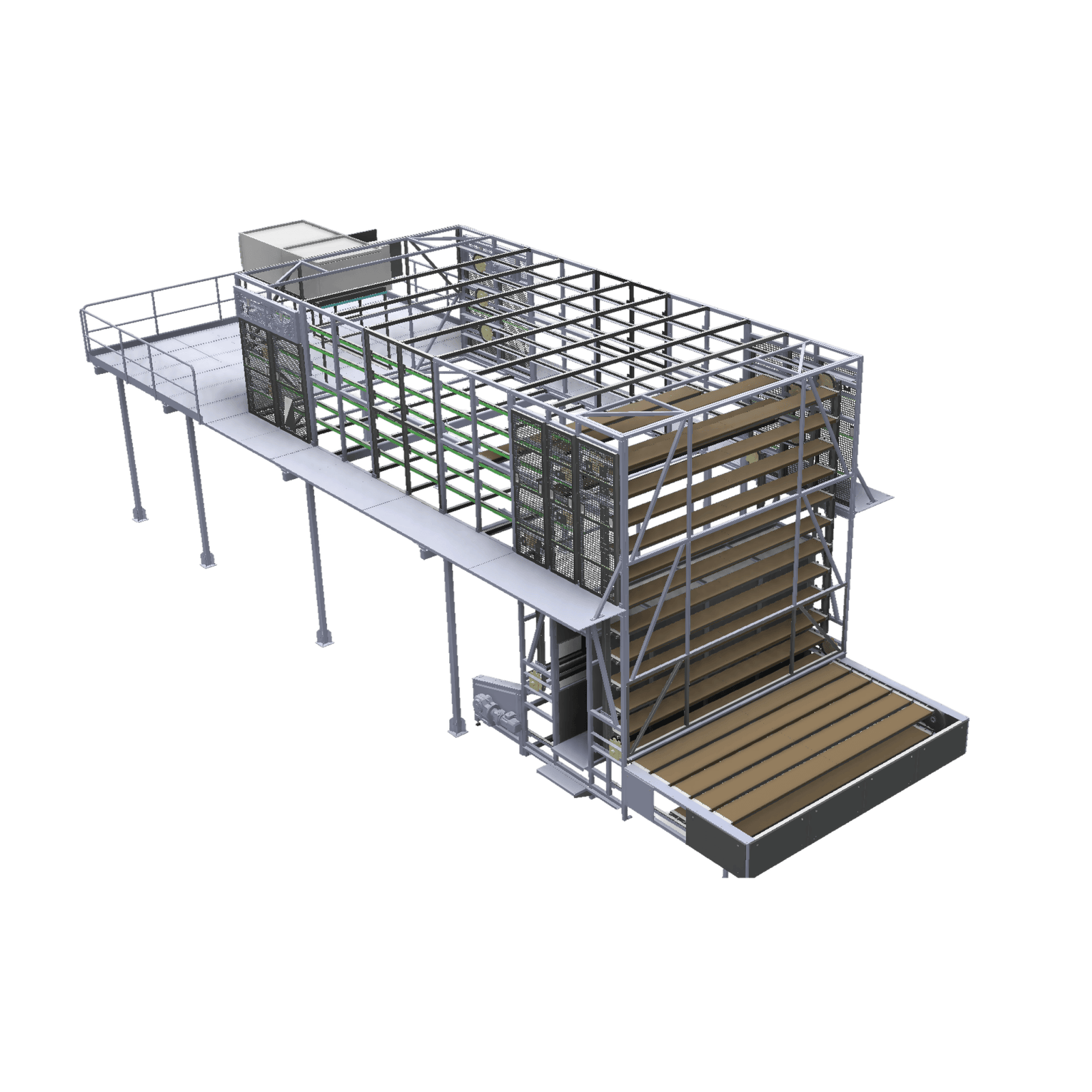

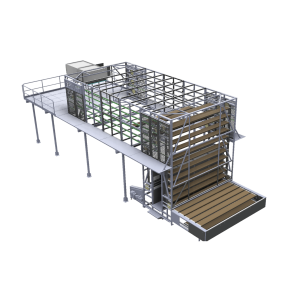

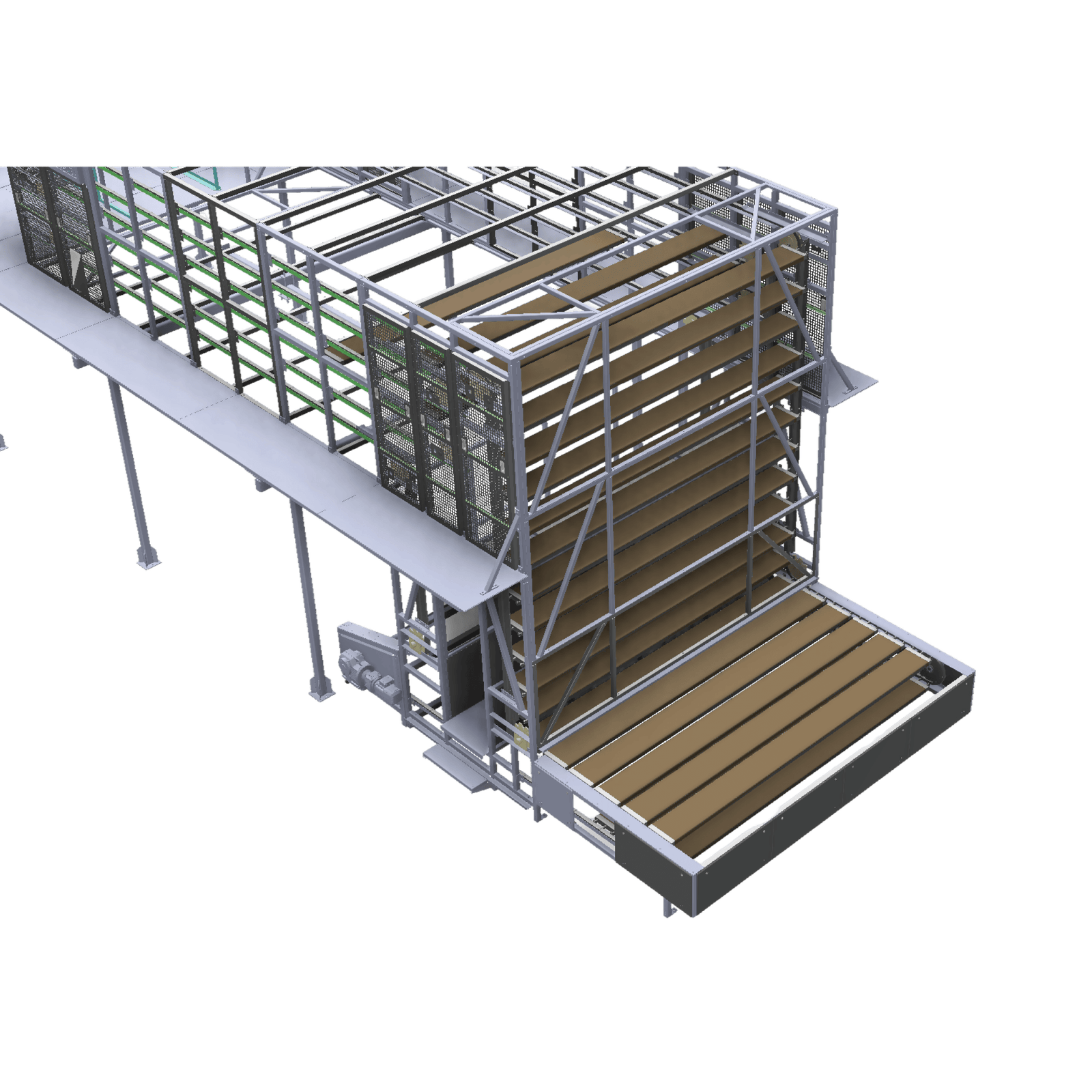

Swing Proofers

The Clima Swing Proofer is a high-performance proofing system providing precise temperature and humidity control for consistent dough development and excellent product quality. Full stainless-steel construction, integrated textile drying and UV disinfection, and gentle product handling deliver stable, repeatable results with minimal maintenance.

Optimized proofing climate with filtered air circulation and Spirax Sarco steam humidification

Gentle double-belt charging with retracting belt technology and synchronized, encoder-controlled transfer to the tunnel oven

Integrated textile drying and UV disinfection system, extending cloth lifetime and maintaining high hygiene standards

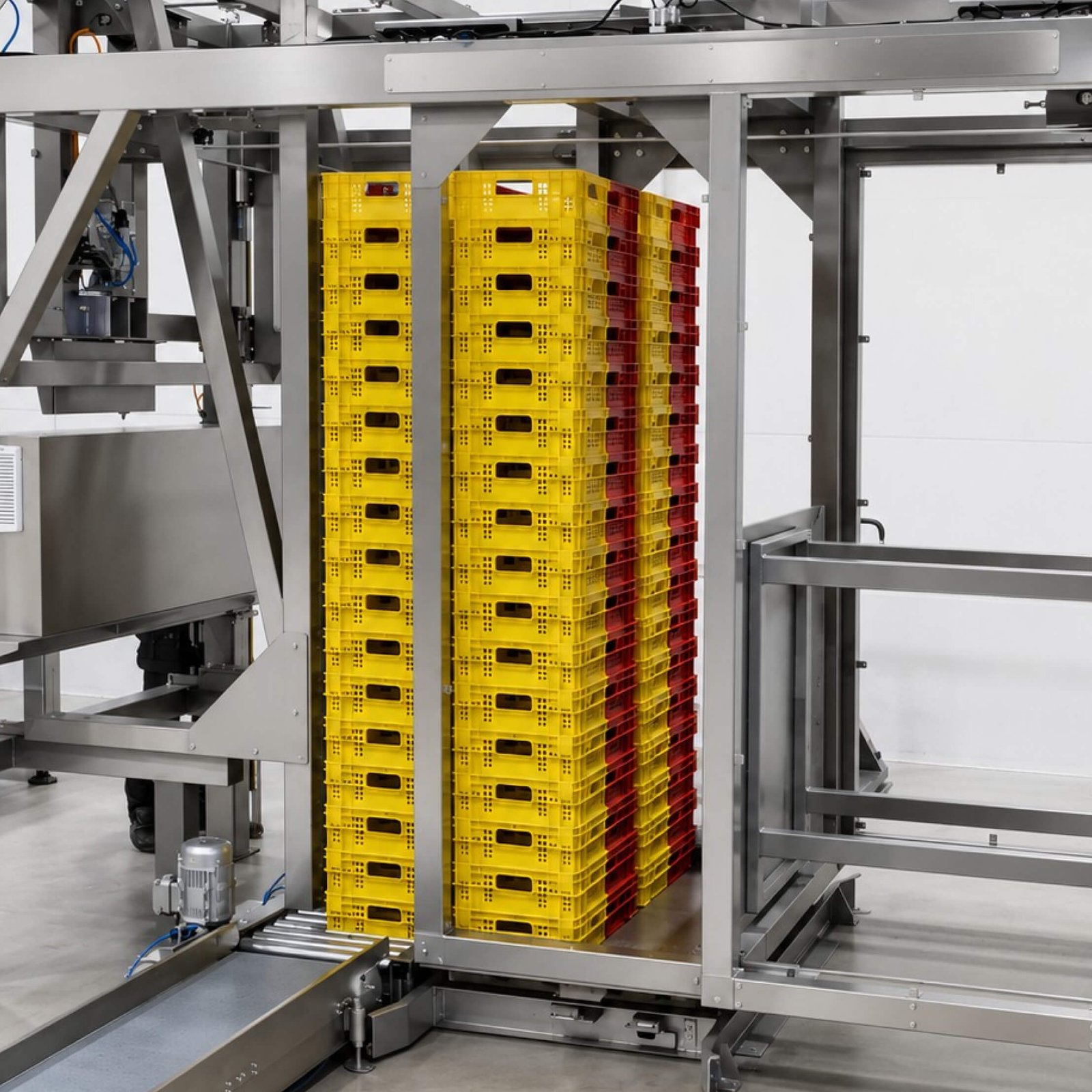

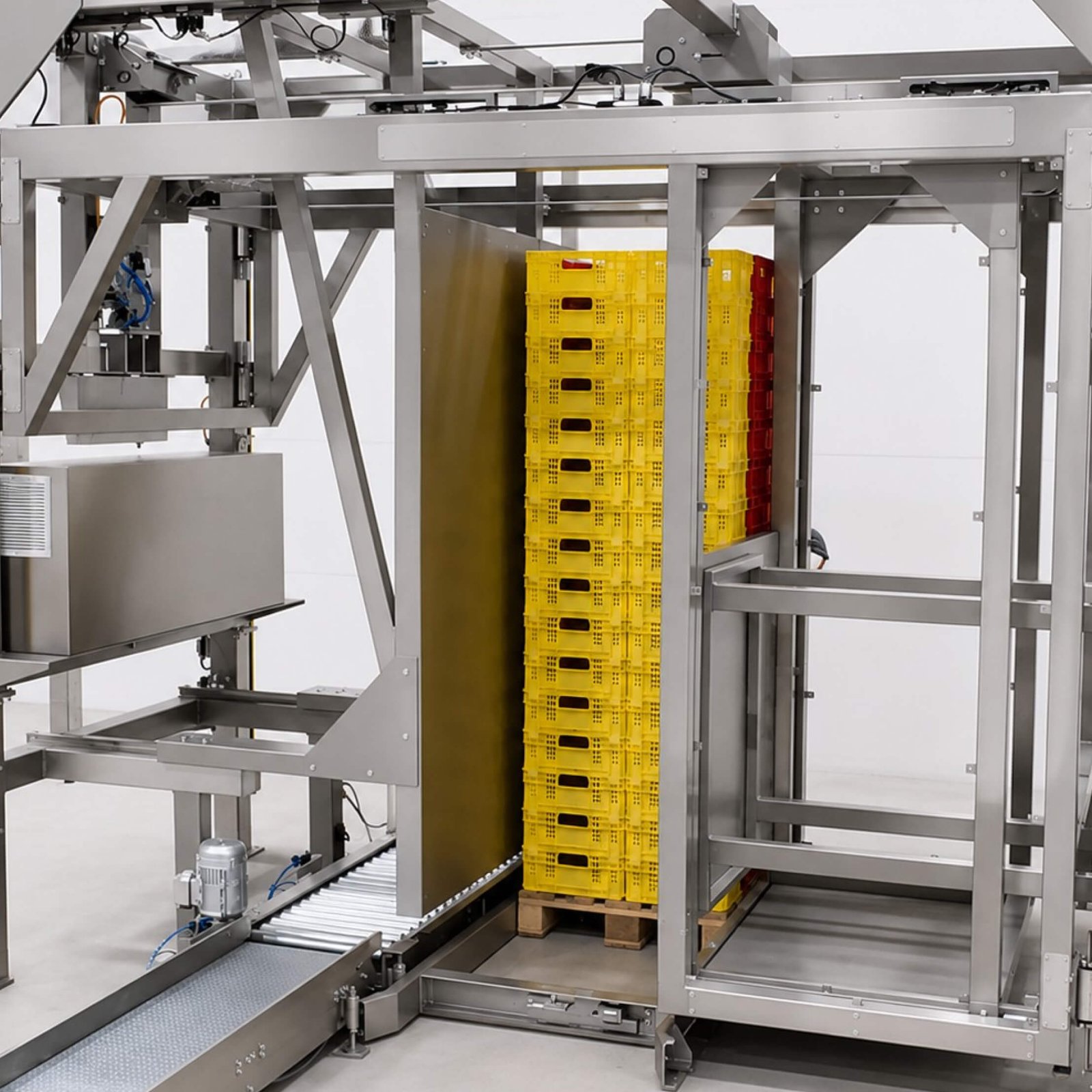

Retracting plate Palletizer

The Retracting Plate Palletizer automatically loads stacked plastic crates onto pallets with precise positioning and stable handling throughout the process. Crate stacks arrive automatically from the crate stacker, while empty wooden pallets can be supplied via conveyor from the pallet destacker, creating a fully automated loading process.

Fully automated pallet loading with precise crate stack positioning

Automatic infeed of crate stacks and empty pallets for continuous, hands-free operation

Reduces manual handling and ensures reliable operation in high-capacity bakery and food-processing lines

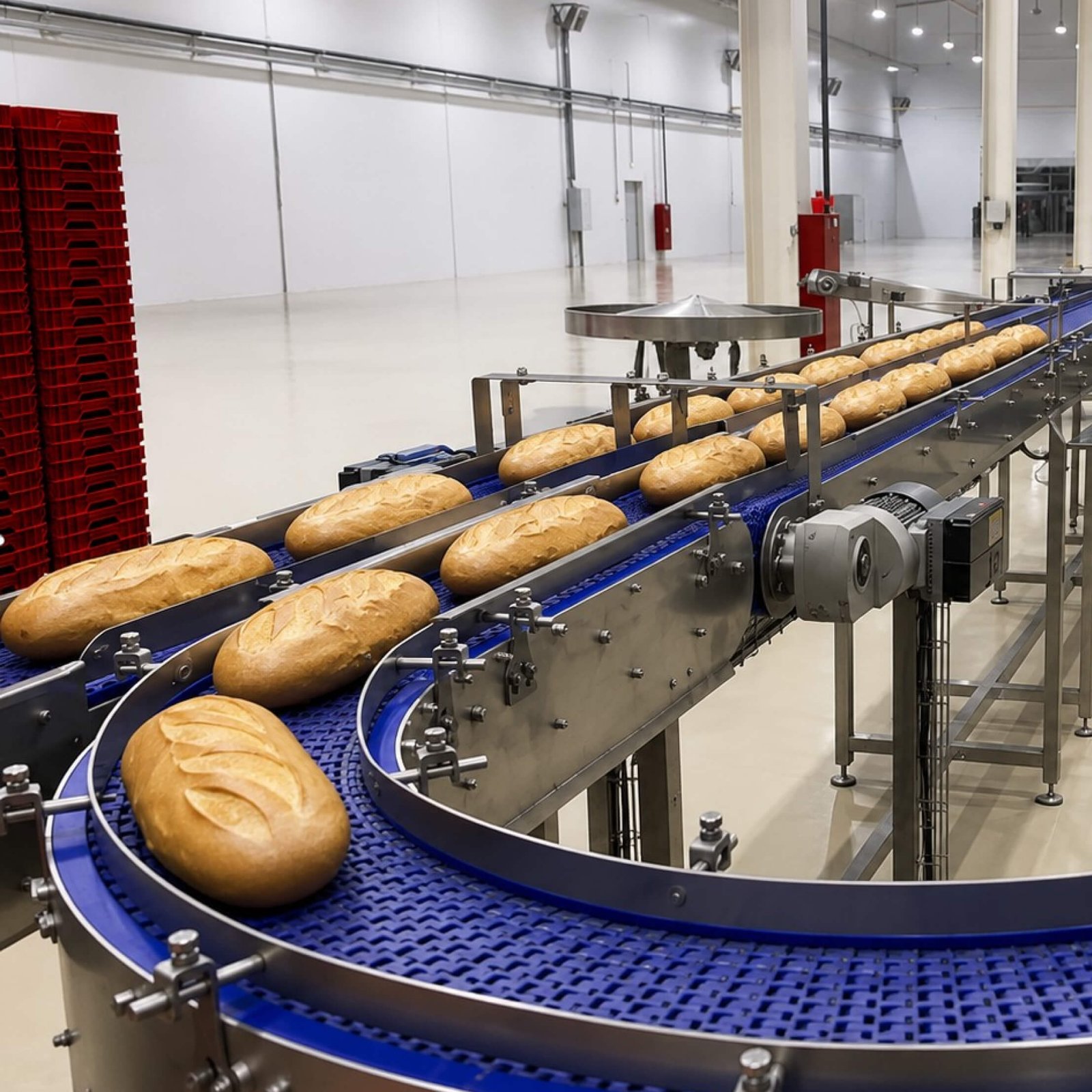

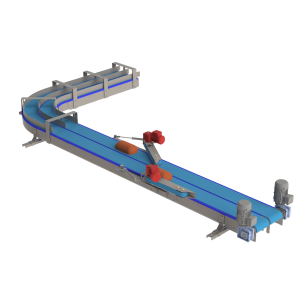

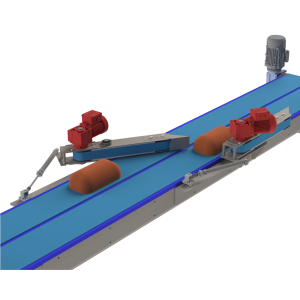

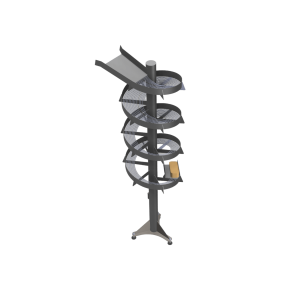

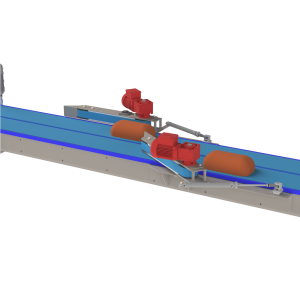

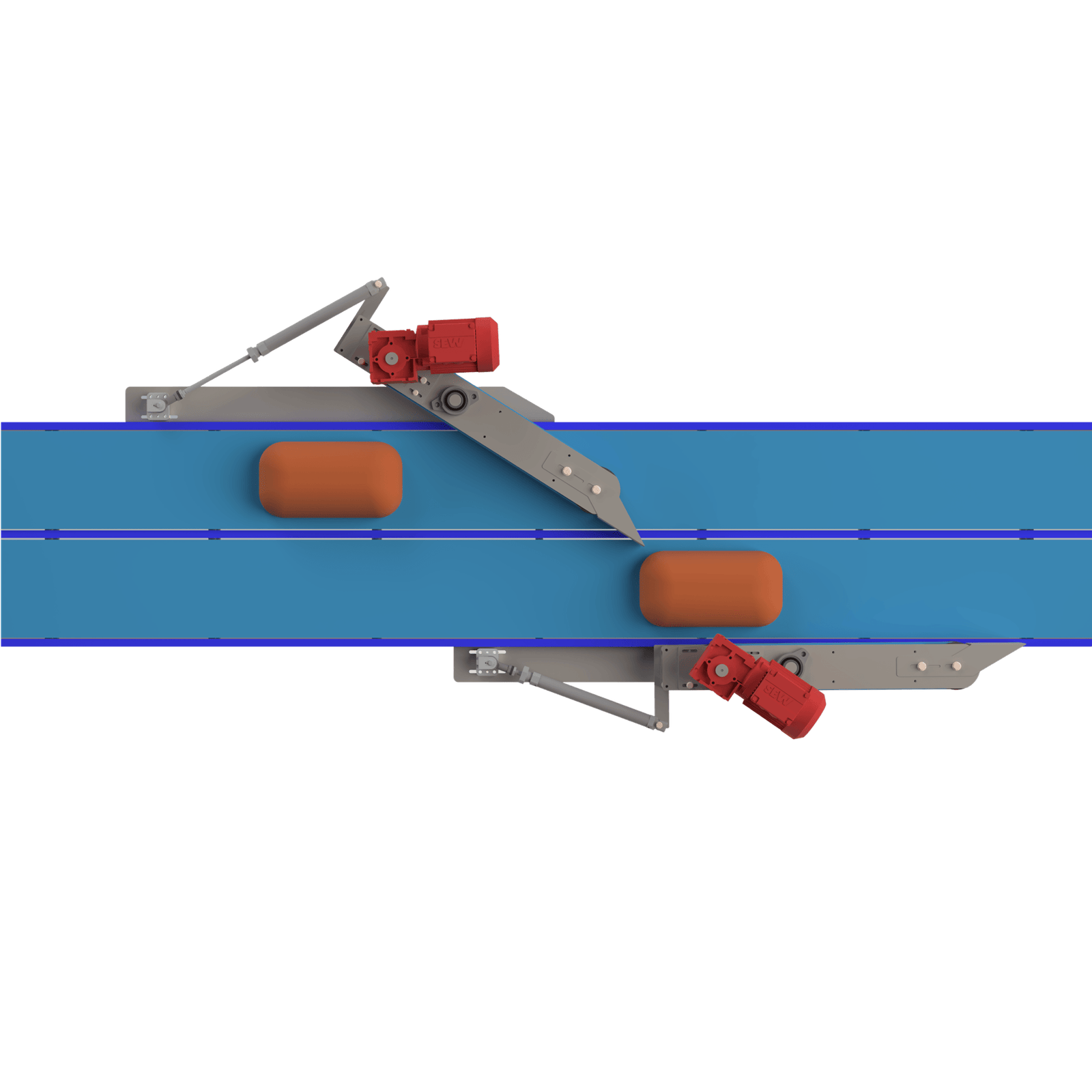

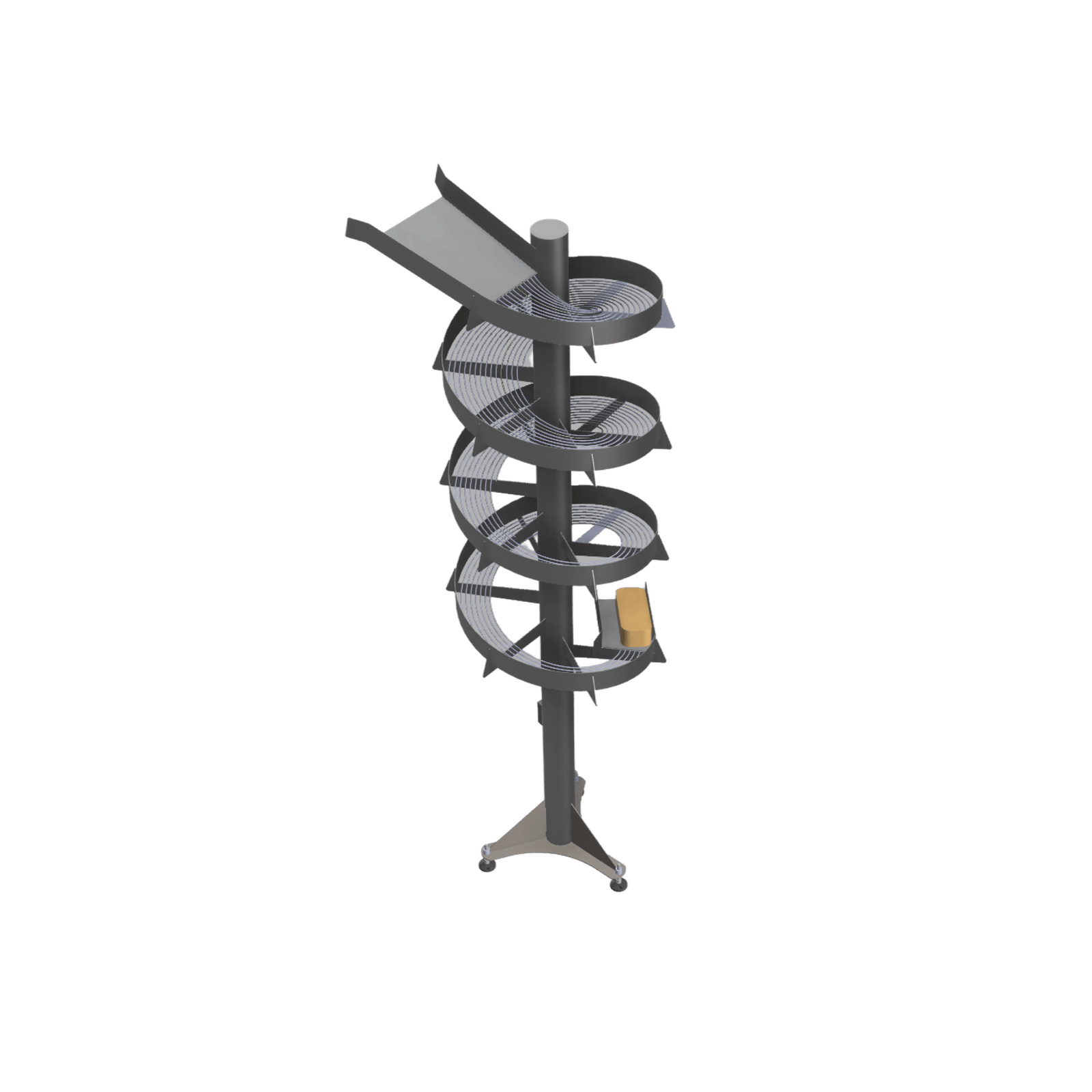

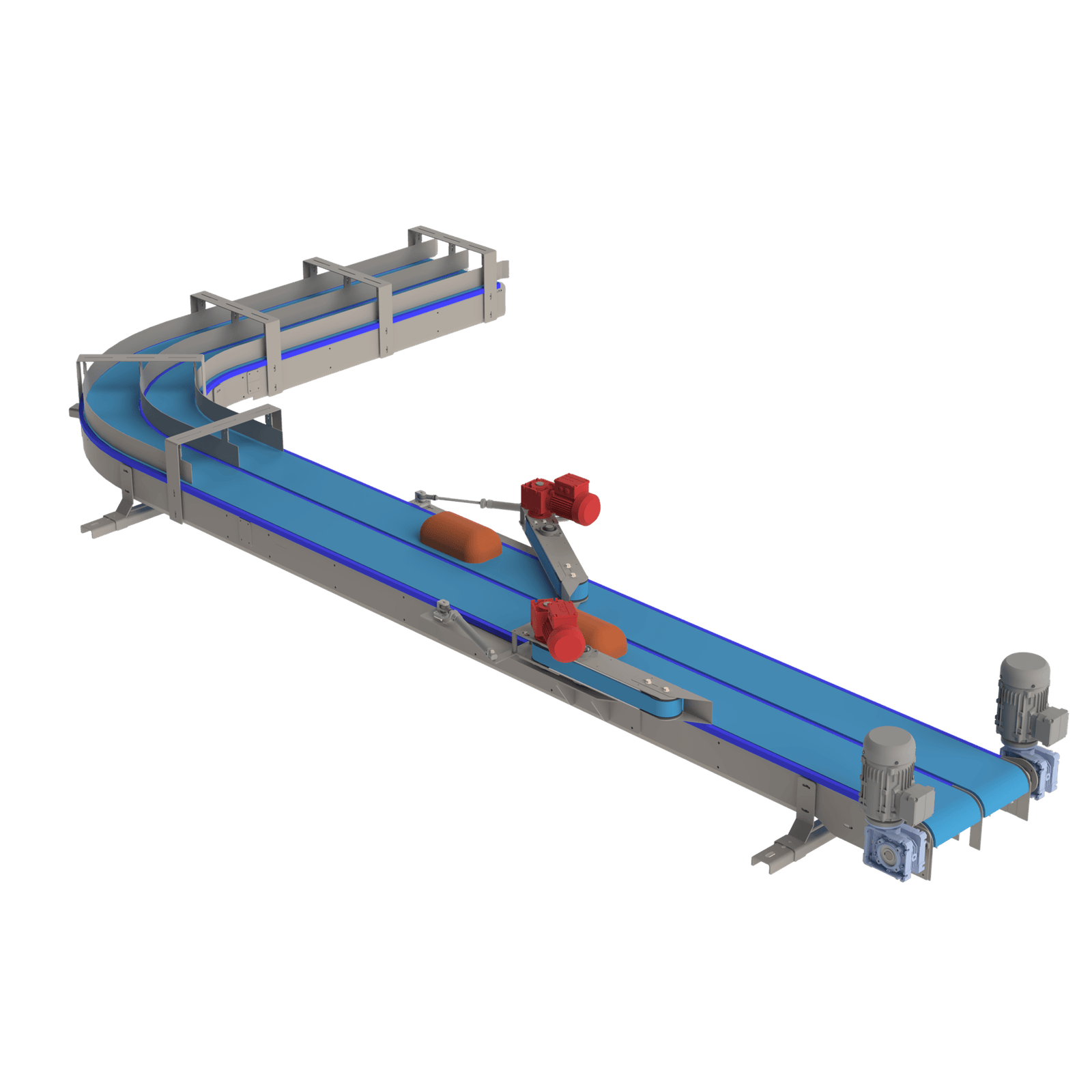

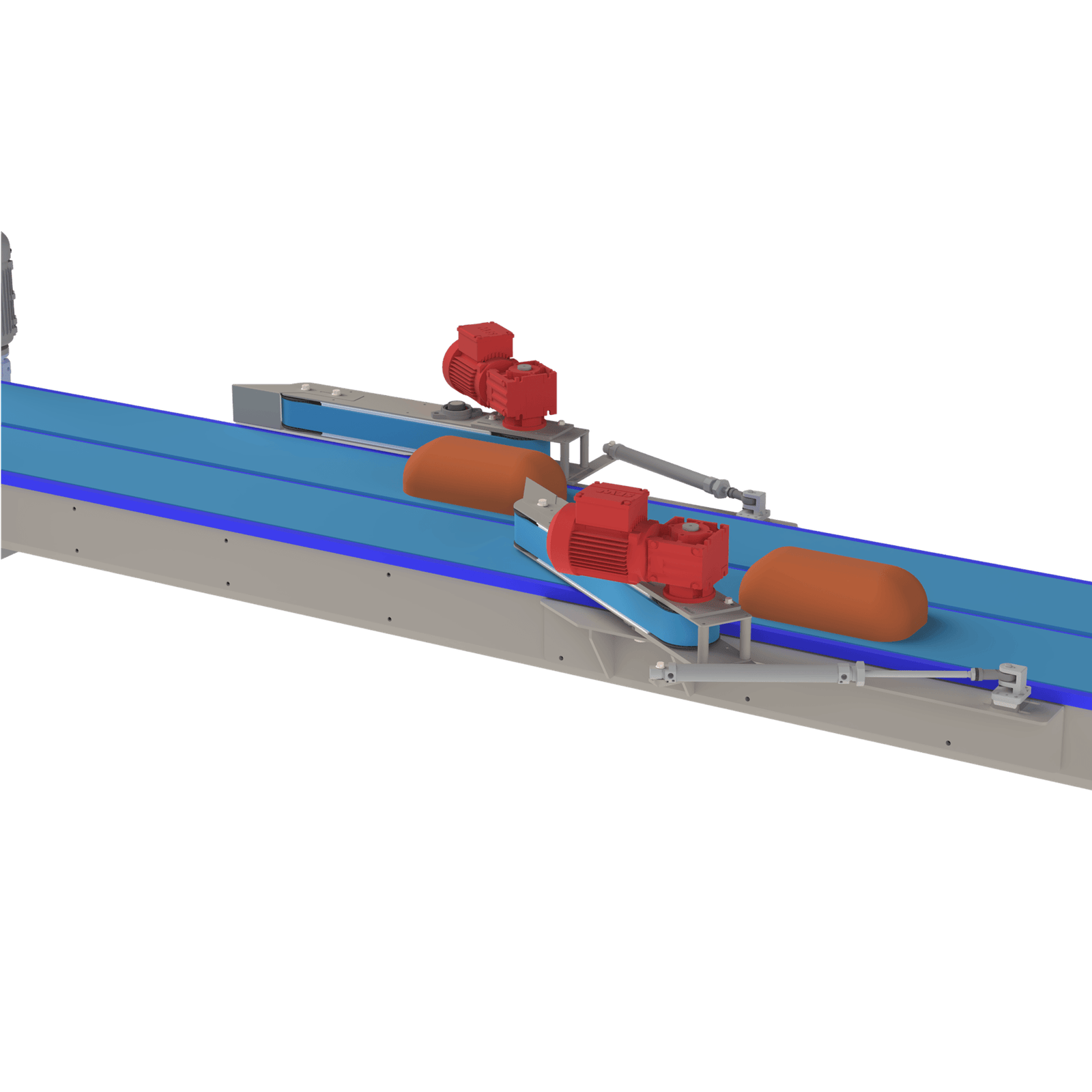

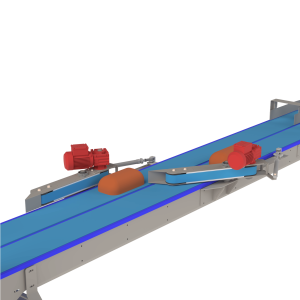

Product conveyors

ENDLINE product conveyors are built from AISI 304 stainless steel with a matte glass-bead blasted finish, providing a hygienic, corrosion-resistant surface fully compliant with food industry requirements. All precision components are CNC-machined for accurate tolerances, stable operation, and long service life.

Premium conveyor belts from Intralox, Habasit, or Ammeraal, matched to product characteristics

SKF (or equivalent premium) bearings for extended service life and minimal maintenance

Bevel and helical gearboxes only — no worm gearboxes — for higher efficiency, no overheating, and precise torque transmission

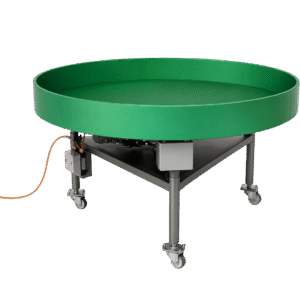

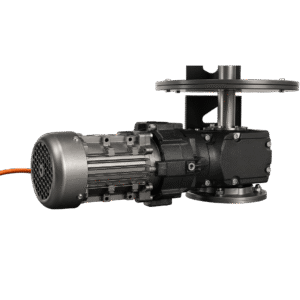

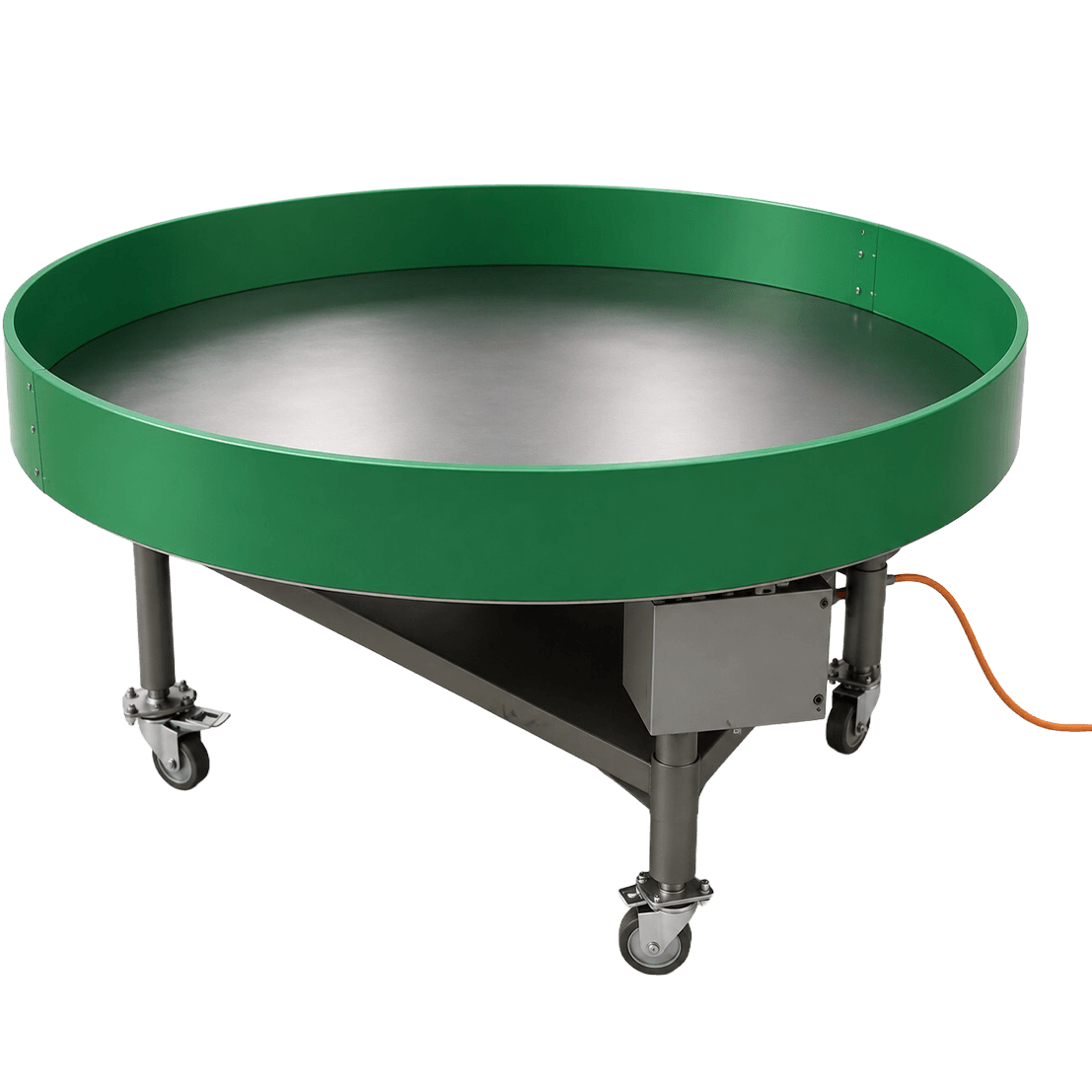

Turntables

The Turn Table is designed for smooth product accumulation, buffering, and manual handling within production and packaging lines. Its robust stainless-steel construction and low-maintenance drive ensure reliable operation in demanding food processing environments.

Customizable diameter and height to match specific production requirements

Robust stainless-steel construction for demanding food processing environments

Seamless integration into existing conveyor systems with a low-maintenance drive
